Cmod S7: Breadboardable Spartan-7 FPGA Module

The Cmod, or Carrier Module, family of products is designed to offer quick, simple, and flexible integration of an FPGA into circuit design, prototyping, and learning/hobby projects.
The Digilent Cmod S7 is a small, 48-pin DIP form factor board, populated with 36 pins, built around a AMD® Spartan®-7 FPGA that brings FPGA power and prototyping to a solderless breadboard.
The board includes a Quad-SPI flash for programming, as well as a USB-JTAG programming circuit and USB-UART bridge. The Cmod S7 also features a clock source, Pmod port, and onboard I/O with LEDs and pushbuttons. There are 32 FPGA I/O signals, 2 FPGA analog input signals, an external power input rail, and ground that are routed to 100-mil-spaced through-hole pins, making the Cmod S7 compatible with solderless breadboards. This form factor makes the Cmod S7 a great option for flexible and affordable prototyping, or learning FPGA and digital logic circuits. At just .7" by 3.05", it can also be loaded in a standard socket and used in embedded systems.
The Spartan-7 FPGA on the Cmod S7 fits performance into a small form-factor packaging. With the MicroBlaze Soft Processor Core from AMD, you can create embedded applications with a variety of peripherals, memory, and interfaces.

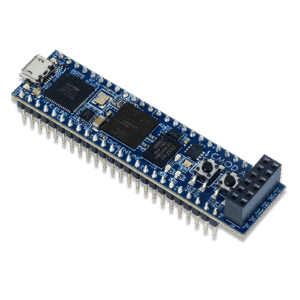

If your design requires transceiver lines or more FPGA resources, we recommend the higher-performance Cmod A7, featuring an Artix-7 FPGA.
Guides and demos are available to help users get started quickly with the Cmod S7. These can be found through the Support Materials tab.
To view our EMC Disclaimer, click here.

AMD Spartan-7 FPGA (XC7S25-1CSGA225C)

3,650 slices containing four 6-input LUTs and 8 flip-flops

1,620 Kbits of fast block RAM

Three clock management tile, each with a phase-locked loop and mixed-mode clock manager

80 DSP slices

Internal clock speeds exceeding 450 MHz

On-chip analog-to-digital converter (XADC)

Programmable over JTAG and Quad-SPI Flash

Memory

4 MB Quad-SPI Flash

Power

Powered from USB or 5V external supply connected to DIP pin 24 (micro USB cable NOT included)

USB

USB-JTAG programming circuitry

USB-UART bridge

Push-buttons and LEDs

2 Buttons

4 LEDs

1 RGB LED

Expansion Connectors

1 Pmod connector

8 total FPGA I/O

48-pin DIP form-factor headers

36 populated pins

32 total FPGA I/O
2 Single-ended 0-3.3V analog inputs to XADC

Product Compliance:

HTC: 8473301180
ECCN: EAR99

Cmod S7 Module
Custom Digilent cardboard box with protective foam

To create and modify designs for your Cmod S7, you can use AMD's Vivado Design Suite. Vivado is a software designed for the synthesis and analysis of HDL designs. Both variants of the Cmod S7 are supported by the free WebPACK edition of the Vivado Design Suite.
If you are using the MicroBlaze Soft Processor Core from AMD, you can make use of the Vitis Core Development Kit or AMD Software Development Kit to create embedded applications for your Cmod S7.
Note: AMD software tools are not available for download in some countries. Prior to purchasing the Cmod S7, please check the supporting software's availability, as it is required for the board's use.

Quickly find what you need to get started and reduce mean time to blink.
All product support including documentation, projects, and the Digilent Forum can be accessed through the product resource center.
Resource Center
Quick Links
Reference ManualSchematic
