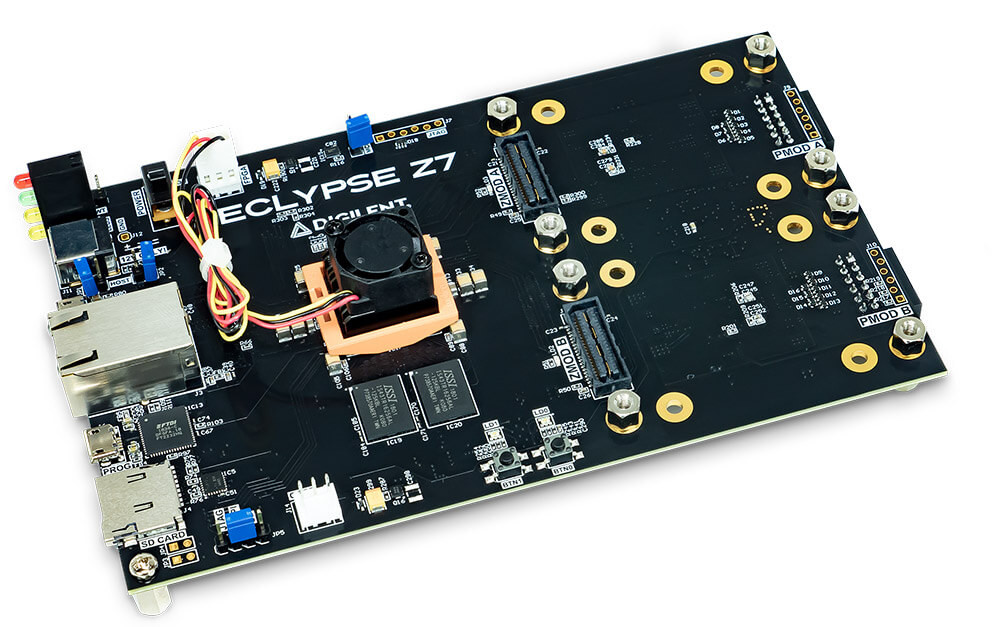

Eclypse Z7: Zynq-7000 SoC Development Board for Modular Instrumentation

The Eclypse Z7 is specifically designed to enable the rapid prototyping and development of embedded measurement systems. Featuring high-speed Zmod ports for modular expansion and a AMD Zynq®-7020 SoC, the Eclypse Z7 is fast and flexible, reducing the time it takes for engineers and researchers to develop innovative and powerful new high-speed instrumentation, control, and measurement systems for edge-computing, medical, and communications applications.
Zmod Expansion
Zmod is Digilent’s expansion solution using the open-source SYZYGY standard from Opal Kelly. Faster than the Pmod Standard and more compact and cost-effective than FMC, Zmods improve the customizability options for high-speed I/O. Plug in your application specific Zmods and get up and running in hours or days, instead of weeks or months. Take a look at the Features tab for a list of compatible Zmods.
To view our EMC Disclaimer, click here.

Features

 Zynq-7000 APSoC

Chip number: XC7Z020-1CLG484C
667 MHz dual-core Cortex-A9 processor
DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C
Programmable from JTAG, Quad-SPI flash, and microSD card
Programmable logic equivalent to Artix-7 FPGA

 Memory

1 GiB DDR3L with 32-bit bus @ 1066 MT/s
16 MB Quad-SPI Flash with a factory-programmed 48-bit globally unique EUI-48/64™ compatible identifier
microSD card slot

 Power

Powered from external 12V 5A supply
Platform MCU for configuration of adjustable power supplies and temperature management

 USB and Ethernet

Gigabit Ethernet PHY
USB-JTAG programming circuitry
USB-UART bridge
USB micro AB port with USB 2.0 PHY with Host/Device/OTG capabilities

 Zmod Ports

2 ports following the SYZYGY Standard interface specification
Compatible with a variety of SYZYGY pods, allowing for a wide variety of applications
Dedicated differential clocks for input and output
8 differential I/Os per port
16 single-ended I/Os per port
DNA interfaces connected to Platform MCU allowing for various auto-negotiated power supply configurations
Supports the Digilent Zmod AWG 1411, Scope 1410, Scope 1210, and Scope 1010, Zmod Digitizer, Zmod SDR

 Pmod Ports

2 twelve-pin ports for a total of 16 FPGA-connected I/Os
High speed voltage translation and protection circuitry

 User GPIO

2 push-buttons
2 RGB LEDs

Eclypse Z7 Development Board
FPGA fan
USB A to Micro B programming cable
USB A to Micro A cable
12V 5A power supply
Digilent custom packaging
Eight 5 mm standoffs

Additional contents depend on the option choice:

2-channel Oscilloscope Bundle: Adding one Zmod Scope 1410-105 and one Zmod AWG 1411
4-channel Oscilloscope Bundle: Adding two Zmod Scopes (Zmod Scope 1410-105)
SDR Bundle: (Add Zmod SDR 1450-122 and Zmod AWG 1411)
Digitizer Bundle: (Add two Zmod Digitizer 1430-125s)

Development Environments
To create and modify designs for your Eclypse Z7, you can use AMD's Vivado Design Suite. Vivado is software designed for the synthesis, implementation, and analysis of HDL designs. The Eclypse Z7 is supported by the free WebPACK edition.
You can use AMD's PetaLinux Tools to customize, build, and deploy Embedded Linux solutions on the Zynq-7000.
AMD SDK enables development of embedded software applications targeting AMD SoC devices, such as the Zynq-7000.
Note: AMD software tools are not available for download in some countries. Prior to purchasing the Eclypse Z7, please check the supporting software's availability, as it is required for the board's use.
Example Designs
For those who want to get started without FPGA experience, Digilent provides several example designs using the Eclypse with C/C++, including both baremetal and Linux software applications, when used with the combination of Zmod Scope 1410-105 and Zmod AWG.
A …
