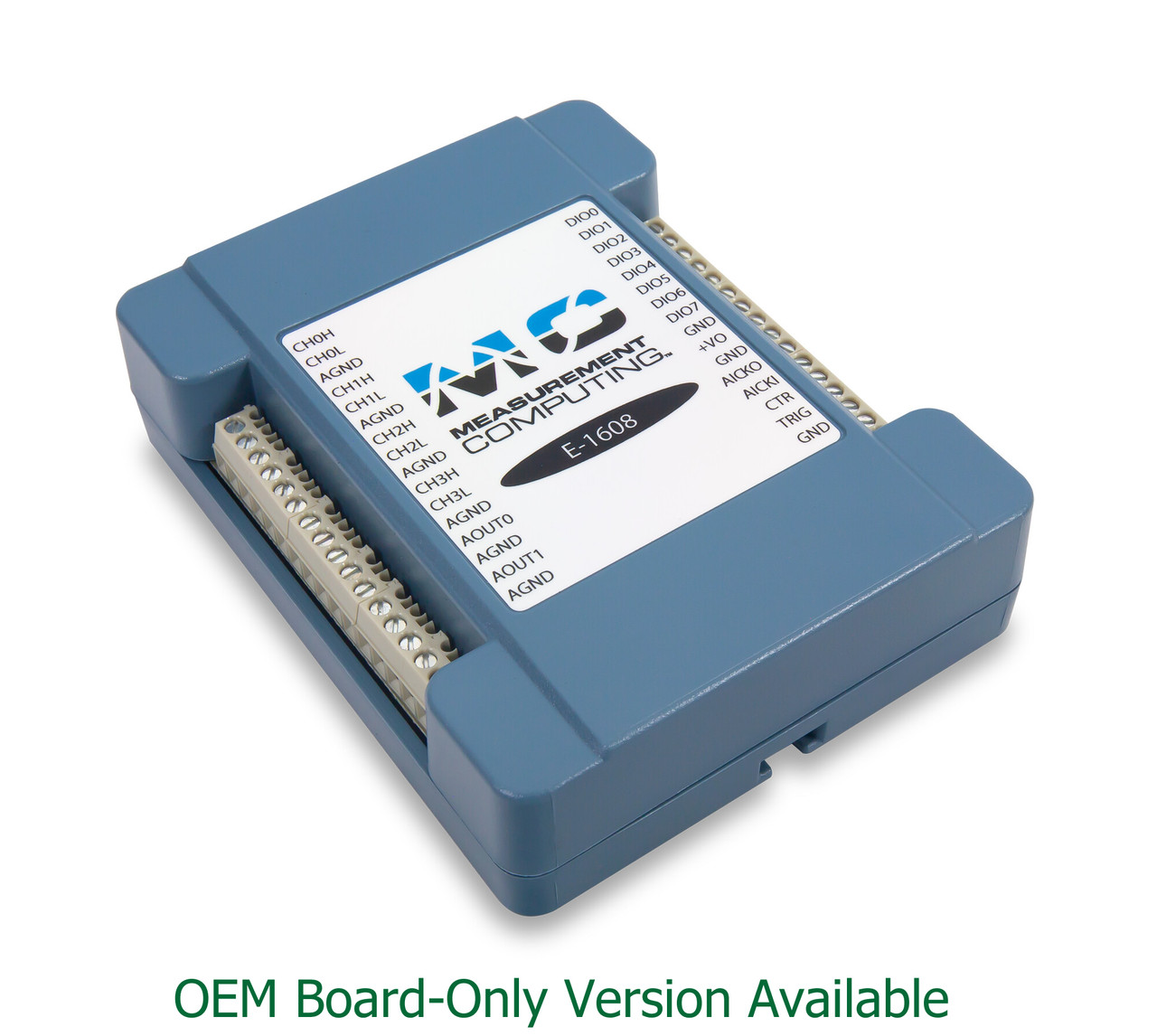

MCC E-1608: Multifunction Ethernet DAQ Device

Measurement Computing Corporation (MCC) and Data Translation (DT) DAQ products are now part of the Digilent family of test and measurement solutions. MCC and DT are leading suppliers of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.
The E-1608 features 8 SE/4 DIFF analog inputs, 16-bit resolution, 250 kS/s sample rate, two 16-bit analog outputs, eight digital I/O, and one 32-bit counter input.
The E-1608-OEM is a DAQ device, Ethernet-based, with 8 SE/4 DIFF analog inputs, 16-bit resolution, 250 kS/s sample rate, 2 analog outputs, 8 digital I/O, and 1 counter input. OEM version removes enclosure and screw terminals and adds headers.
Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also freely available are drivers for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.
OEM/Embedded Customers- please contact our dedicated application engineer for volume pricing, OEM/board-only versions of these devices, and assistance with your application. Visit our OEM Board-only page for more product offerings.

8 SE/4 DIFF analog inputs
16-bit resolution
250 kS/s sample rate
±10 V, ±5 V, ±2 V, ±1 V input ranges
Two 16-bit analog outputs
Eight digital I/O
One counter input

Product Compliance:

HTC: 8473.30.1180
ECCN: 3A992.a

E-1608
Ethernet Cable 1M
Power Supply, 5 VDC Output
Field Changeable AC Input Plug (USA style is included, other types may be purchased separately)
Printed insert: DAQami Quick Start
MCC packaging assembly/foam, etc.

Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.
Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.
DASYLab can purchased directly from measX.
For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.

Out of the Box Software: DAQami – Included
Data Acquisition Companion Software for Acquiring Data and Generating Signals
DAQami is an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. DAQami is ideal for interactive testing, data logging, and developing applications that run for minutes or days.
Supported Operating Systems: Windows® 11/10/8/7/Vista®, 32-bit or 64-bit
English, Chinese, and German language support.
DAQami Datasheet

Custom Applications without Programming: DASYLab® – Optional
Icon-Based Data Acquisition, Graphics, Control, and Analysis Software
DASYLab is an optional software package that offers real-time analysis, control, and the ability to create custom applications without programming. DASYLab is ideal for users that need more functionality than DAQami provides.
Supported Operating Systems: Windows® 11/10/8/7.
DASYLab can purchased directly from measX.

Programming and Driver Support – Included
MCC programming and driver support is extensive and features comprehensive libraries and example programs for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
Learn More About MCC Programming and Driver Support<

To learn more about the complete software ecosystem, visit the MCC software page.
MCC Data Acquisition Software

Quickly find what you need to get started and reduce mean time t…

Aplikasi & Use Case: MCC E-1608: Multifunction Ethernet DAQ Device digunakan dalam aplikasi pemantauan data laboratorium, perekaman parameter fisik (tegangan, arus, suhu), dan integrasi sistem uji otomatisasi berbasis komputer.
