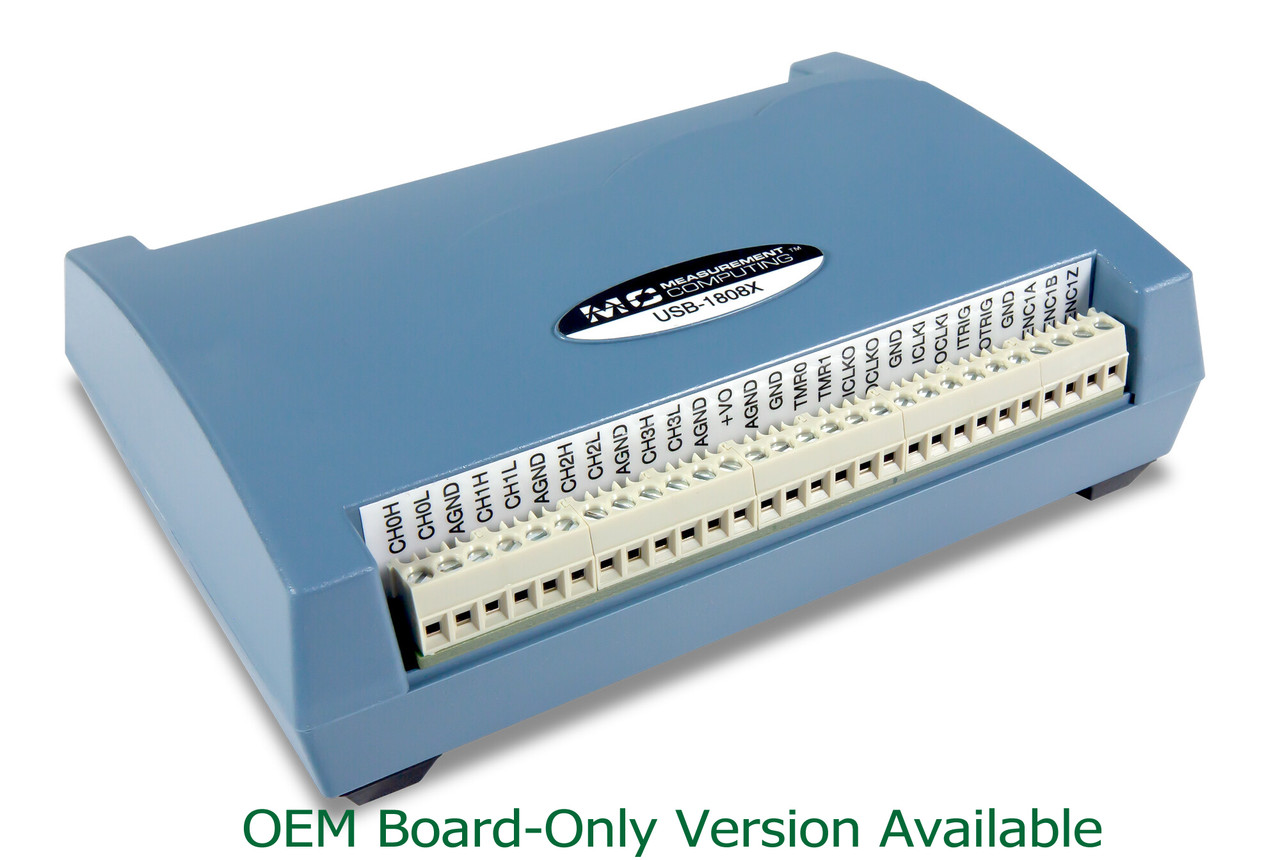

MCC USB-1808X: High-Speed, High-Precision, Simultaneous USB DAQ Device

Measurement Computing Corporation (MCC) and Data Translation (DT) DAQ products are now part of the Digilent family of test and measurement solutions. MCC and DT are leading suppliers of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.
The USB-1808X features eight high-precision, simultaneous analog inputs, 18-bit resolution, 200 kS/s/ch sample rate, two analog outputs, 4 digital I/O, two counters, and two quadrature encoder inputs.
USB-1808X-OEM: DAQ device with 8 SE/8 DIFF simultaneous analog inputs, 18-bit resolution, 200 kS/s/ch sample rate, 2 analog outputs, 4 digital I/O, 2 counter inputs, and 2 quadrature encoder inputs. OEM version removes enclosure and screw terminals and adds headers.
Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also included are drivers for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.
OEM/Embedded Customers- please contact our dedicated application engineer for volume pricing, OEM/board-only versions of this device, and assistance with your application. Visit our OEM Board-only page for more product offerings.

8 SE/8 DIFF simultaneous analog inputs
18-bit resolution
200 kS/s/ch sample rate
±10 V, ±5 V, 0-10 V, 0-5 V input ranges
Two 16-bit analog outputs
Four digital I/O
Two counter inputs
Two quadrature encoder inputs
Two timer outputs
No external power required

Product Compliance:

HTC: 8471.80.9000
ECCN: EAR99

USB-1808X
USB cable
Printed insert: DAQami Quick Start
MCC packaging assembly/foam, etc

Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.
Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.
DASYLab can purchased directly from measX.
For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.

Out of the Box Software: DAQami – Included
Data Acquisition Companion Software for Acquiring Data and Generating Signals
DAQami is an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. DAQami is ideal for interactive testing, data logging, and developing applications that run for minutes or days.
Supported Operating Systems: Windows® 11/10/8/7/Vista®, 32-bit or 64-bit
English, Chinese, and German language support.
DAQami Datasheet

Custom Applications without Programming: DASYLab® – Optional
Icon-Based Data Acquisition, Graphics, Control, and Analysis Software
DASYLab is an optional software package that offers real-time analysis, control, and the ability to create custom applications without programming. DASYLab is ideal for users that need more functionality than DAQami provides.
Supported Operating Systems: Windows® 11/10/8/7.
DASYLab can purchased directly from measX.

Programming and Driver Support – Included
MCC programming and driver support is extensive and features comprehensive libraries and example programs for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
Learn More About MCC Programming and Driver Support

To learn more about the complete software ecosystem, visit the MCC software page.
MCC Data Acquisition Software

Quickly find what you need to get started and reduce me…

Aplikasi & Use Case: MCC USB-1808X: High-Speed, High-Precision, Simultaneous USB DAQ Device digunakan dalam aplikasi pemantauan data laboratorium, perekaman parameter fisik (tegangan, arus, suhu), dan integrasi sistem uji otomatisasi berbasis komputer.
