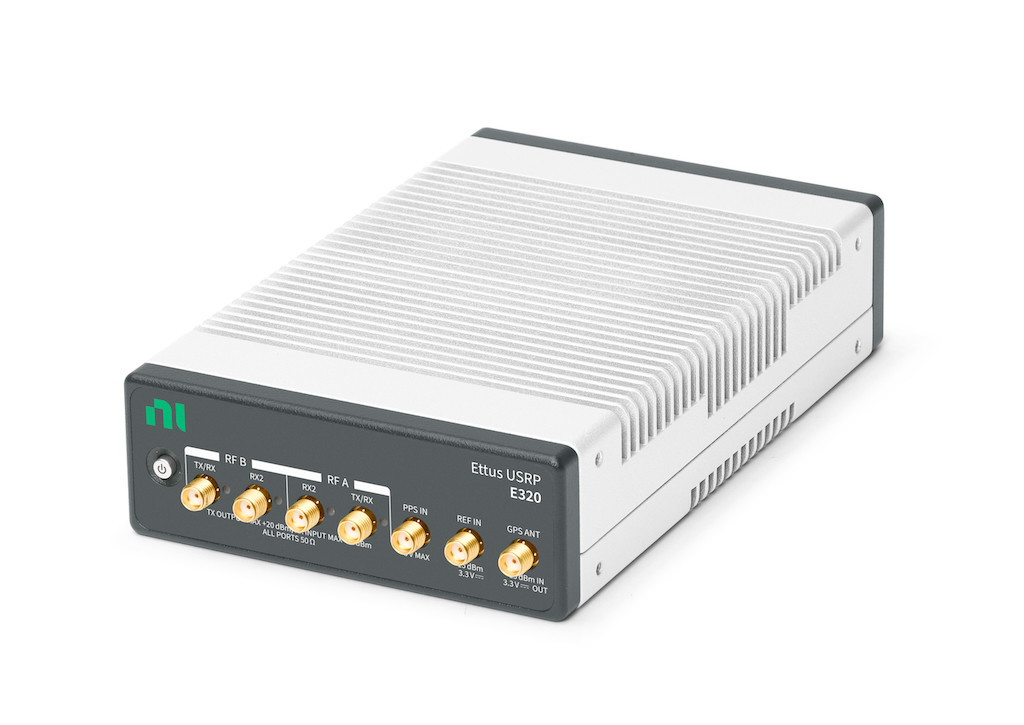

NI Ettus USRP E320: 2x2, 70MHz-6GHz SDR/Cognitive Radio

The USRP E320 brings performance to embedded software defined radios by offering four times more FPGA resources compared to the USRP E31x devices. The USRP E320 also introduces improvements in streaming, synchronization, integration, fault-recovery, and remote management capability. This field deployable SDR continues to use the flexible 2×2 MIMO AD9361 transceiver from Analog Devices, which covers frequencies from 70 MHz – 6 GHz and provides up to 56 MHz of instantaneous bandwidth.
The open-source USRP Hardware Driver (UHD) API and RF Network-on-Chip (RFNoC) FPGA development framework reduce software development effort and integrate with a variety of industry-standard tools such as GNU Radio. Users can rapidly prototype and reliably deploy designs for a variety of SDR applications such as spectrum monitoring and analysis, base station and UE emulation, mobile radio, and UAV communication/detection.
Baseband Processor
The baseband processor uses the AMD Zynq-7045 SoC to deliver a large user-programmable FPGA for real-time and low-latency processing and a dual-core ARM CPU for stand-alone operation. Users can deploy applications directly on to the preinstalled embedded Linux operating system or stream samples to a host computer using high-speed interfaces such as 1 Gigabit Ethernet, 10 Gigabit Ethernet, and Aurora.
Synchronization
The USRP E320 has a flexible synchronization architecture with support for traditional SDR synchronization methods such as clock reference, PPS time reference, and GPSDO, which enable implementation of high channel count MIMO systems.

Passive cooling enclosure
Remote management capability
Stand-alone (embedded) or host-based (network streaming) operation
Wide frequency range: 70 MHz to 6 GHz
Up to 56 MHz of instantaneous bandwidth
RX, TX filter bank
AMD Zynq-7045 SoC

Dual-core ARM Cortex-A9 800 MHz CPU with 1 GB DDR3 RAM
7 Series FPGA with 2 GB DDR3 RAM

1 SFP+ port (1 Gigabit Ethernet, 10 Gigabit Ethernet, Aurora)
1 RJ45 port (1 GbE)
Clock reference
PPS time reference
Built-in GPSDO
1 Type A USB host port
1 micro-USB port (serial console, JTAG)
Trusted Platform Module v1.2 [1]
Watchdog timer
OpenEmbedded Linux
USRP Hardware Driver™ (UHD) open-source software API version 3.14.0 or later
RF Network on Chip (RFNoC™) FPGA development framework
AMD Vivado 2017.4 Design Suite (license not included)
GNU Radio support maintained by NI Ettus through GR-UHD, an interface to UHD distributed by GNU Radio

What's Included:

USRP E320
Power supply (does not include regional power cord)
RJ45 Ethernet cable
SFP+ to RJ45 adapter
Micro-USB cable
Imaged microSD Card
T8 Torx Wrench

Required accessories:

Regional power supply cord

Recommended accessories:

USRP E320 Board Only Variant
10 Gigabit Ethernet Card for Desktops
10 Gigabit Ethernet Cable with SFP+ termination
Octoclock CDA-2990
3V Active GPS Antenna

Quickly find what you need to get started and reduce mean time to blink.
USRP E320 Datasheet

Quick Links
USRP E320 Getting Started GuideUSRP E320 Hardware ResourcesUHD Device Manual
