P2150 150MHz BNC Oscilloscope Probe

The P2150 BNC Oscilloscope Probe offers the best signal integrity and highest available bandwidth for connecting an oscilloscope to a circuit under test of the probes we offer. This probe comes with several components to ensure reliable and accurate measurements, and is the recommended probe for use with the ADP3450 and ADP3250.

BNC-terminated
Selectable 1X/10X input attenuation
Localization sleeve adapts to IC testing
Input resistance: 1MΩ/10MΩ±2%
Input capacitance:

1X: 70pF – 120pF
10X: 13pF – 17pF

Bandwidth: 150MHz

Product Compliance:

HTC: 9030908911
ECCN: EAR99

Safety Notice:The specifications provided apply to the oscilloscope probes only. When using these probes with a Test and Measurement device, always check the specifications of the device itself to ensure voltage limits are not exceeded. Failure to do so may result in equipment damage or safety risks.

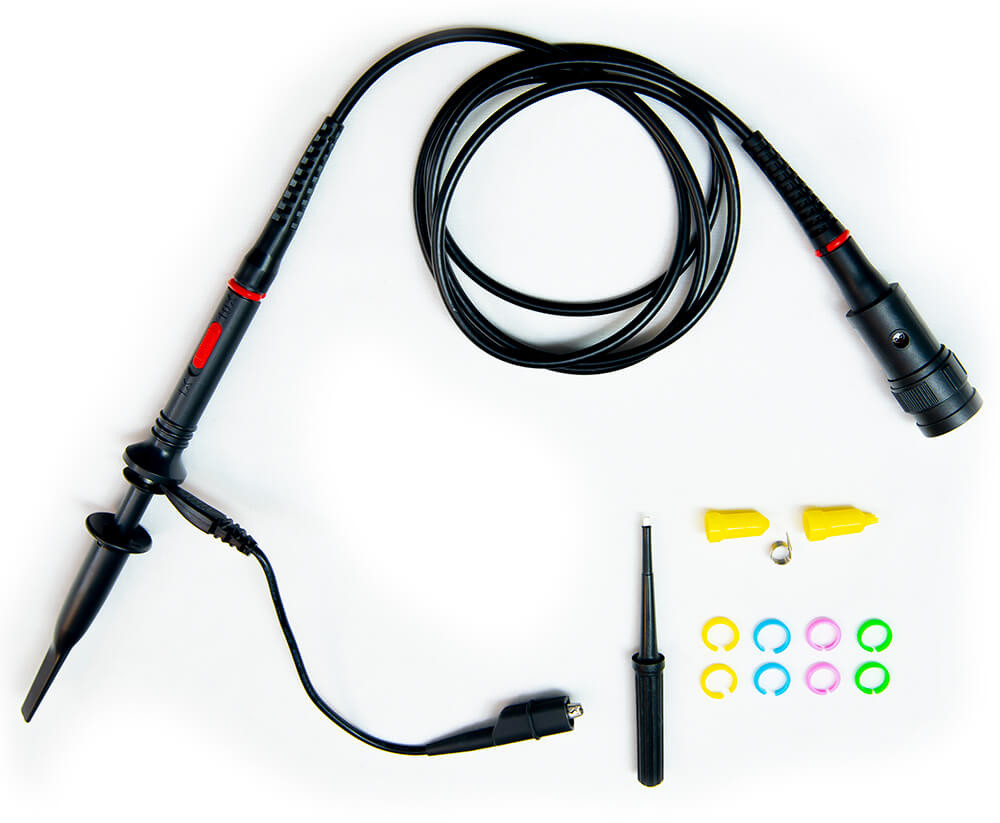

One P2150 BNC oscilloscope probe
1 adjustment tool: for probe compensation adjustments
2 locating sleeves: to ensure stability and reliability of the tip exposed to the test point
8 plastic marker rings: used for easy identification of different channels
1 ground lead: use the alligator clip to attach the probe to a ground reference
1 ground spring: provides shorter grounding path for better signal integrity
1 contraction hook clip: use the retractable hook tip for grasping test points

Datasheet
