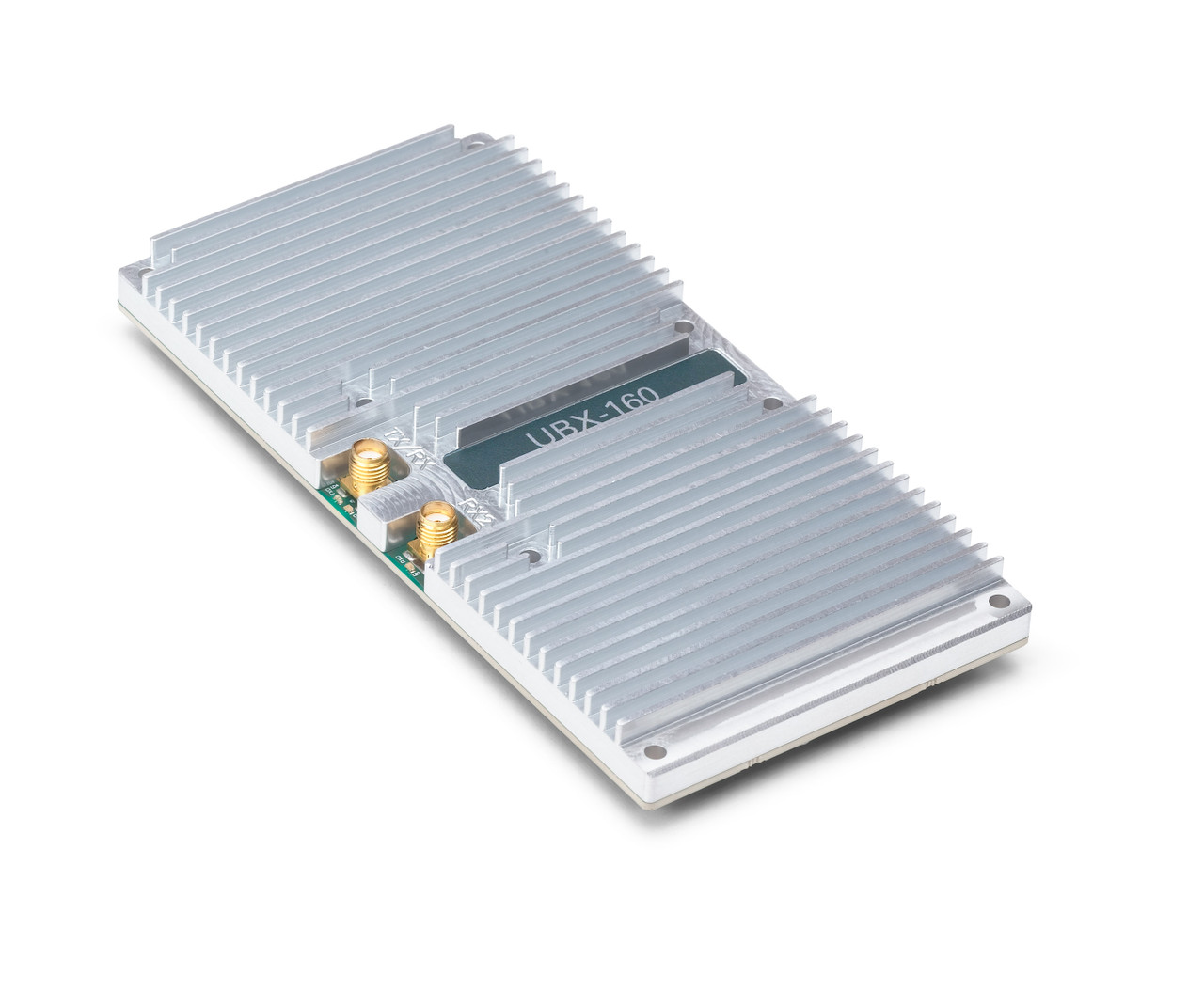

UBX 160 USRP Daughterboard: 10 MHz - 6 GHz, 160 MHz BW

The UBX 160 daughterboard is a full-duplex wideband transceiver that covers frequencies from 10 MHz to 6 GHz with up to 160 MHz* of instantaneous bandwidth. Coherent and phase-aligned operation across multiple UBX daughterboards enables users to explore MIMO and direction finding applications. The UBX 160 daughterboard works interchangeably with other USRP daughterboards and is supported by the USRP Hardware Driver™ (UHD) software API for seamless integration into existing applications.
The flexible transceiver architecture features multiple reconfigurable RF signal paths to optimize performance across a wide frequency range. A down conversion stage in the transmitter path, and an up conversion stage in the receiver path, extends the tuning range of the main direct conversion stage to cover signals with a center frequency from 10 MHz to 500 MHz. The wide RF coverage of the UBX daughterboard is ideal for applications spanning all the most common bands of interest such as HF, VHF, cellular, radar, and Wi-Fi.
* The UBX 160 transmitter path has 160 MHz of bandwidth throughout the full frequency range of the device; the receiver path has 84 MHz of bandwidth for center frequencies from 10 MHz to 500 MHz.

Wide frequency range: 10 MHz – 6 GHz
Wide bandwidth: up to 160 MHz
USRP compatibility: X Series
RF shielding
Full duplex operation with independent TX and RX frequencies
Synthesizer synchronization for applications requiring coherent or phase-aligned operation

What's Included:

UBX 160 Daughterboard
Screws

Recommended for use with:

USRP X300
USRP X310
