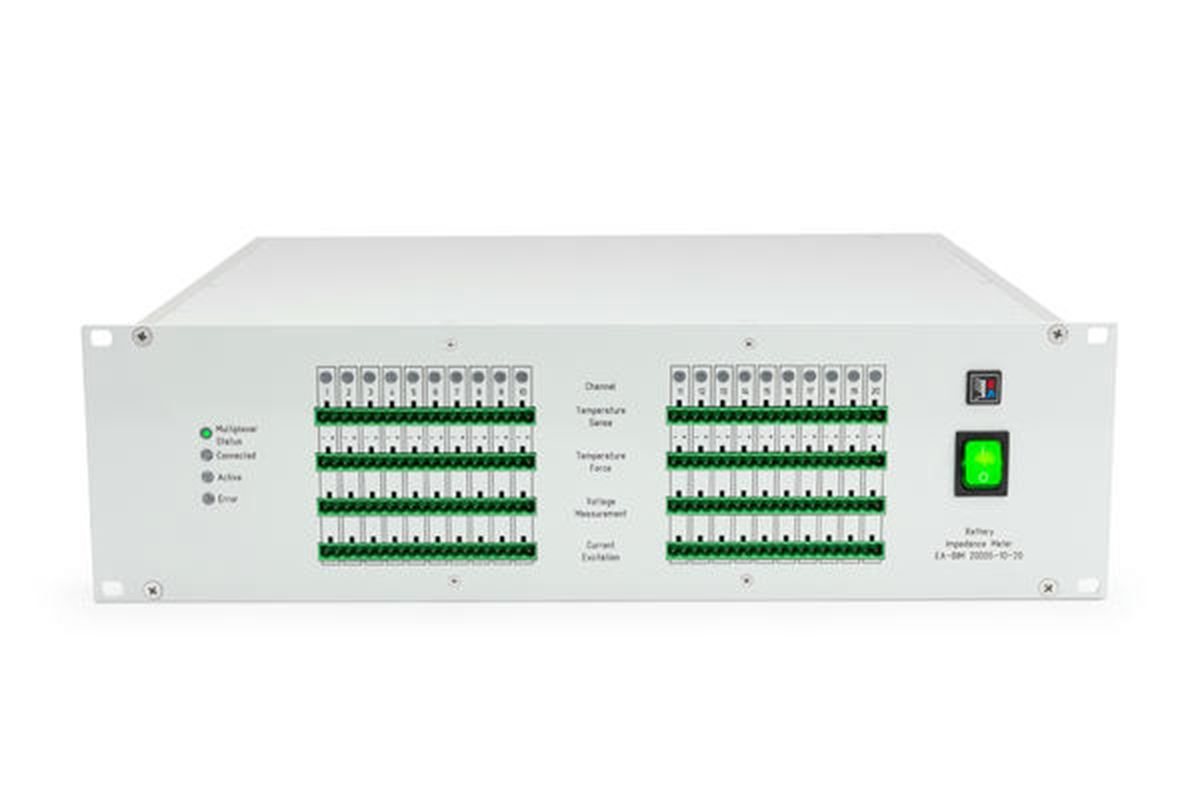

EA-BIM 20000 Series Battery Impedance Meters | Meter Impedansi Baterai Seri EA-BIM 20000
Get fast, accurate insight into Li-Ion battery cell quality by performing electrochemical impedance spectroscopy measurements (EIS) on up to 20 channels with the industry’s…
Get fast, accurate insight into Li-Ion battery cell quality by performing electrochemical impedance spectroscopy measurements (EIS) on up to 20 channels with the industry’s highest throughput. Included software, industry-standard interfaces and low power consumption make it easy to integrate this battery impedance tester into your workflow.
Accurate impedance and deeper insight
Broad frequency EIS delivers deeper insight into the condition of your battery cells.
- Better than 1% impedance measurement accuracy
- 1 mHz to 10 kHz frequency range
- 20 channels of 4-wire PT100 temperature sensors
- Includes built-in battery cell charge/discharge up to 1 A at 5 V
- Combine with larger test systems such as EA-BCTS
Easily add EIS to your battery testing
The EA-BIM 20005 impedance meter can be easily integrated into existing battery test automation systems.
- USB device port for connection to your PC
- CAN bus to communicate with battery cycling test systems
- 20 EIS plus temperature channels in just 3U
- < 60 W power consumption
Fastest EIS in the industry
The BIM 20005 is the perfect choice for high volume test requirements.
- Multi-frequency pulses deliver measurements hundreds of times faster than traditional swept measurements
- 20 multiplexed EIS-measurement channels
Simple and intuitive electrochemical impedance spectroscopy
The included BIM.Suite software is both easy to use and powerful, catering to all your cell characterization testing needs. Configure the settings effortlessly and begin your first EIS measurement immediately.
- Evaluate measurements with built-in visualizations and analysis
- Perform standard sweep measurements or rapid multi-sine measurements
- Measure while charging or discharging
- Record results in your preferred file formats
Spesifikasi
| Test Frequency | 1 mHz–10 kHz |
|---|---|
| Voltage | 0–5V / 1A |
| Max AC Current | 0–10 A per channel |
| Channels | 20 Channels |
