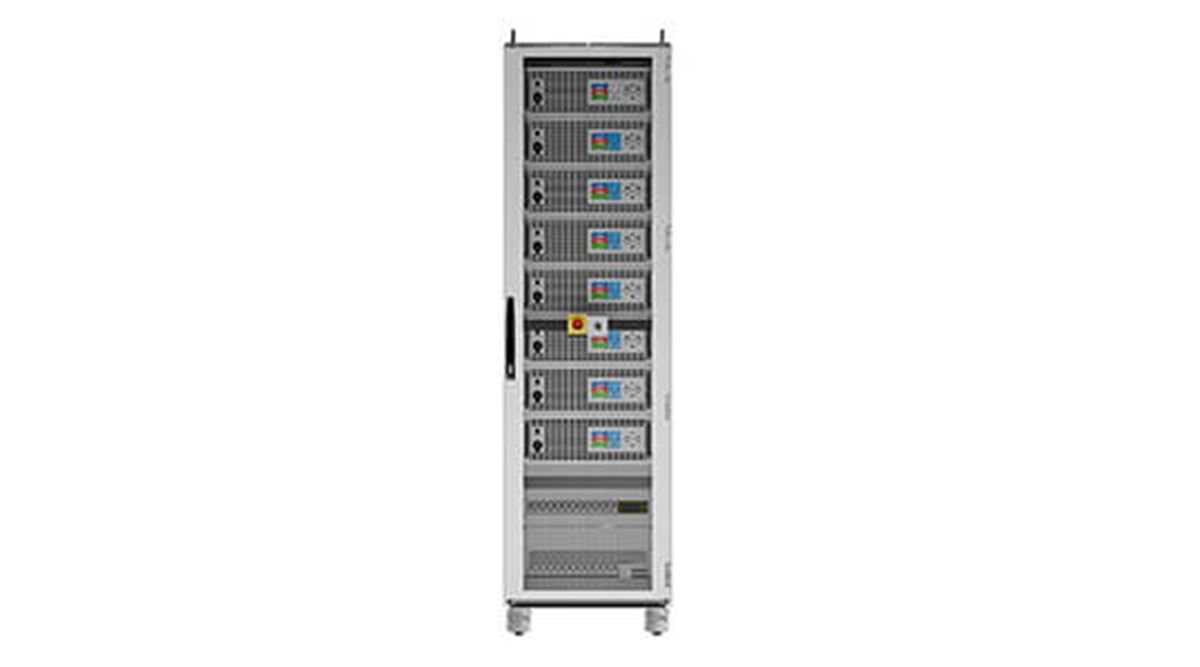

EA-ELR 21000 Dynamic Test System | Sistem Pengujian Dinamis EA-ELR 21000
The ELR 21000 dynamic test system, featuring the new EA Elektro-Automatik high-speed regenerative electronic load ELR 21000-80 device, enables engineers to validate real-world…
The ELR 21000 dynamic test system, featuring the new EA Elektro-Automatik high-speed regenerative electronic load ELR 21000-80 device, enables engineers to validate real-world rack-level power behavior under dynamic conditions—while dramatically reducing lab energy consumption, heat, and infrastructure requirements.
High-dynamic, regenerative test solution for next-generation data centers
The ELR 21000 dynamic test system combines EA regenerative electronic loads and application expertise into a modular, scalable test platform optimized for data center power electronics.
At the core of the system is the EA-ELR 21000-80 high-speed regenerative electronic load, designed to reveal real-world power behavior in modern data center architectures.
Discover AI Data Center Power Architecture Testing Solutions
- Total DC power up to 240 kW per rack
- Scalable in 30 kW steps
- Dynamic load transitions directly at 800 V DC
- High current slew rate up to 12 A/µs at 240 kW
- Regenerative system with efficiency up to 95%
- Modular, service-friendly design
Regenerative operation for energy-efficient testing
Recover test energy back to the grid instead of dissipating it as heat. Regenerative operation helps reduce lab power demand, cooling needs, and operating costs.
Up to 95% energy recovery
- Drastically reduced lab heat and noise
- Lower HVAC requirements and operational cost
- Reduces grid power demand – only system losses are drawn from the grid
Scalable, compact rack-level power
Scale from 30 kW modules to rack-level and multi-megawatt systems as test requirements evolve. Compact, high-power-density hardware helps reduce floor space and installation complexity.
- Modular expansion in 30 kW steps
- Up to 240 kW per rack, expandable to multi-megawatt systems
- High power density minimizes floor space
- Supports high-power testing in infrastructure-limited labs
- Reduces installation risk and helps accelerate time to market
Why Tektronix and EA
Unlike conventional dissipative load solutions, the ELR 21000 dynamic test system:
The result is higher confidence, lower operating costs, and faster deployment of next-generation data center power systems.
- Enables realistic system-level testing at full voltage
- Dramatically lowers CAPEX and OPEX
- Reduces installation risk and facility constraints
- Scales alongside evolving data center power architectures
Spesifikasi
| Power | 30–1920 kW |
|---|---|
| Voltage | 800–1000 V |
| Current | 0–5120 A |
| Slew Rate | 12 A/µs at 240 kW |
