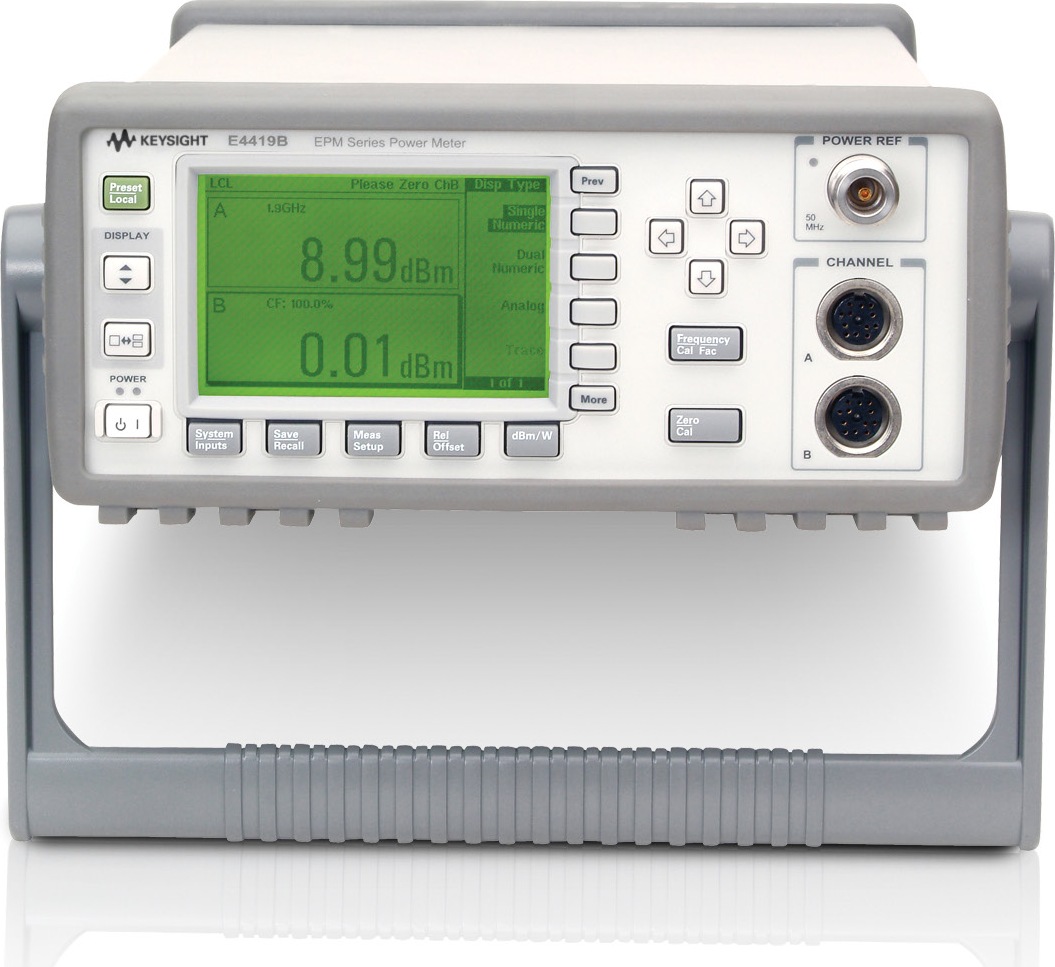

Keysight E4419B EPM Series Dual-Channel Power Meter | Power Meter Dua Kanal
EPM Series dual-channel power meter that can display two measurement paths simultaneously, supplied with two sensor cables.
Available models include E4418B, E4419B.
The E4419B is the dual-channel EPM Series power meter, for average power measurements with Keysight E-Series and 8480 Series power sensors.
It can simultaneously display two independent measurement paths and is supplied with two 1.5 metre sensor cables.
Fitur Utama:
- Dual-channel average power measurement
- Simultaneous display of two independent measurement paths
- Compatible with E-Series and 8480 Series power sensors
- Supplied with two 1.5 m (5 ft) sensor cables
Model & Varian
| Model | Channels | Sensor cables included |
|---|---|---|
| E4418B | Single-channel | One 1.5 m cable |
| E4419B | Dual-channel | Two 1.5 m cables |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Number of channels | Dual-channel EPM Series power meter |
|---|---|
| Compatible sensors | E-Series and 8480 Series power sensors |
| Included cables | Two 1.5 metre (5 ft) power sensor cables |
| Measurement type | Average power |
| Display | Can simultaneously display two independent measurement paths; selectable single and split screen formats |
| Dynamic range | Sensor dependent |
| Single sensor dynamic range | 90 dB maximum with E-Series sensors; 50 dB maximum with 8480 Series; 55 dB maximum with N8480 Series |
| Measurement speed (E4418B) | Normal 20 readings/second, x2 40 readings/second, Fast 200 readings/second |
| Averaging | Averaging of 1 to 1024 readings is available for reducing measurement noise |
