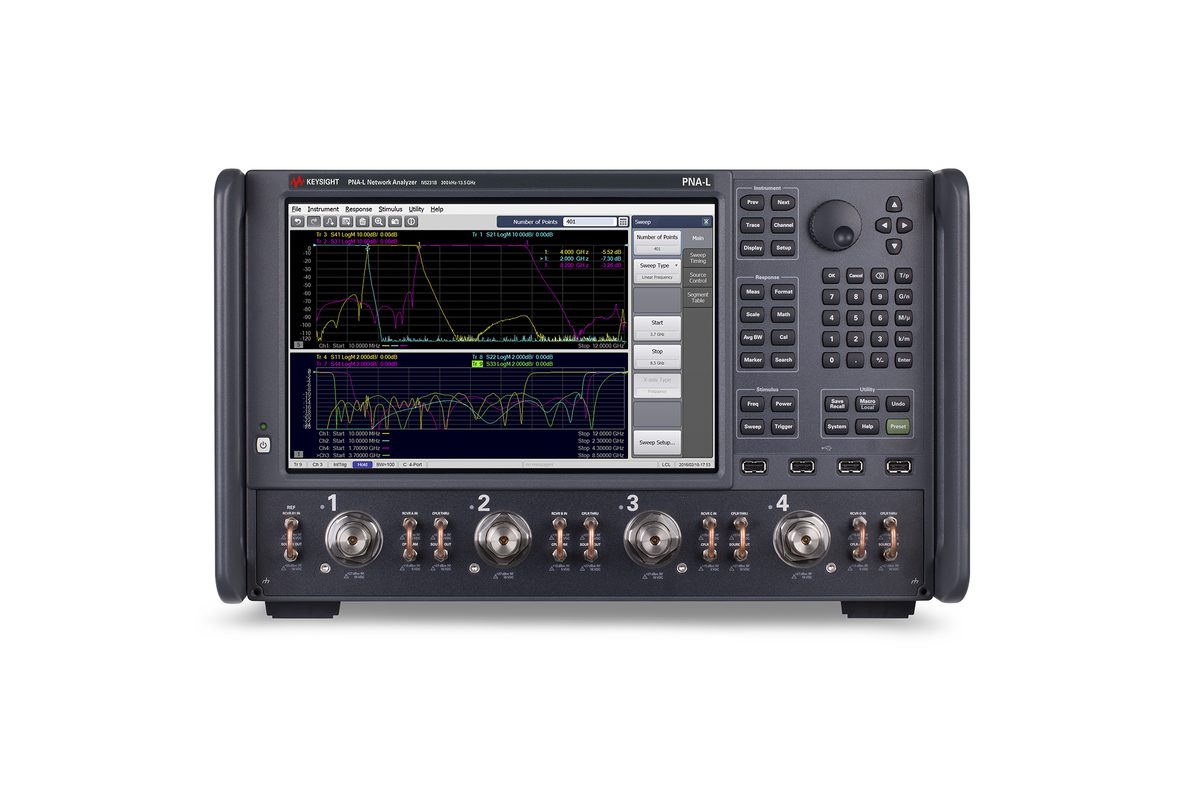

Keysight PNA-L Vector Network Analyzers | VNA PNA-L
300 kHz to 13.5 GHz, 2- and 4-ports with a single built-in source.
Available models include N5231B, N5232B.
300 kHz to 13.5 GHz, 2- and 4-ports with a single built-in source.
Highlights
What's included:
- Perform basic analysis of passive components and simple active devices.
- Measure S-parameters with good accuracy up to 13.5 GHz in cost-sensitive applications.
- Get the world’s best price-to-performance ratio for microwave manufacturing.
- Configure an economical solution for signal-integrity measurements and materials characterization.
- Accelerate insight into component behavior using a multitouch display and intuitive user interface.
- plug hole, bottom foot
- quick-start guide
- calibration certificate
- 3 inductors (ferrite core)
- wrench
- cable tie
- safety manual
- keyboard and USB cable
- optical mouse
Model & Varian
| Model | Maximum frequency | Number of built-in ports | Maximum number of sources | Integrated low-noise receivers |
|---|---|---|---|---|
| N5231B | 13.5 GHz | 2, 4 | 1 | 0 |
| N5232B | 20 GHz | 2, 4 | 1 | 0 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Variant count | 2 models |
|---|---|
| Maximum frequency | 13.5 to 20 GHz |
| Number of built-in ports | 2, 4 |
| Maximum number of sources | 1 |
| Integrated low-noise receivers | 0 |
Unduhan & Sumber
Butuh konsultasi teknis?
Kirim kebutuhan pengujian Anda — tim Terastek membantu menentukan konfigurasi yang sesuai.
