Keysight

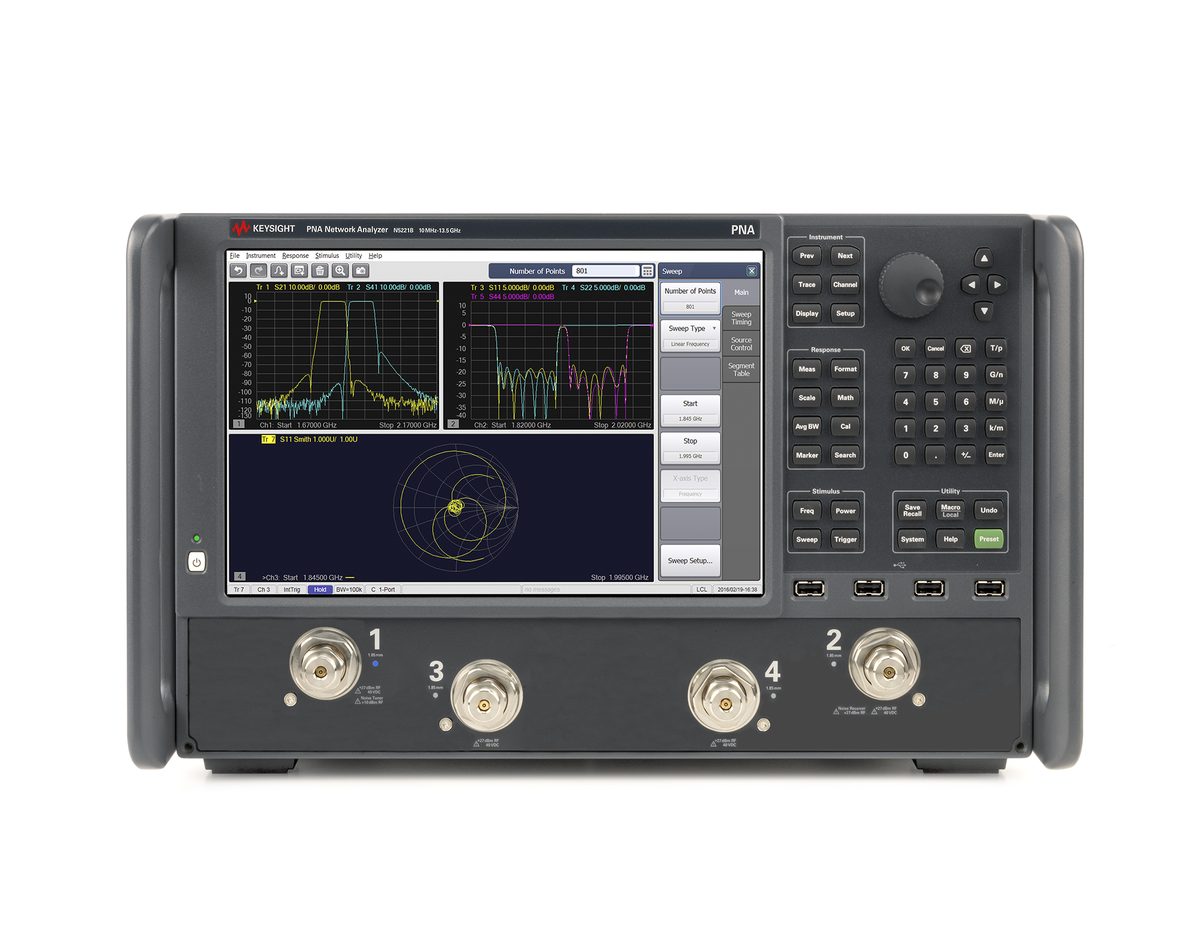

Keysight PNA Vector Network Analyzers | VNA PNA
10 MHz to 13.5 GHz, 2-ports with one source and 4-ports with two sources, source and receiver attenuators, bias-tees, pulse generators and modulators, noise figure, and best RF…
Available models include N5221B, N5222B, N5225B.
10 MHz to 13.5 GHz, 2-ports with one source and 4-ports with two sources, source and receiver attenuators, bias-tees, pulse generators and modulators, noise figure, and best RF performance.
Highlights
What's included:
- Meet your toughest measurement challenges with the highest-performing microwave network analyzer in the industry.
- Measure S-parameters with the smallest uncertainty and highest stability.
- Efficiently characterize active components with applications that simplify setups.
- Meet your budget and measurement needs by customizing to the right level of performance.
- Accelerate insight into component behavior using a multitouch display and intuitive user interface.
- plug, hole, bottom foot
- installation and quick-start guide
- safety manual
- calibration certificate
- 3 inductors (ferrite cores)
- wrench
- cable tie
- optical mouse
Model & Varian
| Model | Maximum frequency | Number of built-in ports | Maximum number of sources | Integrated low-noise receivers |
|---|---|---|---|---|
| N5221B | 13.5 GHz | 2, 4 | 2 | 0 |
| N5222B | 26.5 GHz | 2, 4 | 2 | 0 |
| N5225B | 50 GHz | 2, 4 | 2 | 0 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Variant count | 3 models |
|---|---|
| Maximum frequency | 13.5 to 50 GHz |
| Number of built-in ports | 2, 4 |
| Maximum number of sources | 2 |
| Integrated low-noise receivers | 0 |
