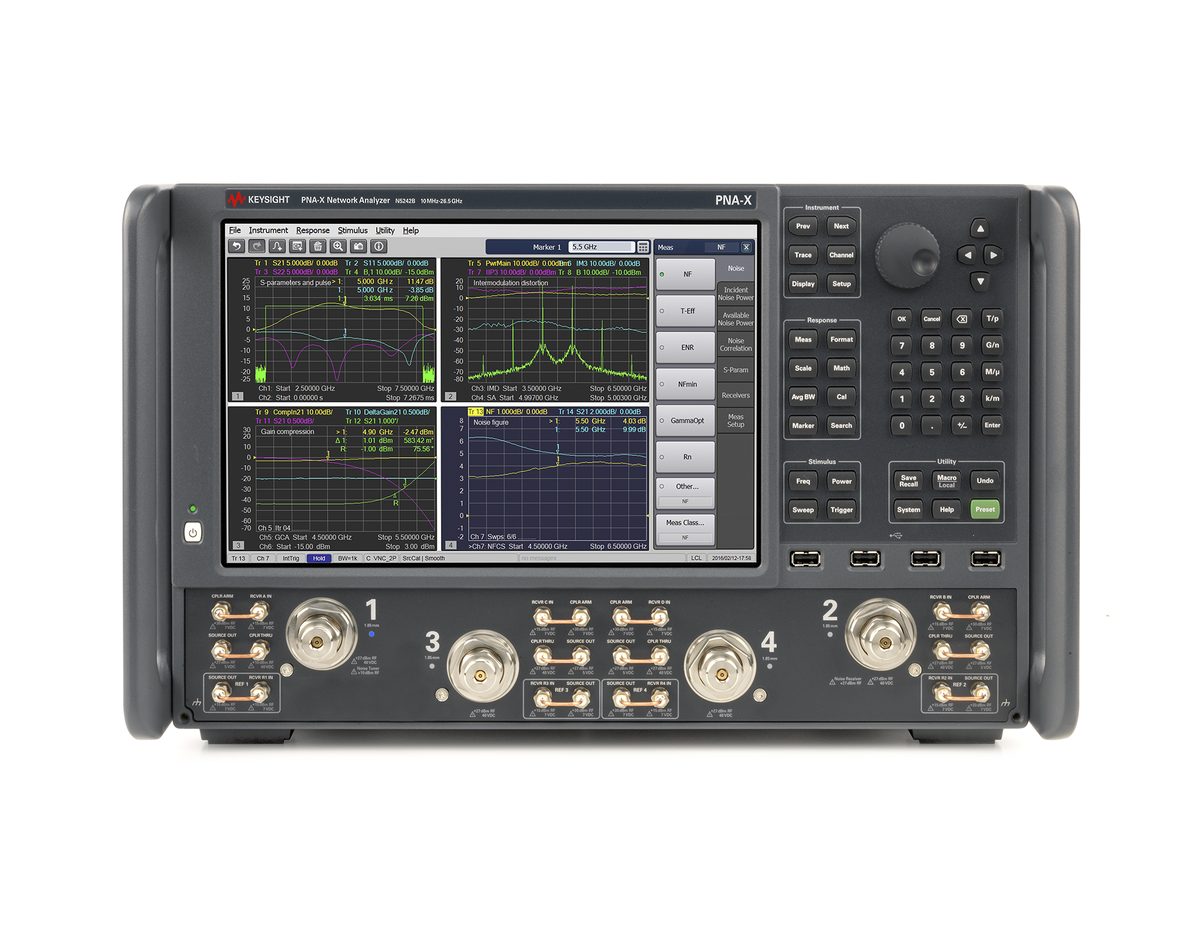

Keysight PNA-X Vector Network Analyzers | VNA PNA-X
The PNA-X vector network analyzer offers the world's most integrated and flexible microwave test platform for active device characterization.
Available models include N5242B, N5245B.
The PNA-X vector network analyzer offers the world's most integrated and flexible microwave test platform for active device characterization.
Reach for Unrivaled Excellence
The PNA-X network analyzer is the world’s most integrated and flexible microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. Including two internal signal sources, S-parameter and noise receivers, pulse modulators and generators, a signal combiner, and set of switches and RF access points, the PNA-X architecture supports a broad range of linear and nonlinear measurements. Replace an entire rack of equipment with a simplified testbed using one PNA-X network analyzer to test your device under test with only a single set of connections.
- reduce test time with the widest range of single-connection measurement applications
- characterize linear and nonlinear devices using advanced error correction for unparalleled accuracy
- choose from the industry's widest range of measurement applications for speed, accuracy, and ease of use in advanced RF test
- accelerate insights into component behavior using a multitouch display and intuitive user interface
Model & Varian
| Model | Maximum frequency | Number of built-in ports | Maximum number of sources | Integrated low-noise receivers |
|---|---|---|---|---|
| N5242B | 26.5 GHz | 2, 4 | 3 | 1 |
| N5245B | 50 GHz | 2, 4 | 3 | 1 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Variant count | 2 models |
|---|---|
| Maximum frequency | 26.5 to 50 GHz |
| Number of built-in ports | 2, 4 |
| Maximum number of sources | 3 |
| Integrated low-noise receivers | 1 |
