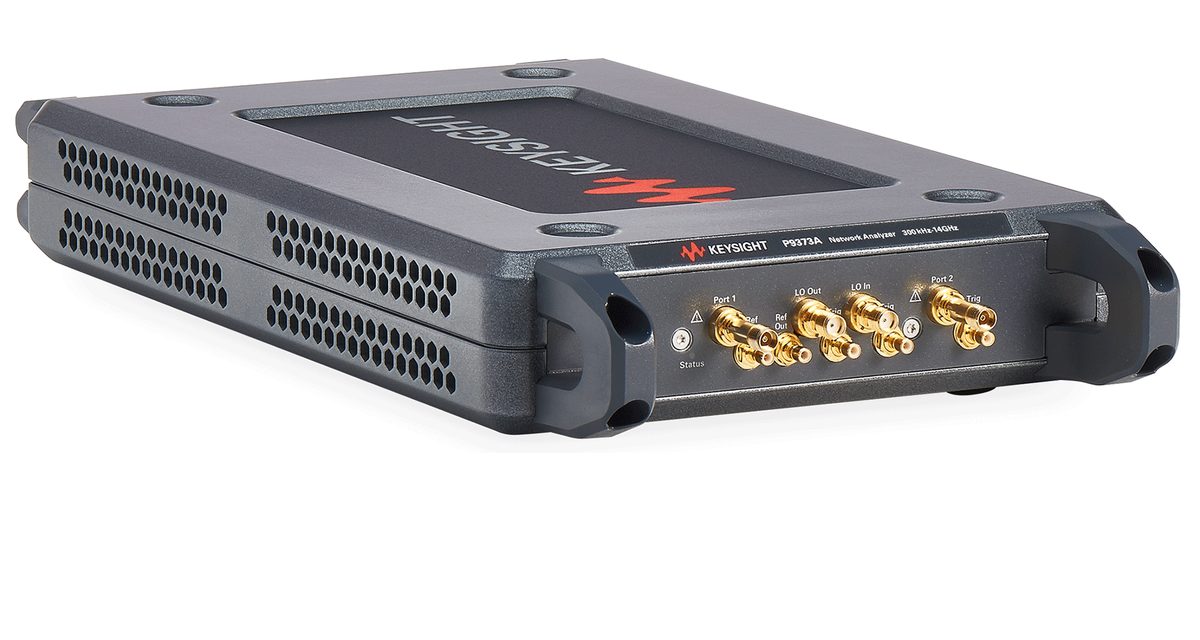

Keysight Streamline USB VNA — Seri P93xx & P50xx | Analyzer Jaringan Vektor USB
Compact, faceless, USB vector network analyzer (VNA). Affordable full two-port VNA which dramatically reduces your size of test. Up to 14 GHz.
Available models include P5004A, P5005A, P5006A, P5007A, P5008A, P9373A, P9374A, P9375A.
Compact, faceless, USB vector network analyzer (VNA). Affordable full two-port VNA which dramatically reduces your size of test. Up to 14 GHz.
Highlights
What's included:
- compact, portable, and easy to connect
- dramatically reduces your size of test
- frequency range from 300 kHz to 14 GHz
- extends the number of test ports (max four ports)
- same GUI and measurement science as Keysight high-performance VNAs
- supports all electronic calibration (ECal) modules
- quick-start guide
- USB 3.0 cable assembly
- power supply, external AC-DC adapter
- power cord
- calibration certificate
Model & Varian
| Model | Maximum frequency | Number of built-in ports | Maximum output power | Maximum number of sources |
|---|---|---|---|---|
| P5004A | 20 GHz | 2 | 10 dBm | 1 |
| P5005A | 26.5 GHz | 2 | 10 dBm | 1 |
| P5006A | 32 GHz | 2 | 10 dBm | 1 |
| P5007A | 44 GHz | 2 | 10 dBm | 1 |
| P5008A | 53 GHz | 2 | 10 dBm | 1 |
| P9373A | 14 GHz | 2 | 7 dBm | 1 |
| P9374A | 20 GHz | 2 | 7 dBm | 1 |
| P9375A | 26.5 GHz | 2 | 7 dBm | 1 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Variant count | 8 models |
|---|---|
| Maximum frequency | 14 to 53 GHz |
| Number of built-in ports | 2 |
| Maximum output power | 7 to 10 dBm |
| Maximum number of sources | 1 |
