69 Power Supply

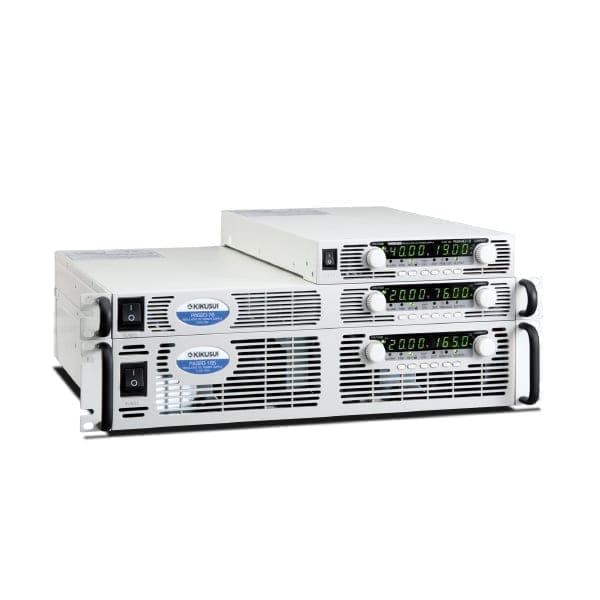

Kikusui PAG — Slim Variable Switching Power Supplies
kikusui-pag · Power Supply
Spesifikasi Utama
- Tegangan Output0 to 6V s/d 0 to 600V (per model)
- Arus Output0 to 5A s/d 0 to 600A (per model)
- Daya Output750W / 1500W / 2400W / 3300W / 5000W
- Mode OperasiCV / CC
- TipePAG (1U) / PAGH / PAGL (high-density)
- InputSingle/Three-phase 85–265VAC
Gambaran Umum
Slim Variable Switching Power Supplies Kikusui adalah power supply DC programmable untuk aplikasi R&D, produksi, dan ATE.
Spesifikasi
| Tegangan Output | 0 to 6V s/d 0 to 600V (per model) |
| Arus Output | 0 to 5A s/d 0 to 600A (per model) |
| Daya Output | 750W / 1500W / 2400W / 3300W / 5000W |
| Mode Operasi | CV / CC |
| Tipe | PAG (1U) / PAGH / PAGL (high-density) |
| Input | Single/Three-phase 85–265VAC |
| Antarmuka | LAN / USB / RS232C / GPIB |
| Aplikasi | uji arus besar, baterai, kontaktor |
Model & Varian
kikusui-pag — pilih model yang sesuai, minta penawaran via WhatsApp.
| Model | Tegangan Output | Arus Output | Daya Output | |
|---|---|---|---|---|
| PAG6-200 | 0 to 6V | 0 to 200A | 1200W | Tanya Harga |
| PAG20-76 | 0 to 20V | 0 to 76A | 1520W | Tanya Harga |
| PAG40-38 | 0 to 40V | 0 to 38A | 1520W | Tanya Harga |
| PAG8-400 | 0 to 8V | 0 to 400A | 3200W | Tanya Harga |
| PAG20-250 | 0 to 20V | 0 to 250A | 5000W | Tanya Harga |
| PAG300-17 | 0 to 300V | 0 to 17A | 5100W | Tanya Harga |
