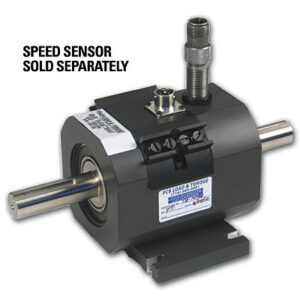

PCB 4102-4107 Series Rotary Torque Sensor (Trans) 100 Lb-In
Model 4103-01A:Torque Sensor, Rotary Transformer, Shaft to Shaft, 100 in-lb Capacity FS, 15k RPM Max., MS Conn.
Available models include 4103-01A, 4103-02A, 4104-01A, 4104-02A, 4104-03A, 4105-01A, 4105-02A, 4105-03A, 4106-01A, 4106-02A, 4106-03A.
Model 4103-01A:Torque Sensor, Rotary Transformer, Shaft to Shaft, 100 in-lb Capacity FS, 15k RPM Max., MS Conn.
This series includes the official PCB Piezotronics models listed below.
Key Features
Model 4103-01A:Torque Sensor, Rotary Transformer, Shaft to Shaft, 100 in-lb Capacity FS, 15k RPM Max., MS Conn.
- Measurement Range: 100 in-lb (11.3 Nm)
- Sensitivity: (±15%)2.0 mV/V (2.0 mV/V)
- Non-Linearity:
- Mounting: .75 in Dia. Keyed Shaft (19.1 mm Dia. Keyed Shaft)
- Maximum Speed: 15000 RPM
Model & Varian
| Model | Measurement Range (Full Scale Capacity) | Non-Linearity | Hysteresis | Non-Repeatability | Overload Limit | Temperature Range (Operating) | Temperature Range (Compensated) | Temperature Effect on Output (Maximum) |
|---|---|---|---|---|---|---|---|---|
| 4103-01A | 100 in-lb / 11.3 Nm / [1] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.02 % FS / [2] | 300 in-lb / 33 Nm | -65 to 170 °F / -54 to 77 °C | +70 to +170 °F / +21 to 77 °C | ±0.002 %Reading/°F / ±0.0036 %Reading/°C / [3] |
| 4103-02A | 200 in-lb / 22.6 Nm / [1] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.02 % FS / [2] | 600 in-lb / 66 Nm | -65 to 170 °F / -54 to 77 °C | +70 to +170 °F / +21 to 77 °C | ±0.002 %Reading/°F / ±0.0036 %Reading/°C / [3] |
| 4104-01A | 500 in-lb / 56.5 Nm / [1] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.02 % FS / [2] | 1500 in-lb / 170 Nm | -65 to 170 °F / -54 to 77 °C | +70 to +170 °F / +21 to 77 °C | ±.002 %Reading/°F / ±.0036 %Reading/°C / [3] |
| 4104-02A | 1000 in-lb / 113 Nm / [1] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.02 % FS / [2] | 3000 in-lb / 340 Nm | -65 to 170 °F / -54 to 77 °C | +70 to +170 °F / +21 to 77 °C | ±.002 %Reading/°F / ±.0036 %Reading/°C / [3] |
| 4104-03A | 2000 in-lb / 226 Nm / [1] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.02 % FS / [2] | 3000 in-lb / 340 Nm | -65 to 170 °F / -54 to 77 °C | +70 to +170 °F / +21 to 77 °C | ±.002 %Reading/°F / ±.0036 %Reading/°C / [3] |
| 4105-01A | 5000 in-lb / 565 Nm / [1] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.02 % FS / [2] | 6000 in-lb / 675 Nm | -65 to 170 °F / -54 to 77 °C | +70 to +170 °F / +21 to 77 °C | ±.002 %Reading/°F / ±.0036 %Reading/°C / [3] |
| 4105-02A | 5000 in-lb / 565 Nm / [1] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.02 % FS / [2] | 15000 in-lb / 1700 Nm | -65 to 170 °F / -54 to 77 °C | +70 to +170 °F / +21 to 77 °C | ±.002 %Reading/°F / ±.0036 %Reading/°C / [3] |
| 4105-03A | 10000 in-lb / 1130 Nm / [1] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.02 % FS / [2] | 15000 in-lb / 1700 Nm | -65 to 170 °F / -54 to 77 °C | +70 to +170 °F / +21 to 77 °C | ±.002 %Reading/°F / ±.0036 %Reading/°C / [3] |
| 4106-01A | 10000 in-lb / 1130 Nm / [1] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.02 % FS / [2] | 30000 in-lb / 3400 Nm | -65 to 170 °F / -54 to 77 °C | +70 to +170 °F / +21 to 77 °C | ±.002 %Reading/°F / ±.0036 %Reading/°C / [3] |
| 4106-02A | 20000 in-lb / 2260 Nm / [1] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.02 % FS / [2] | 60000 in-lb / 6775 Nm | -65 to 170 °F / -54 to 77 °C | +70 to +170 °F / +21 to 77 °C | ±.002 %Reading/°F / ±.0036 %Reading/°C / [3] |
| 4106-03A | 36000 in-lb / 4067 Nm / [1] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.02 % FS / [2] | 60000 in-lb / 6775 Nm | -65 to 170 °F / -54 to 77 °C | +70 to +170 °F / +21 to 77 °C | ±.002 %Reading/°F / ±.0036 %Reading/°C / [3] |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Measurement Range (Full Scale Capacity) | 100 in-lb / 11.3 Nm / [1] |
|---|---|
| Sensitivity (±15 %) (output at rated capacity) | 2.0 mV/V / [1] [2] |
| Non-Linearity | ≤0.05 % FS / [2] |
| Hysteresis | ≤0.05 % FS / [2] |
| Non-Repeatability | ≤0.02 % FS / [2] |
| Overload Limit | 300 in-lb / 33 Nm |
| Temperature Range (Operating) | -65 to 170 °F / -54 to 77 °C |
| Temperature Range (Compensated) | +70 to +170 °F / +21 to 77 °C |
| Temperature Effect on Output (Maximum) | ±0.002 %Reading/°F / ±0.0036 %Reading/°C / [3] |
| Temperature Effect on Zero Balance (Maximum) | ±0.002 %FS/°F / ±0.0036 %FS/°C / [2] [3] |
| Bridge Resistance | 350 Ohm / [1] |
| Excitation Frequency | 3.28 kHz |
| Excitation Voltage | 2 to 10 VAC rms / [4] |
| Bridge Current (at 5 VAC) | 50 mA |
| Insulation Resistance | >5000000 kohm |
| Zero Balance | ≤2 % FS / [2] |
