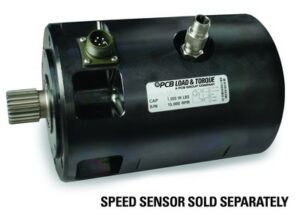

PCB 4115a/0xa Series Rotary Torque Sensor (Trans) 100 Lb-In
Model 4115A-02A:Torque Sensor, Rotary Transformer, 100 in-lb Capacity FS, Flanges and Splines per AND10262 & AND20002, Ceramic Bearings.
Available models include 4115A-02A, 4115A-03A, 4115A-04A, 4115A-05A, 4115A-06A.
Model 4115A-02A:Torque Sensor, Rotary Transformer, 100 in-lb Capacity FS, Flanges and Splines per AND10262 & AND20002, Ceramic Bearings.
This series includes the official PCB Piezotronics models listed below.
Key Features
Model 4115A-02A:Torque Sensor, Rotary Transformer, 100 in-lb Capacity FS, Flanges and Splines per AND10262 & AND20002, Ceramic Bearings.
- Measurement Range: 100 in-lb (11 Nm)
- Sensitivity: (±15%)2.5 mV/V (2.5 mV/V)
- Non-Linearity:
- Mounting: Flange w/ Splined Shaft
- Maximum Speed: 15000 RPM
Model & Varian
| Model | Measurement Range (Full Scale Capacity) | Sensitivity (±15 %) (output at rated capacity) | Non-Linearity | Hysteresis | Non-Repeatability | Overload Limit | Temperature Range (Operating) | Temperature Range (Compensated) |
|---|---|---|---|---|---|---|---|---|
| 4115A-02A | 100 in-lb / 11 Nm / [1] | 2.5 mV/V / [1] [2] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.03 % FS / [2] | 300 in-lb / 34 Nm | -65 to 285 °F / -54 to 141 °C | +70 to +170 °F / +21 to 77 °C |
| 4115A-03A | 200 in-lb / 23 Nm / [1] | 2.5 mV/V / [1] [2] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.03 % FS / [2] | 600 in-lb / 68 Nm | -65 to 285 °F / -54 to 141 °C | +70 to +170 °F / +21 to 77 °C |
| 4115A-04A | 500 in-lb / 55 Nm / [1] | 2.5 mV/V / [1] [2] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.03 % FS / [2] | 1500 in-lb / 170 Nm | -65 to 285 °F / -54 to 141 °C | +70 to +170 °F / +21 to 77 °C |
| 4115A-05A | 1000 in-lb / 115 Nm / [1] | 2.5 mV/V / [1] [2] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.03 % FS / [2] | 1500 in-lb / 170 Nm | -65 to 285 °F / -54 to 141 °C | +70 to +170 °F / +21 to 77 °C |
| 4115A-06A | 1000 in-lb / 115 Nm / [1] | 2.5 mV/V / [1] [2] | ≤0.05 % FS / [2] | ≤0.05 % FS / [2] | ≤0.03 % FS / [2] | 1500 in-lb / 170 Nm | -65 to 285 °F / -54 to 141 °C | +70 to +170 °F / +21 to 77 °C |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Measurement Range (Full Scale Capacity) | 100 in-lb / 11 Nm / [1] |
|---|---|
| Sensitivity (±15 %) (output at rated capacity) | 2.5 mV/V / [1] [2] |
| Non-Linearity | ≤0.05 % FS / [2] |
| Hysteresis | ≤0.05 % FS / [2] |
| Non-Repeatability | ≤0.03 % FS / [2] |
| Overload Limit | 300 in-lb / 34 Nm |
| Temperature Range (Operating) | -65 to 285 °F / -54 to 141 °C |
| Temperature Range (Compensated) | +70 to +170 °F / +21 to 77 °C |
| Temperature Effect on Output (Maximum) | ±0.002 %Reading/°F / ±0.0036 %Reading/°C / [3] |
| Temperature Effect on Zero Balance (Maximum) | ±0.002 %FS/°F / ±0.0036 %FS/°C / [2] [3] |
| Bridge Resistance | 350 Ohm / [1] |
| Excitation Frequency | 3.28 kHz |
| Excitation Voltage | 2 to 10 VAC rms / [4] |
| Bridge Current (at 5 VAC) | 50 mA |
| Insulation Resistance | >5000000 kohm |
| Zero Balance | ≤2 % FS / [2] |
