PCB Piezotronics HT426E01 1/2" Icp Preamplifier High Temperature
PCB Piezotronics · Acoustics & Microphone

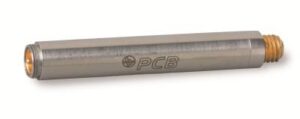

Model HT426E01:High temperature 1/2-inch preamplifier
Key Features
Model HT426E01:High temperature 1/2-inch preamplifier
- Nominal Microphone Diameter: 1/2"
- Temperature Range: -40 to +257 °F (-40 to +125 °C)
- Output Voltage: ±7 Vpk
- Size - Length: 3.5 in (89 mm)
Spesifikasi
| Nominal Microphone Diameter | 1/2" |
|---|---|
| Gain (re 1 kHz) | -0.06 dB / [1] [3] |
| Frequency Response (±0.1 dB) (re 1 kHz) | 6.3 to 126000 Hz / [3] [4] |
| Phase Linearity (±1 °) | 63 to 40000 Hz / [3] |
| Electrical Noise(at 22 °C) (A-weight) | ≤4.9 µV / [3] |
| Electrical Noise(at 22 °C) (Flat 20 Hz to 20 kHz) | ≤13.4 µV / [3] |
| Electrical Noise(at 120 °C) (A-weight) | ≤9.6 / [3] |
| Electrical Noise(at 120 °C) (Flat 20 Hz to 20 kHz) | ≤37.1 / [3] |
| Output Slew Rate | 2 V/µS / [1] |
| TEDS Compliant | Yes / [2] |
| Temperature Range (Operating) | -40 to +257 °F / -40 to +125 °C / [7] |
| Temperature Response | ±0.1 dB / [6] |
| Humidity Range (Non-Condensing) | 0 to 95 %RH |
