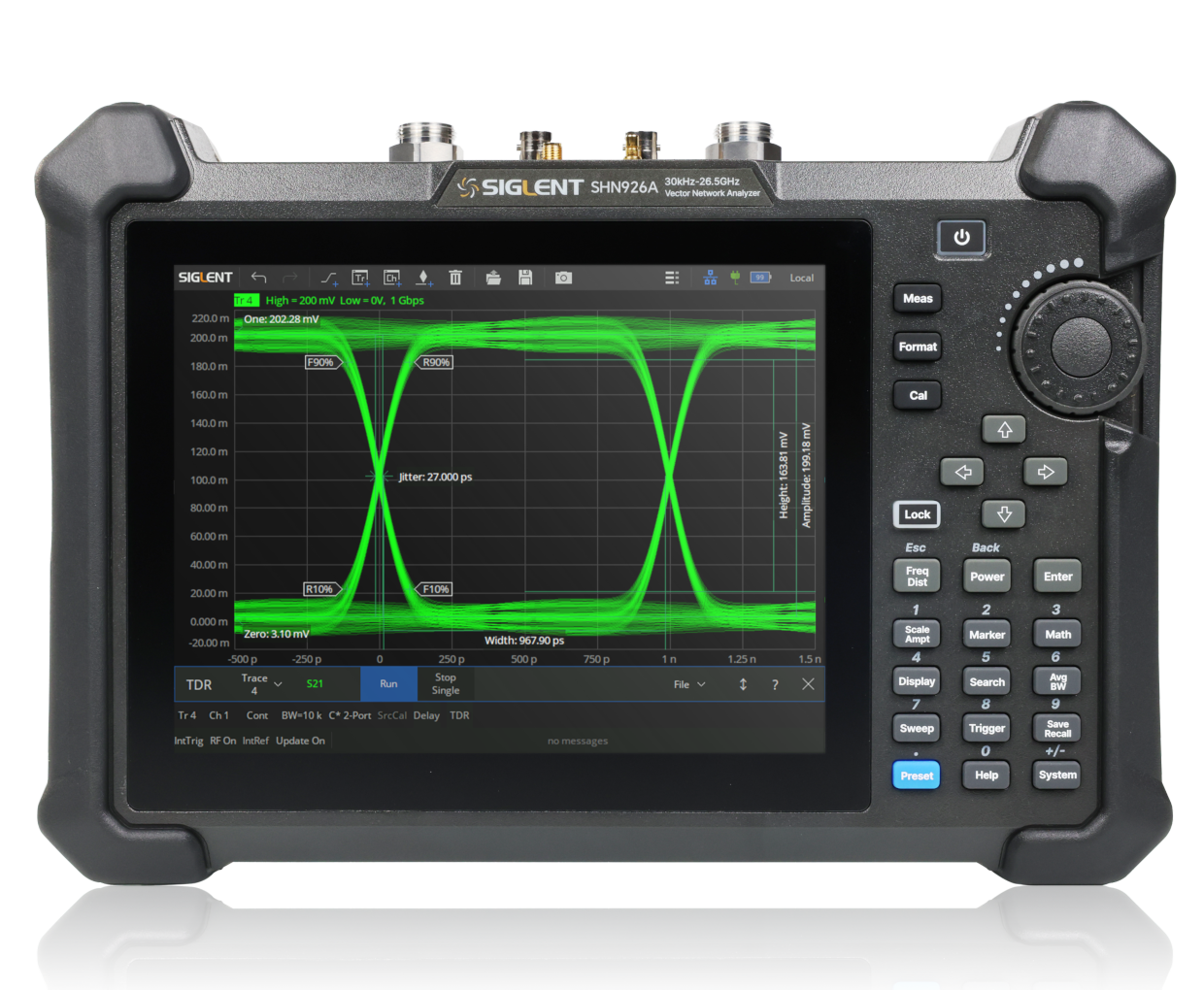

Siglent SHN900A Handheld Vector Network Analyzer 30 kHz to 26.5 GHz | Analyzer Jaringan Vektor
With its compact design and excellent performance, SHN900A series is unique in the portable vector network analyzer market.
Available models include SHN914A, SHN920A, SHN926A.
With its compact design and excellent performance, SHN900A series is unique in the portable vector network analyzer market. Despite its small size, it is fully functional and supports high-frequency measurement and various test modes. It is especially suitable for on-site testing and rapid troubleshooting, and it is a radio frequency testing tool carried by electronic engineers.
Key Features
- Frequency Range: 30 kHz~26.5 GHz
- Frequency resolution: 1 Hz
- Dynamic range: 110 dB (Typ.)
- Range of IFBW: 10 Hz~3 MHz
- Setting range of output level: -45 dBm ~ +10 dBm
- Standard Bias-Tee, 4h Working Time
- Standard GPS, Time and Location Information Saving
- Standard CAT/DTF Measurement，enhanced time-domain parameter analysis (TDR), spectrum analysis
Model & Varian
| Model | Frequency Range | Ports | Frequency Resolution | Level Resolution | Range of IFBW | Setting range of output level | Dynamic Range |
|---|---|---|---|---|---|---|---|
| SHN914A | 30kHz~14GHz | 2 | 1Hz | 0.05dB | 10 Hz~3 MHz | -45 dBm ~ + 10 dBm | 100dB |
| SHN920A | 30kHz~20GHz | 2 | 1Hz | 0.05dB | 10 Hz~3 MHz | -45 dBm ~ + 10 dBm | 100dB |
| SHN926A | 30kHz~26.5GHz | 2 | 1Hz | 0.05dB | 10 Hz~3 MHz | -45 dBm ~ + 10 dBm | 100dB |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SHN914A, SHN920A, SHN926A |
|---|---|
| Frequency Range | 30kHz~14GHz; 30kHz~20GHz; 30kHz~26.5GHz |
| Ports | 2 |
| Frequency Resolution | 1Hz |
| Level Resolution | 0.05dB |
| Range of IFBW | 10 Hz~3 MHz |
| Setting range of output level | -45 dBm ~ + 10 dBm |
| Dynamic Range | 100dB |
