Gambaran Umum

SIRIUS® XR is a high-performance, high-channel-count DAQ platform built for maximum flexibility and scalability. They combine SIRIUS® XHS and SIRIUS® X DAQ modules in a single enclosed rack chassis, giving you the freedom to configure the right inputs for large-scale measurement applications. With support for up to 288 channels per rack chassis and sampling rates up to 15 MS/s per channel, SIRIUS® XR delivers the speed, density, and precision demanded by the most challenging test environments.

Designed to fit seamlessly into your workflow, SIRIUS® XR supports high-speed data streaming, reliable local storage, or both, with an optional SBOX industrial computer for onboard processing and storage. The system is fully openDAQ SDK compliant for easy integration into custom environments and automated test setups.## SIRIUS®XR data acquisition systems introduction

SIRIUS® XR data acquisition systems represent the pinnacle of Dewesoft DAQ technology. It is our most advanced rack-based data acquisition platform, engineered for the highest-end and most demanding test applications.

SIRIUS® XR is built for teams that need more than raw speed alone, combining exceptional bandwidth, high dynamic range, flexible system architecture, and dependable operation in one powerful DAQ platform. From advanced automotive and aerospace testing to complex energy, industrial, and research applications, SIRIUS® XR delivers the performance and confidence required when measurement quality cannot be compromised.

What sets SIRIUS® XR apart is its ability to bring multiple measurement strengths together in a single, scalable system. It supports high-speed, high-bandwidth acquisition with SIRIUS® XHS technology, while SIRIUS® X amplifiers provide outstanding 24-bit dynamic range and signal quality for precision measurements. With a broad portfolio of signal conditioners and highly versatile universal amplifiers, the platform can adapt to virtually any signal or sensor type, including voltage, current, IEPE, charge, strain, RTD, thermocouple, counters, LVDT, and many others. This gives test engineers the freedom to build exactly the right system for each application, without compromise.

SIRIUS® XR is also designed for modern, connected test environments. Full openDAQ SDK compliance enables straightforward integration with custom software, automated workflows, and open measurement ecosystems. Combined with scalable rack configurations, high-speed data streaming, advanced synchronization, onboard processing and logging options, and award-winning DewesoftX software included free of charge, SIRIUS® XR sets a new benchmark for premium data acquisition.

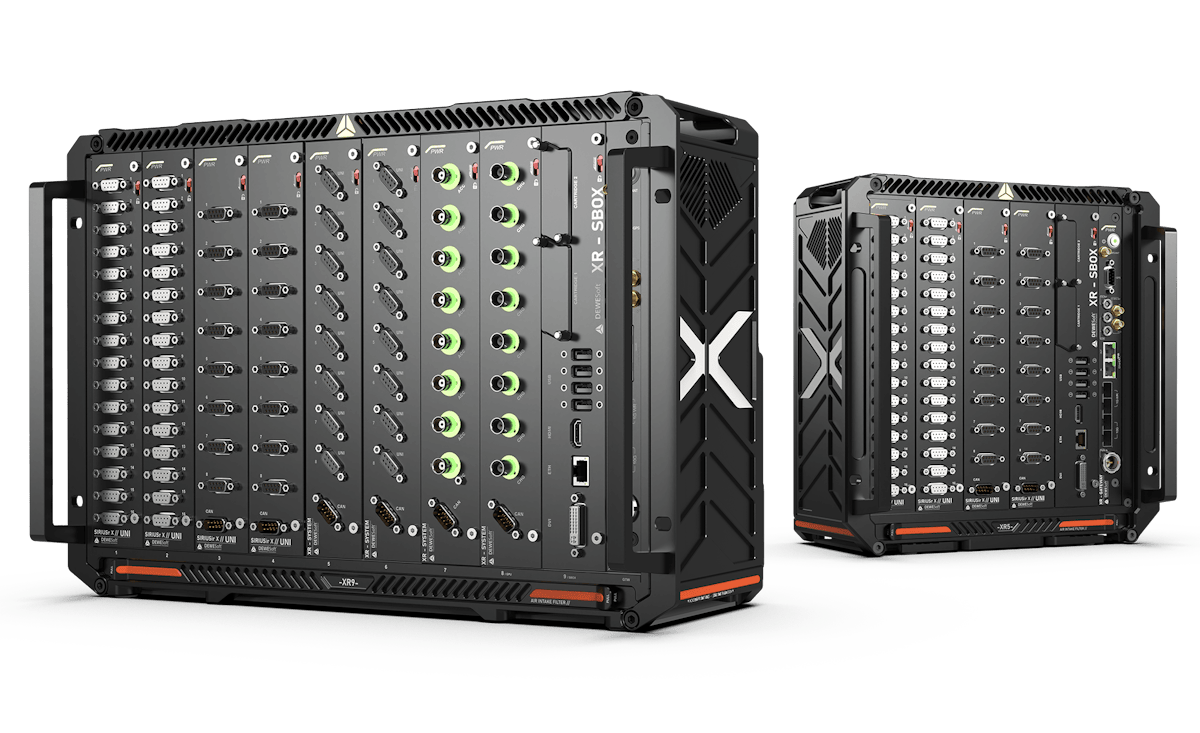

SIRIUS® XR9 data acquisition system

SIRIUS® XR9 is a powerful high-channel-count data acquisition system built for the most demanding test and measurement applications. Housed in a standard 19-inch rack with a compact 7U form factor, it delivers exceptional scalability, flexibility, and performance in a space-efficient design. Whether used in advanced laboratory environments, industrial test benches, or large distributed setups, XR9 lets you configure a system precisely to your requirements while maintaining synchronized, high-quality measurements throughout.

Flexible configuration options include:

• Up to 9 SIRIUS® XHS and/or SIRIUS® X acquisition cards for maximum channel density.

• Or an integrated SBOX computer with up to 8 SIRIUS® XHS and/or SIRIUS® X acquisition modules for advanced onboard processing and high-speed data logging.

• Up to 72 SIRIUS® XHS analog channels.

• Up to 288 SIRIUS® X channels for high-density measurement applications

• Up to 72 counter inputs.

• Up to 9 CAN/CAN-FD ports.

For larger and more complex test environments, multiple XR9 systems can be easily interconnected in daisy-chain or star topology. Built-in PTPv2 synchronization ensures precise time alignment across all units, making XR9 an ideal solution for large-scale, distributed, and fully synchronized measurement systems.

SIRIUS® XR5 data acquisition system

SIRIUS® XR5 is a more compact yet powerful rack-mounted data acquisition system designed for applications where space efficiency and high performance must go hand in hand. With its compact 7U form factor, XR5 delivers the same flexibility, precision, and scalability as larger SIRIUS® XR systems, making it an ideal choice for mobile, in-vehicle, industrial, and laboratory test environments. It enables you to build a system tailored to your application while maintaining synchronized, high-quality measurements in a compact rack footprint.

Flexible configuration options include:

• Up to 5 SIRIUS® XHS and/or SIRIUS® X acquisition slices for versatile system configurations

• Or an integrated SBOX computer with up to 4 SIRIUS® XHS and/or SIRIUS® X acquisition slices for advanced onboard processing and high-speed data logging

• Up to 40 SIRIUS® XHS analog channels

• Up to 160 SIRIUS® X channels for high-density measurement applications

• Up to 40 counter inputs

• Up to 5 CAN/CAN-FD ports

For larger and more complex test environments, multiple XR5 systems can be easily interconnected in daisy-chain or star topology. Built-in PTPv2 synchronization ensures precise time alignment across all units, making XR5 a powerful solution for distributed and fully synchronized measurement systems.

Available signal amplifiers

SIRIUS® XR data acquisition systems offer very wide array of signal conditioning front-ends from universal inputs to dedicated signal amplifiers.

SIRIUS® X and SIRIUS® XHS amplifiers deliver high-quality, versatile data acquisition across a wide range of measurement types, including voltage, current, strain, vibration, temperature, and many more. Designed for flexibility and precision, they provide a powerful foundation for everything from general-purpose testing to the most demanding advanced measurement applications.

Together, SIRIUS® X and SIRIUS® XHS provide advanced signal conditioning, broad sensor compatibility, and precise, reliable data capture for even the most complex measurement applications.

Gateway for seamless power, connectivity, and synchronization

Every SIRIUS® XR system includes a dedicated GATEWAY slice that provides power management, system connectivity, and precise synchronization, even without an external processing unit. Designed for maximum flexibility, it supports a wide 12 to 48 VDC power range, making it suitable for laboratory setups, test benches, mobile testing, and in-vehicle applications.

Advanced synchronization options, including PTPv2, IRIG, GPS, and PPS, with future-ready White Rabbit support, ensure highly accurate system timing down to the sub-nanosecond level. Dual 10 GbE uplinks via flexible SFP interfaces, copper or fiber, enable fast, reliable data transfer and easy integration into modern test networks.

For navigation and mobility applications, the GATEWAY can also be equipped with an optional high-performance GNSS receiver for precise positioning. With up to 100 Hz update rate and optional RTK support, it delivers the accuracy required for demanding dynamic test environments.

For seamless real-time data exchange with third-party EtherCAT masters (such as LabView, Beckoff, MTS, Acontis, etc.), the gateway is also equipped with EtherCAT interface (100 Mbps). EtherCAT support will be available with future firmware upgrade.

SBOX computer: optional high-performance processing and data logging

SIRIUS® XR can be equipped with an integrated SBOX industrial computer, providing the processing power needed for advanced measurement, real-time signal processing, and high-speed data logging.

Built around an 11th Gen Intel Xeon CPU with 6 cores and 12 threads, it delivers the performance required for demanding test applications while keeping the entire DAQ system compact and fully integrated.

With 64 GB of memory, upgradeable to 128 GB, the system handles data-intensive applications with ease. High-speed internal and removable SSD drives provide reliable storage for continuous recording and high-throughput data capture, making the SBOX option ideal for standalone operation, onboard processing, and long-duration tests.

Designed for seamless integration into modern test environments, the SBOX also offers a full range of connectivity options:

• Gigabit LAN and WLAN for network connectivity

• Two PCI Express (PCIe) ports for expansion add-ons

• Four USB 3.1 ports for DAQ devices and peripherals

• HDMI and DVI outputs for external displays

Fully openDAQ SDK compliant

SIRIUS® XR data acquisition systems are fully compliant with openDAQ, the open-source data acquisition SDK built on industry standards for interoperability and integration.

openDAQ enables easy device discovery, configuration, and data streaming from openDAQ-compatible DAQ devices, helping you integrate SIRIUS® XR into custom software environments and automated test systems with minimal effort.

Designed for ease of use and high performance, the openDAQ SDK supports Linux, macOS, and Windows, as well as popular programming languages such as Python and C++. This gives developers the freedom to work in their preferred environment while building flexible, future-ready measurement applications around the SIRIUS® XR platform.

With openDAQ compliance, SIRIUS® XR fits naturally into modern, open, and scalable test environments.

External calibration reference

For fast and convenient system verification, SIRIUS® XR systems include an external calibration reference input. Connected via a 2-pin LEMO 00 B Series connector on the getaway slice, the reference signal can be routed in software to all input channels at once to verify amplifier performance and measurement accuracy.

* Support for the external calibration reference depends on the selected SIRIUS® XHS and SIRIUS® X rack slices.Contact your local sales officefor compatibility details.

Extreme synchronization with state-of-the-art timing technology

SIRIUS® XR delivers exceptional synchronization performance using advanced timing and synchronization technology. Built around high-precision PTPv2 synchronization, it ensures accurate time alignment across all channels and devices, even when combining sigma-delta and SAR ADC inputs. Intelligent delay compensation and optimized filtering design maintain precise timing and signal integrity across the entire system.

Multiple SIRIUS® XR systems can be synchronized seamlessly using PTPv2, IRIG, NTP, or PPS, enabling accurate absolute time synchronization through internal time servers or GPS references. With future-ready support for ultra-precise White Rabbit technology, SIRIUS® XR is designed to achieve synchronization accuracy down to the sub-nanosecond level.

SIRIUS® XR is also fully backward compatible with other Dewesoft data acquisition systems, allowing easy synchronization with other Dewesoft DAQ devices. This makes it easy to expand existing systems and build larger, fully synchronized measurement networks.

Smart locking mechanism for secure and easy module handling

SIRIUS® XR slice modules feature a smart locking mechanism that keeps each module firmly and securely in place inside the chassis, ensuring reliable operation in demanding test environments. The mechanism is designed for both stability and convenience, helping maintain a solid mechanical connection while allowing fast service access when needed.

For quick removal or replacement, each slice includes a simple click-to-release button that makes module handling easy and efficient. This allows users to reconfigure or service the system with minimal effort, reducing downtime and simplifying system changes.
