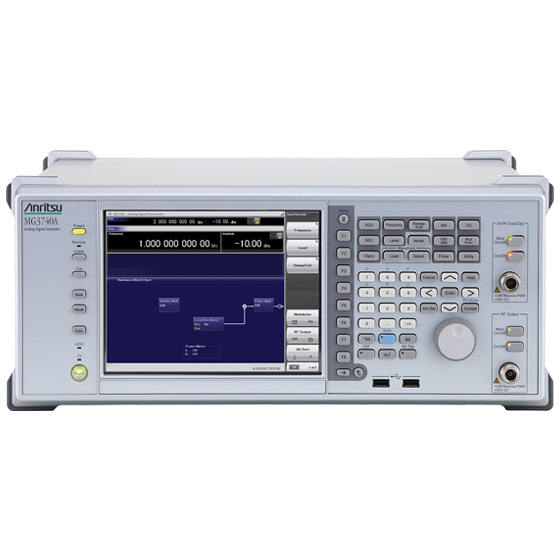

Anritsu Analog Signal Generator MG3740A
Analog Signal Generator, with excellent RF specifications, including Single Side Band phase noise, output level, and versatile AM, FM, ΦM, and Pulse modulation functions…
Analog Signal Generator, with excellent RF specifications, including Single Side Band phase noise, output level, and versatile AM, FM, ΦM, and Pulse modulation functions Anritsu’s Analog Signal Generator MG3740A has excellent RF specifications, including SSB phase noise and output level as well as versatile modulation functions (AM/FM/ΦM/Pulse). The MG3740A is the ideal solution for high-purity signal source for testing analog radio Rx characteristics. Moreover, adding the digital modulation option supports generation of narrowband digital modulation signals.
Spesifikasi
| Adding additional analog modulation input [Option] | Adding additional analog modulation input options extends to two internal modulation sources (AM/FM/ΦM) and one external modulation source supporting simultaneous two-signal modulation. |
|---|---|
| Two independent RF outputs using Dual-RF [Option] | Supports "Wanted + Interference wave for Rx characteristics tests", "Amp intermodulation characteristics evaluation" and "RF/LO signal source for Mixer evaluations". |
| USB power sensor (Sold separately) | Supports connection of two USB power sensors max. |
| Expansion to narrowband digital modulation signal generator [Option] | Adding the digital modulation function [Option] supports generation of narrowband digital modulation signals. |
| BER measurement function [Option] | Input bit rate: 100 bps to 40 Mbps |
| Frequency range | 100 kHz to 2.7/4/6 GHz [1stRF Option] |
| RF modulation bandwidth | 2 MHz |
| Input bit rate | 100 bps to 40 Mbps |
