CONTEC CPI-SPA01-2 — SPACER SET (x2) for Raspberry Pi 5
This product is a spacer set that allows you to connect a CPI series expansion cards to a Raspberry Pi 5 with an active cooler (SC1148) attached.
Available models include CPI-RAS, CPI-AI-1208LI, CPI-AO-1602LC, CPI-DI-16L, CPI-DIO-0808L, CPI-DIO-0808RL, CPI-DO-16L, CPI-DO-16RL, CPI-RRY-16, CPI-CNT-3201I, CPI-DIN01, CPI-SPA01-2, CPI-SSI-4C.
This product is a spacer set that allows you to connect a CPI series expansion cards to a Raspberry Pi 5 with an active cooler (SC1148) attached.
Key Features
- This spacer and connector set is for mounting HAT size cards to the Raspberry Pi 5.
Model & Varian
| Model | Description |
|---|---|
| CPI-RAS | RAS/RTC Raspberry Pi card |
| CPI-AI-1208LI | Analog input Raspberry Pi card 12-bit 8ch (differential 4ch) voltage input/current input |
| CPI-AO-1602LC | Analog Output Raspberry Pi card 16bit 2ch voltage/current output |
| CPI-DI-16L | Digital input Raspberry Pi card 16ch (isolated 12 - 24VDC) |
| CPI-DIO-0808L | Digital I/O Raspberry Pi card 8ch/8ch (isolated 12 - 24VDC) |
| CPI-DIO-0808RL | Digital I/O Raspberry Pi card 8ch/8ch (negative-common isolated 12 - 24VDC) |

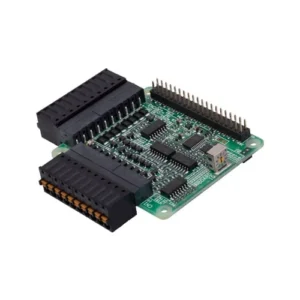

| CPI-DO-16L | Digital output Raspberry Pi card 16ch (isolated 12 - 24VDC) |
| CPI-DO-16RL | Digital output Raspberry Pi card 16ch (negative-common isolated 12 - 24VDC) |
| CPI-RRY-16 | Solid-state relay Raspberry Pi card 16ch (Contacts A isolated - 30VDC) |
| CPI-CNT-3201I | Counter Input Raspberry Pi card 32bit Up-Down Counter 1ch Single-Phase/2-Phase (A/B/Z) |
| CPI-DIN01 | DIN Rail Mount Kit for Raspberry Pi card |
| CPI-SPA01-2 | SPACER SET (x2) for Raspberry Pi 5 |
| CPI-SSI-4C | Thermocouple Input Raspberry Pi Expansion Card 4ch |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Type | Connector |
|---|---|
| Compatible With | Raspberry Pi 5 with active cooler (SC1148) |
| Pin Header | 40-pin pin header x2, height 23.15mm |
| Packing List | Hexagonal spacers (male) x8; 40-pin pin header x2; Setup Guide x1 |
| Optional Product | DIN Rail Mount Kit CPI-DIN01 |
