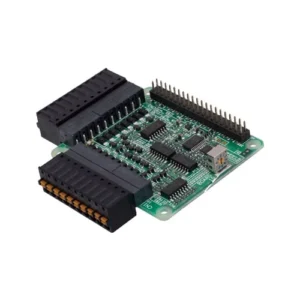

CONTEC CPI-DO-16L — Digital output Raspberry Pi card 16ch (isolated 12 - 24VDC)
This product is Digital output Raspberry Pi card 16ch for even greater Raspberry Pi functionality.
Available models include CPI-RAS, CPI-AI-1208LI, CPI-AO-1602LC, CPI-DI-16L, CPI-DIO-0808L, CPI-DIO-0808RL, CPI-DO-16L, CPI-DO-16RL, CPI-RRY-16, CPI-CNT-3201I, CPI-DIN01, CPI-SPA01-2, CPI-SSI-4C.
This product is Digital output Raspberry Pi card 16ch for even greater Raspberry Pi functionality. The 40-pin GPIO pin header connector of a Raspberry Pi computer can be used for adding functionality through stacked connections to HAT (Hardware Attached on Top) size expansion cards and the card adds industrial computer availability to the Raspberry Pi.
Key Features
- Standard Warranty 3 yrs
- Extended Warranty Available
- Push-type terminal block for easy wiring
- Stacked connection of up to 8 cards
- API compatible with PC expansion cards and Python-compatible API
- Opto-coupler isolated open-collector output (current sink)
- Opto-coupler bus isolation
- Adaptable to a temperature range between -20 to 60°C
Model & Varian
| Model | Description |
|---|---|
| CPI-RAS | RAS/RTC Raspberry Pi card |
| CPI-AI-1208LI | Analog input Raspberry Pi card 12-bit 8ch (differential 4ch) voltage input/current input |
| CPI-AO-1602LC | Analog Output Raspberry Pi card 16bit 2ch voltage/current output |
| CPI-DI-16L | Digital input Raspberry Pi card 16ch (isolated 12 - 24VDC) |
| CPI-DIO-0808L | Digital I/O Raspberry Pi card 8ch/8ch (isolated 12 - 24VDC) |
| CPI-DIO-0808RL | Digital I/O Raspberry Pi card 8ch/8ch (negative-common isolated 12 - 24VDC) |
| CPI-DO-16L | Digital output Raspberry Pi card 16ch (isolated 12 - 24VDC) |
| CPI-DO-16RL | Digital output Raspberry Pi card 16ch (negative-common isolated 12 - 24VDC) |
| CPI-RRY-16 | Solid-state relay Raspberry Pi card 16ch (Contacts A isolated - 30VDC) |
| CPI-CNT-3201I | Counter Input Raspberry Pi card 32bit Up-Down Counter 1ch Single-Phase/2-Phase (A/B/Z) |
| CPI-DIN01 | DIN Rail Mount Kit for Raspberry Pi card |
| CPI-SPA01-2 | SPACER SET (x2) for Raspberry Pi 5 |
| CPI-SSI-4C | Thermocouple Input Raspberry Pi Expansion Card 4ch |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Series | PC-HELPER CPI |
|---|---|
| Bus Specification | Raspberry Pi HAT (40pin GPIO) |
| Size | HAT Size |
| Used Connector | 2x 3.81mm-pitch 10-pin 2-piece terminal block |
| Output Channels | 16-ch |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Output) | 12 to 24VDC |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Supported OS | Linux |
