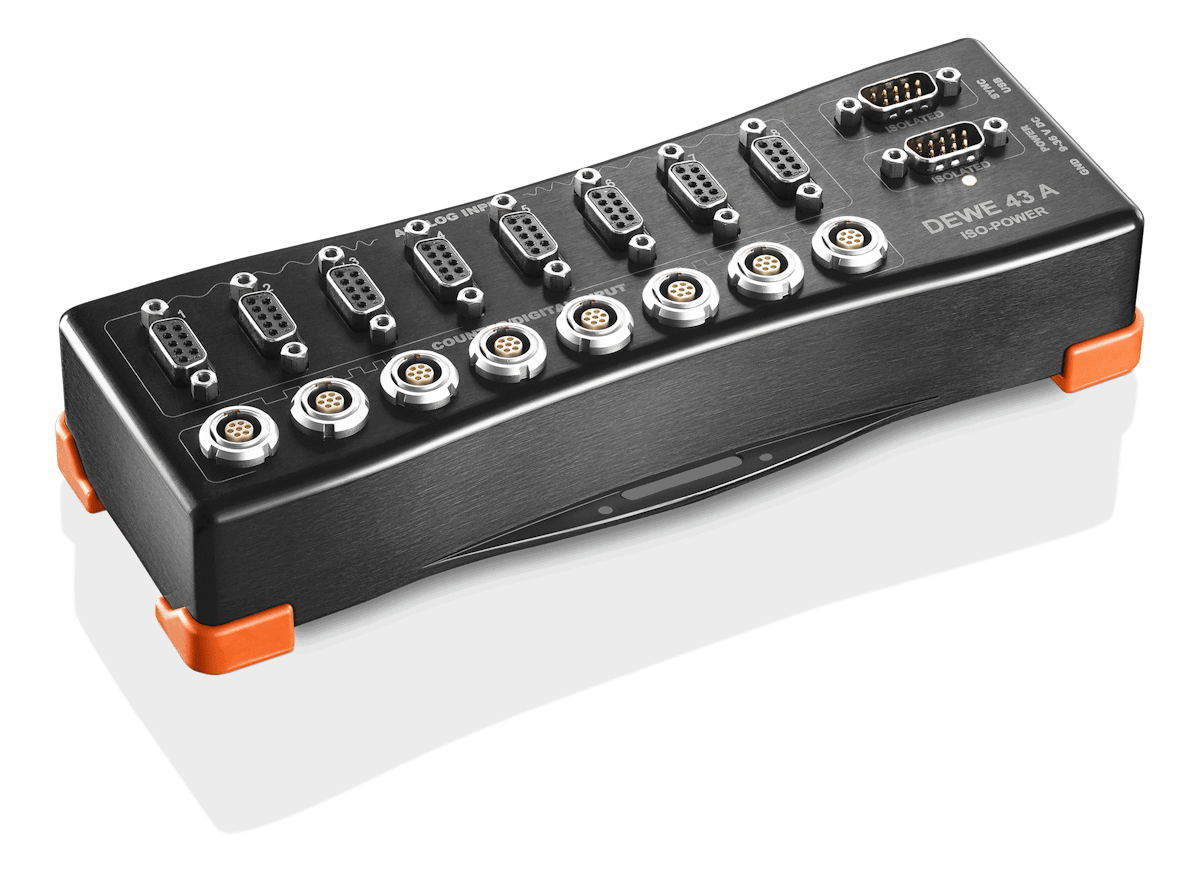

Dewesoft DEWE-43A | Sistem Akuisisi Data

Gambaran Umum

Award-winning and versatile 8-channelUSB data acquisition systemwith unmatched price/performance ratio and hand-size footprint. 8 universal analog inputs,8 digital/counter/encoder inputs, and two high-speed CAN bus inputs.

Reliable Data Acquisition System

DEWE-43A weighs under two pounds and is small enough to fit in your hand. And yet inside this small box beats the heart of a giant.

When you need an instrument with stellar specifications, and yet with a budget-friendly price tag, DEWE-43A will not let you down.

But don’t get confused by a great price. The build quality is not compromised. We carefully design our instruments and CNC every unit out of a solid block of aluminum. This way, the instrument is not only tough but also light for maximum portability.

DEWE-43A is an ideal solution for various dynamic data acquisition applications. It will help you solve the most demanding test and measurement challenges. It is used around the world and really proven to be aSwiss Army Knifefor every test and measurement engineer.

Intuitive and easy to use

Using Dewesoft data acquisition systems does not require any complex configuration setups or programming knowledge. We also kept this in mind when designing SIRIUS® XHS.

Plug-and-play technology with smart sensors and advanced TEDS is supported by default. This makes performing measurements with the Dewesoft DAQ systems easier than riding a bike. You will be ready to measure in no time.

Getting precise and graphically rich results is easier than ever. The drag-and-drop user interface of bundled DewesoftX software will allow you to define your measurement screens and results in no time. A rich mathematics library for signal processing is also available one click away. Just connect the right widget with your input channel and Voila! Works like magic.

SuperCounters®: precise speed and angle measurement with counter and encoder sensors

Dewesoft data acquisition systems utilize a patented and registered trademark technology calledSuperCounter®.

Counter inputs can measure the RPM and angle of rotating machines. In comparison to standard counters, which only output integer numbers one sample later (e.g. 1, 1, 2, 2, 3, 4), the Dewesoft SuperCounter inputs are able to extract accurate values like 1.37, 1.87, 2.37, etc. fully synchronized for time and amplitude.

This is done by measuring the exact time of the rising edge of the signal with an additional counter. Our SuperCounter inputs work on a 102.4 MHz time base, independent of the current analog sampling rate.

Counter inputs are fully synchronized with analog, CAN bus, and other data sources to enable easy applications like balancing, order tracking, and torsional vibrations.

Synchronization

DEWE-43A data acquisition hardware is capable to acquire different signals like analog, CAN, counter, encoder, and digital. With the power of included DewesoftX software, you can easily acquire and combine data from additional interfaces like GPS, Flexray, XCP, Ethernet, Serial, PCM telemetry, and many more.

Even though each data source can have different sampling rates, all your data will be perfectly synchronized down to microsecond accuracy. All these thanks to our different supporting timing and GPS synchronization technologies.

Synchronized videocan be added for free. Dewesoft includes A powerful video engine and has support for simple DirectX web cameras,high-speed video cameras that are fully synced to analog data, and also 3rd party thermal cameras.

Expand Channel Count

If the channel count on one DEWE-43A DAQ instrument is not enough our flexible design allows you to easily extend channels at any time.

You can either synchronize multiple DEWE-43A instruments together or extend input channel count with any of our other DAQ systems such as SIRIUS or KRYPTON, or even navigational instruments or CAN interfaces.

The configuration for working with multiple instruments is as easy as working with a single unit and thanks to synchronization technologies (internal or external IRIG, GPS) data will always be perfectly synchronized.

CAN interface

DEWE-43A is equipped with two CAN ports for analyzing CAN bus data.

CAN interface supports transmitting and receiving CAN 2.0b data at a full speed of 1 Mbit/s.Both CAN ports are also compatible and allow decoding of J1939,J1587, and OBD II on CAN data as well.

CAN channels are isolated for worry-free CAN acquisition in noisy environments and for maximum signal quality.

Award Winner

DEWE-43A received a Product of the Year award fromNASA’s Tech Briefs magazine.

DEWE-43A stood out from the competition of brands such as National Instruments, Autodesk, Honeywell, and others. DEWE-43A got more votes than all other contenders combined, which makes this win even more significant.
