EA Autoranging Bench Power Supplies | Catu Daya Bench Autoranging EA

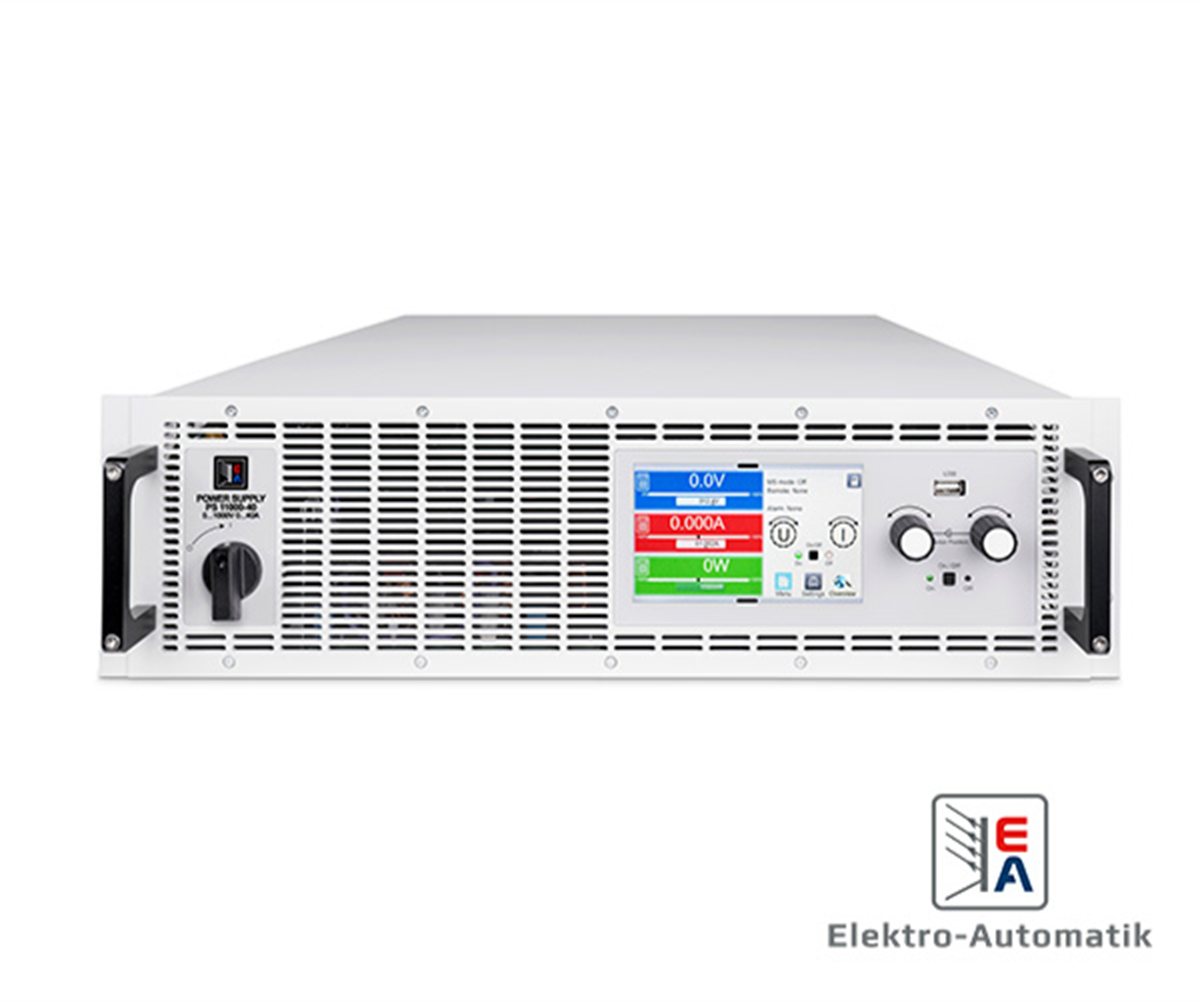

The EA Elektro-Automatik line of benchtop programmable DC power supplies come in desktop and tower formfactors and range in power from 100W up to 1500W.
Available models include EA PSI 9500 10 DT, EA PSI 9200 25 DT, EA PSI 9080 40 DT, EA PSI 9200 04 DT, EA PSI 9040 40 DT, EA PSI 9360 15 DT, EA PSI 9500 06 DT, EA PSI 9750 06 DT, EA PSI 9750 04 DT, EA PSI 9360 10 DT, EA PSI 9080 60 DT, EA PSI 9080 10 DT, EA PSI 9040 60 DT, EA PSI 9200 10 DT, EA PSI 9040 20 DT, EA PSI 9080 20 DT, EA PSI 9200 15 DT.
The EA Elektro-Automatik line of benchtop programmable DC power supplies come in desktop and tower formfactors and range in power from 100W up to 1500W. Select models have advanced features such as autoranging and a built-in function generator. Autoranging automatically adjusts current higher at lower voltages, and vice versa, to maintain full output power across a range of voltage/current levels. The function generator can provide many waveforms such as sine, triangle, rectangle, and trapezoid, and can also output custom arbitrary waveforms. All bench supplies feature a TFT touchscreen display for intuitive control and test setup. This easy-to-use interface enables you to configure tests quickly and operate the instrument intuitively. The EA line of desktop and tower space-saving DC power supplies and loads are compact, economical and yet have advanced features uncommon with most benchtop units in the market.
Autoranging Gives Flexibility
EA Elektro-Automatik products have autoranging, which allows the supply or load to operate at max power across a range of voltages and currents, down to 33% of the rated output maximum.
Compare this to traditional power supplies, which can only output their rated power at their max voltage and max current. Applying the maximum voltage to a device under test (DUT) is rare, which means most of the time, that supply is not being used to its full potential.
How does it work? EA sources automatically offer more current at lower voltages (or more voltage at lower currents), allowing the supply to continue outputting the rated power. This allows a single source to address multiple voltage and current combinations that would otherwise require multiple supplies.
Model & Varian
| Model | Power | Voltage | Current Range |
|---|---|---|---|
| EA PSI 9500 10 DT | 0–1.5 kW | 0–500 V | 0–10 A per channel |
| EA PSI 9200 25 DT | 0–1.5 kW | 0–200 V | 0–25 A per channel |
| EA PSI 9080 40 DT | 0–1 kW | 0–80 V | 0–40 A per channel |
| EA PSI 9200 04 DT | 0–320 W | 0–200 V | 0–4 A per channel |
| EA PSI 9040 40 DT | 0–1 kW | 0–40 V | 0–40 A per channel |
| EA PSI 9360 15 DT | 0–1.5 kW | 0–360 V | 0–15 A per channel |
| EA PSI 9500 06 DT | 0–1 kW | 0–500 V | 0–6 A per channel |
| EA PSI 9750 06 DT | 0–1.5 kW | 0–750 V | 0–6 A per channel |
| EA PSI 9750 04 DT | 0–1 kW | 0–750 V | 0–4 A per channel |
| EA PSI 9360 10 DT | 0–1 kW | 0–360 V | 0–10 A per channel |
| EA PSI 9080 60 DT | 0–1.5 kW | 0–80 V | 0–60 A per channel |
| EA PSI 9080 10 DT | 0–320 W | 0–80 V | 0–10 A |
| EA PSI 9040 60 DT | 0–1.5 kW | 0–40 V | 0–60 A per channel |
| EA PSI 9200 10 DT | 0–640 W | 0–200 V | 0–10 A per channel |
| EA PSI 9040 20 DT | 0–320 W | 0–40 V | 0–20 A |
| EA PSI 9080 20 DT | 0–640 W | 0–80 V | 0–20 A per channel |
| EA PSI 9200 15 DT | 0–1 kW | 0–200 V | 0–15 A per channel |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Power | 0–1.5 kW; 0–1 kW; 0–320 W; 0–640 W |
|---|---|
| Voltage | 0–500 V; 0–200 V; 0–80 V; 0–40 V; 0–360 V; 0–750 V |
| Current Range | 0–10 A per channel; 0–25 A per channel; 0–40 A per channel; 0–4 A per channel; 0–15 A per channel; 0–6 A per channel; 0–60 A per channel; 0–10 A; 0–20 A; 0–20 A per channel |
