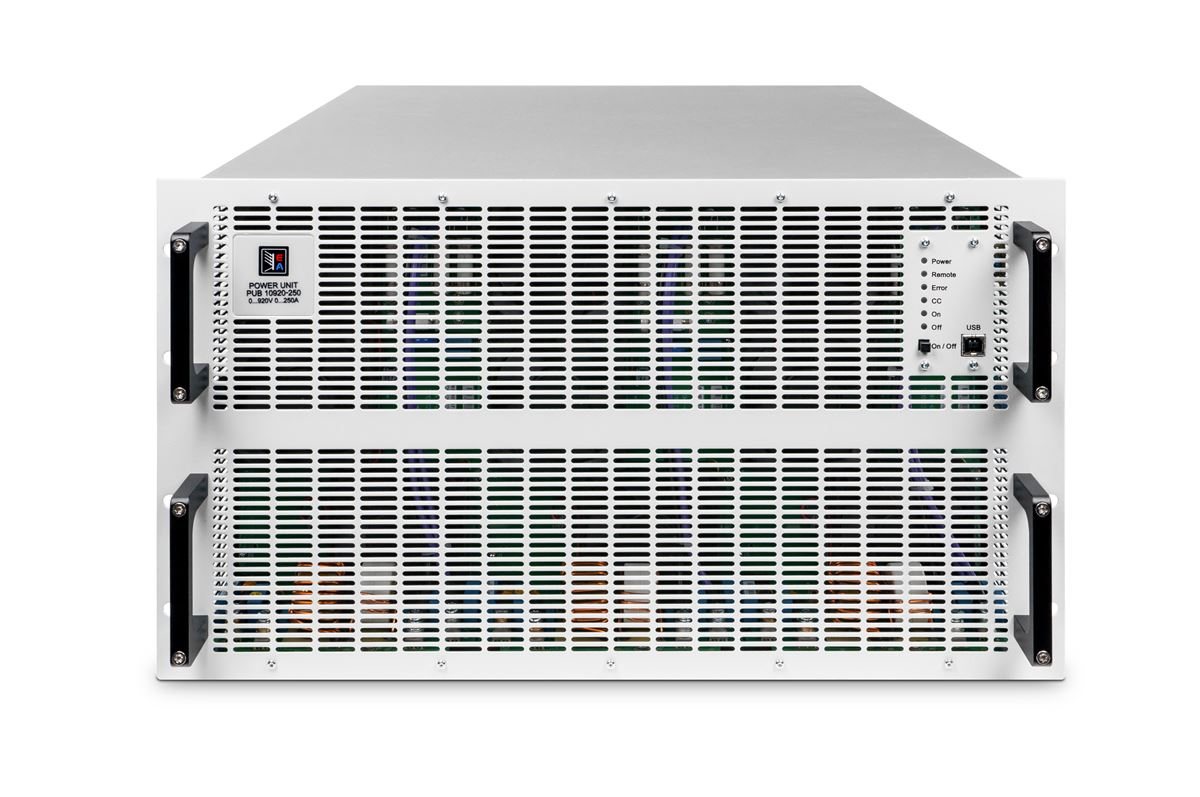

EA-PUB/PUL/PU Industrial Power Units | Unit Daya Industri EA-PUB/PUL/PU

EA-10000 Industrial Series sets a new benchmark in power density—delivering up to 300 kW in a single rack with a sleek, display-free design.

Available models include EA PU 10920 125 4U, EA PU 12000 40 4U, EA PU 10200 420 4U, EA PU 11000 80 4U, EA PU 11500 60 4U, EA PU 10750 120 4U, EA PU 10080 1000 4U, EA PU 10360 240 4U, EA PU 10500 180 4U, EA PU 10060 1000 4U, EA-PU 10000 6U, EA PU 11000 160 6U, EA PU 12000 80 6U, EA PU 10500 360 6U, EA PU 11500 120 6U, EA PU 10750 240 6U, EA PU 10920 250 6U, EA PU 10360 480 6U, EA-PUB 10000 4U, EA PUB 10750 120 4U, EA PUB 10080 1000 4U, EA PUB 10200 420 4U, EA PUB 11000 80 4U, EA PUB 11500 60 4U, EA PUB 10500 180 4U, EA PUB 10360 240 4U, EA PUB 10920 125 4U, EA PUB 10060 1000 4U, EA PUB 12000 40 4U, EA-PUB 10000 6U, EA PUB 11000 160 6U, EA PUB 10750 240 6U, EA PUB 11500 120 6U, EA PUB 10360 480 6U, EA PUB 12000 80 6U, EA PUB 10920 250 6U, EA PUB 10500 360 6U, EA-PUL 10000 4U, EA PUL 10060 1000 4U, EA PUL 12000 40 4U, EA PUL 10360 240 4U, EA PUL 10500 180 4U, EA PUL 11000 80 4U, EA PUL 11500 60 4U, EA PUL 10920 125 4U, EA PUL 10750 120 4U, EA PUL 10200 420 4U, EA PUL 10080 1000 4U, EA-PUL 10000 6U, EA PUL 10920 250 6U, EA PUL 11000 160 6U, EA PUL 10360 480 6U, EA PUL 11500 120 6U, EA PUL 10500 360 6U, EA PUL 10750 240 6U, EA PUL 12000 80 6U.

Konsultasi via WhatsApp via Email
EA-PUB/PUL/PU Industrial Power Units

EA-10000 Industrial Series sets a new benchmark in power density—delivering up to 300 kW in a single rack with a sleek, display-free design. Offering a wide range of programmable DC power supplies, bidirectional units, and regenerative loads, it ensures high safety, >96% energy recovery, and unified firmware for seamless integration and efficient multi-unit system development. #### Industrial series are available for these power unit types: * Power Unit Bidirectional (PUB) – bidirectional power supply * Power Unit Load (PUL) – regenerative electronic load * Power Unit (PU) – conventional power supply

Industrial series are available for these power unit types

Power

Up to 60 kW

Voltage

Up to 2000 V

Current

Up to 1000 A

EA-10000 Industrial series

  • Power Unit Bidirectional (PUB) - bidirectional power supply
  • Power Unit Load (PUL) - regenerative electronic load
  • Power Unit (PU) - conventional power supply
  • Overview
  • Models
  • Videos
  • Technical Docs
  • Software

Powerful, Bidirectional and Regenerative

Powerful performance

Powerful rack performance

Powerful efficiency

  • 6U Power with 60 kW including 21 models
  • 4U Power with 30 kW including 29 models
  • Large selection of 50 models for special applications
  • This includes Programmable DC power supplies, Programmable bidirectional DC power supplies, and Regenerative electronic loads
  • A 19“ rack with 42 U for a system with 300 kW
  • One unit with up to 13 racks with 64 units of 60 kW each
  • For high power applications up to 3.84 MW
  • Fewer units for a high-power system
  • Less rack space required
  • Less operating costs

Smart Features, Scalable Options, and Peak Efficiency

The High-tech Features:

Optionally available:

For efficiency and sustainability:

To make a multi-device system behave like a single device

Regenerative load operation with energy recovery into the grid

The principle of automatic switching

Ramp function, arbitrary generator, LUT, integrated PV characteristic curve

21 models in 60 kW series and 29 models in 30 kW series

  • DC input / output with autoranging
  • Digital (FPGA) controlled DC input / output U – I – P – R
  • Latest SiC technology
  • LED‘s in the front to indicate the status of the device
  • AC mains input with extended range (380 V – 480 V, 3ph AC)
  • Built-in interfaces: Ethernet, USB, Analog
  • Stainless steel water cooling
  • Optional Interfaces: CAN, CANopen, EtherCAT, RS232, Profibus, Profinet, Modbus, Ethernet
  • Master-Auxiliary-Bus and Share-Bus
  • Energy recovery up to over 96 %.
  • Autoranging
  • Function generator and more
  • Variety of devices for every requirement

For Future-Oriented Applications

Advanced power applications

  • Tests of batteries and fuel cells
  • Simulations of batteries and solar systems
  • The complete discharge of batteries for recycling
  • The power supply of electrolysis plants
  • Sustainable power electronics for aviation applications
  • For use in ATE systems and automated process control systems

Optional Water Cooling available for 4U and 6U models

Industrial environments can be harsh with high ambient temperatures, dust, and other contaminants. In addition, industrial facilities often have to comply with stringent environmental regulations regarding heat and noise emissions. Water-cooled systems can provide stable operation in such conditions, as the cooling efficiency is less affected by the external environment compared to air cooling. Furthermore, water-cooled power supplies can help to meet the standards required by reduced noise levels. Learn more in this video.

  • Efficient Heat Dissipation
  • Reduced Noise and Heat Impact
  • Reliable in Harsh Conditions

Model & Varian

Perbandingan Model & Varian
ModelPowerVoltageCurrent Range
EA PU 10920 125 4U0–30 kW0–920 V0–125 A
EA PU 12000 40 4U0–30 kW0–2000 V0–40 A
EA PU 10200 420 4U0–30 kW0–200 V0–420 A
EA PU 11000 80 4U0–30 kW0–1000 V0–80 A
EA PU 11500 60 4U0–30 kW0–1500 V0–60 A
EA PU 10750 120 4U0–30 kW0–750 V0–120 A
EA PU 10080 1000 4U0–30 kW0–80 V0–1000 A
EA PU 10360 240 4U0–30 kW0–360 V0–240 A
EA PU 10500 180 4U0–30 kW0–500 V0–180 A
EA PU 10060 1000 4U0–30 kW0–60 V0–1000 A
EA-PU 10000 6U0–60 kW0–360 V up to 0–2000 V0–80 A up to 0–480 A
EA PU 11000 160 6U0–60 kW0–1000 V0–160 A
EA PU 12000 80 6U0–60 kW0–2000 V0–80 A
EA PU 10500 360 6U0–60 kW0–500 V0–360 A
EA PU 11500 120 6U0–60 kW0–1500 V0–120 A
EA PU 10750 240 6U0–60 kW0–750 V0–240 A
EA PU 10920 250 6U0–60 kW0–920 V0–250 A
EA PU 10360 480 6U0–60 kW0–360 V0–480 A
EA-PUB 10000 4U0–30 kW0–60 V up to 0–1500 V0–40 A up to 0–1000 A
EA PUB 10750 120 4U0–30 kW0–750 V0–120 A
EA PUB 10080 1000 4U0–30 kW0–80 V0–1000 A
EA PUB 10200 420 4U0–30 kW0–200 V0–420 A
EA PUB 11000 80 4U0–30 kW0–1000 V0–80 A
EA PUB 11500 60 4U0–30 kW0–1500 V0–60 A
EA PUB 10500 180 4U0–30 kW0–500 V0–180 A
EA PUB 10360 240 4U0–30 kW0–360 V0–240 A
EA PUB 10920 125 4U0–30 kW0–920 V0–125 A
EA PUB 10060 1000 4U0–30 kW0–60 V0–1000 A
EA PUB 12000 40 4U0–30 kW0–2000 V0–40 A
EA-PUB 10000 6U0–60 kW0–360 V up to 0–2000 V0–80 A up to 0–480 A
EA PUB 11000 160 6U0–60 kW0–1000 V0–160 A
EA PUB 10750 240 6U0–60 kW0–750 V0–240 A
EA PUB 11500 120 6U0–60 kW0–1500 V0–120 A
EA PUB 10360 480 6U0–60 kW0–360 V0–480 A
EA PUB 12000 80 6U0–60 kW0–2000 V0–80 A
EA PUB 10920 250 6U0–60 kW0–920 V0–250 A
EA PUB 10500 360 6U0–60 kW0–500 V0–360 A
EA-PUL 10000 4U0–30 kW0–60 V up to 0–2000 V0–40 A up to 0–1000 A
EA PUL 10060 1000 4U0–30 kW0–60 V0–1000 A
EA PUL 12000 40 4U0–30 kW0–2000 V0–40 A
EA PUL 10360 240 4U0–30 kW0–360 V0–240 A
EA PUL 10500 180 4U0–30 kW0–500 V0–180 A
EA PUL 11000 80 4U0–30 kW0–1000 V0–80 A
EA PUL 11500 60 4U0–30 kW0–1500 V0–60 A
EA PUL 10920 125 4U0–30 kW0–920 V0–125 A
EA PUL 10750 120 4U0–30 kW0–750 V0–120 A
EA PUL 10200 420 4U0–30 kW0–200 V0–420 A
EA PUL 10080 1000 4U0–30 kW0–80 V0–1000 A
EA-PUL 10000 6U0–60 kW0–360 V up to 0–2000 V0–80 A up to 0–480 A
EA PUL 10920 250 6U0–60 kW0–920 V0–250 A
EA PUL 11000 160 6U0–60 kW0–1000 V0–160 A
EA PUL 10360 480 6U0–60 kW0–360 V0–480 A
EA PUL 11500 120 6U0–60 kW0–1500 V0–120 A
EA PUL 10500 360 6U0–60 kW0–500 V0–360 A
EA PUL 10750 240 6U0–60 kW0–750 V0–240 A
EA PUL 12000 80 6U0–60 kW0–2000 V0–80 A

Geser tabel ke samping untuk melihat semua spesifikasi →

Spesifikasi

Power0–30 kW; 0–60 kW
Voltage0–920 V; 0–2000 V; 0–200 V; 0–1000 V; 0–1500 V; 0–750 V; 0–80 V; 0–360 V; 0–500 V; 0–60 V; 0–360 V up to 0–2000 V; 0–60 V up to 0–1500 V; 0–60 V up to 0–2000 V
Current Range0–125 A; 0–40 A; 0–420 A; 0–80 A; 0–60 A; 0–120 A; 0–1000 A; 0–240 A; 0–180 A; 0–80 A up to 0–480 A; 0–160 A; 0–360 A; 0–250 A; 0–480 A; 0–40 A up to 0–1000 A
