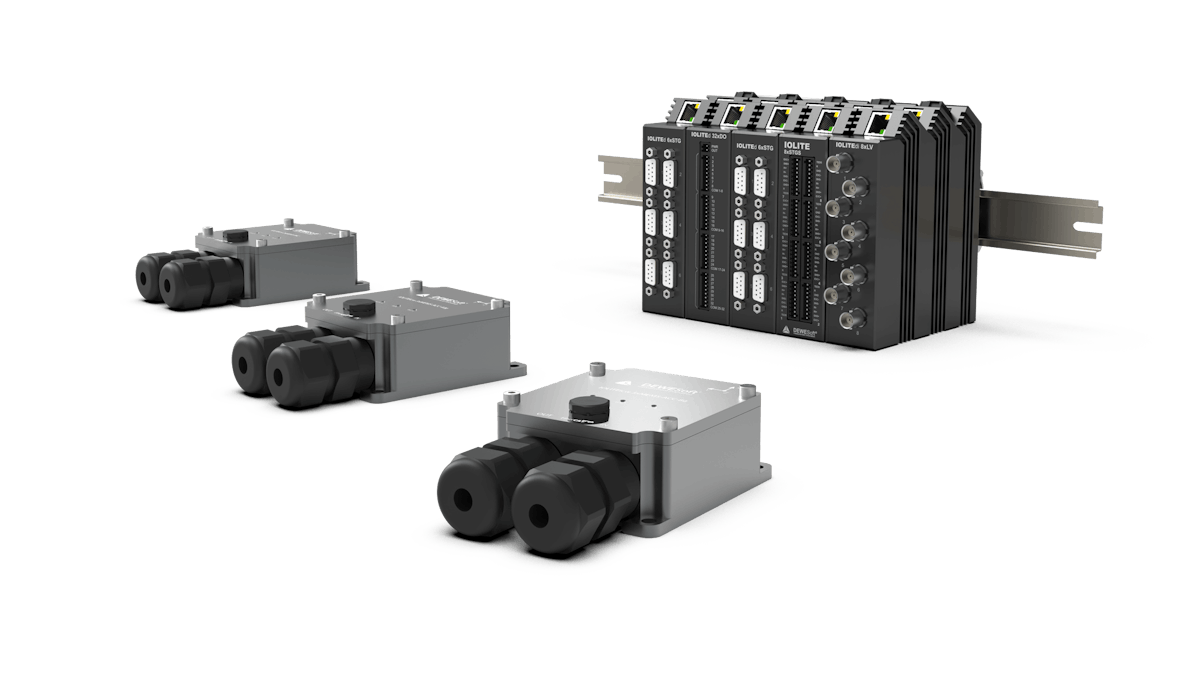

Dewesoft IOLITE® Modular | Sistem Akuisisi Data
Distributed, and cost-effective data acquisition device with high-end signal conditioning for monitoring and industrial applications. Free software included.
Available models include 1xSTG, 1xACC, 1xAO, 4xDI, 4xDO, 8xUNI, 8xACC, 6xSTG, 8xSTGS, 8xLV, 8xLVe, 16xLV, 16xLV-10V, 8xLA, 16xLA, 4xTH, 8xTH, 8xTH-HS, 8xRTD, 8xRTD-HS, 8xRTDp, 8xRTD v3, 32xDI, 32xDO, 8xDI-4xDO, 4xCNT, 16xAO.
Kapabilitas
Gambaran Umum
Distributed, and cost-effective data acquisition device with high-end signal conditioning for monitoring and industrial applications. Free software included.## Industrial Data Acquisition
IOLITE brings award-winning and easy-to-use Dewesoft data acquisition into industrial and monitoring applications.
A cost-effective design does not compromise the signal conditioning quality. All signal amplifiers are designed to offer high-end signal conditioning with 24-bit resolution and a high sampling rate of up to 50 kHz/channel.
IOLITE DAQ devices useRJ45 connectors which allow easy connection of modules and reduce cost by using standard low-cost Ethernet/EtherCAT cables.
Distributable Down to Single Channel
IOLITE devices come in single and multi-channel versions. Devices can be daisy-chained together with a single cost-effective Ethernet/EtherCAT cable with RJ45 connectors. Devices can span up to 100m apart.
This makes IOLITE perfect for distributed measurements where you can place data acquisition close to the source of your measurement – sensors.
Perfect Signal Conditioning
IOLITE offers high-end signal conditioning. With its range of input and output slots, you can measure voltage, current, strain, stress, vibration, sound, temperature, digital, counters, and more.
Proven high-quality data acquisition hardware combined with award-winning DewesoftX data acquisition software performs data collection without losing even a single sample.It also provides great data visualization and processing capabilities.
Data can be stored in a time-series database, and served to SCADA systems using standard interfaces such as OPC UA or XCP to truly support Industry 4.0 applications.
Off-the-shelf DewesoftX data acquisition software with a series of supported industry-standard interfaces makes IOLITE the perfect choice for even the most price-sensitive measurement and control tasks.
IOLITE® Modular Amplifier Modules
See the selection of single- and multi-channel IOLITE modular amplifier devices. Both, single- and multi-channel devices can be used together in the same measurement chain interconnected with an Ethernet CAT6 cable. The maximum cable length from node to node is 100 meters.
Industrial DIN Rail Mounting
IOLITE multi-channel modules are compatible and can be mounted on a standard industrial DIN rail. This makes them perfect for mounting in industrial cabinets, similar to PLCs and similar devices.IOLITE multi-chassis offers an easy clip-in mechanism for mounting to all standard industrial DIN rail mounts.
IOLITE single-channel modules are small and can be placed next to your measurement points. They offer screw holes for easy mounting with screws or any other method.
IOLITE 3x-MEMS
Integrated Low-Noise Triaxial Accelerometer
IOLITEic 3x-MEMS are dedicated devices for structural and vibration monitoring applications. They feature an integrated low-noise triaxial MEMS accelerometer.
With only 25 µg/√Hz spectral noise density and 100 µg, residual noise at 50 Hz bandwidth the devices are a cost-effective solution for seismic measurements.
Devices are a perfect fit for structural health monitoring and ideal for permanent condition monitoring on big structures such as bridges, buildings, antennas, and stadiums.
Even though the devices measure acceleration, they can also be used to precisely measure displacement by integrating the acceleration twice and applying appropriate filtering. The task is straightforward with DewesoftX data acquisition software and only requires you to check the displacement measurement option.
Special “INC” versions are available that can also measure static inclination.
Learn more on the IOLITEic 3xMEMS site.
Single-channel amplifier modules available in device configurations
-
IOLITEic 1xSTG: Single-channel isolated IOLITE module for Voltage, Strain, Potentiometer, Current in an Aluminum housing, plastic cable glands, IP20, but can be upgraded to IP67 if an IP67 mating connector is used (IOLITEicw 1xSTG).
-
IOLITEicw 1xSTG-TB: Single-channel isolated IOLITE module for Voltage, Strain, Potentiometer, Current in an Aluminum housing, terminal block, plastic cable glands, IP67.
-
IOLITEcw 1xT:Single-channel module for temperature in an Aluminum housing, plastic cable glands, IP67.
-
IOLITEic 1xACC: Single channel isolated IOLITE module for Voltage, IEPE in an Aluminum housing, plastic cable glands, IP20, but can be upgraded to IP67 if an IP67 mating connector is used (IOLITEicw 1xACC).
-
IOLITEic 4xDI:Isolated IOLITE module for four digital inputs in an Aluminum housing, plastic cable glands, IP20, but can be upgraded to IP67 if an IP67 mating connector is used (IOLITEicw 4xDI).
-
IOLITEic 4xDO:Isolated IOLITE module for digital outputs in an Aluminum housing, plastic cable glands, IP20, but can be upgraded to IP67 if an IP67 mating connector is used (IOLITEicw 4xDO).
-
IOLITEc-1xAO: Single-channel IOLITE module, IP20, but can be upgraded to IP67.
Distributable and Scalable
A wide variety of amplifiers with different channel counts per module allows perfect channel distribution for monitoring, systems can be distributed with 100m distance between the modules and great signal quality due to short sensor cable length.
High-End Signal Conditioning
IOLITE features high-quality analog amplifiers that offer excellent signal conditioning and up to 50 kHz sampling rate.
Great Price/Performance
IOLITE offers a great price/performance ratio and is suitable for monitoring and various industrial applications. Standard RJ45 cabling reduces cabling costs to the minimum.
Perfect Synchronization
Units are perfectly synchronized between each other and can use external timing sources like GPS for precise synchronization of dislocated units.
Standard Interfaces
IOLITE devices are standard EtherCAT slave devices that are compatible with any EtherCAT master controller. When connected to DewesoftX DAQ software, retransmit functionality ensures no samples are lost during measurement.
Dedicated structural monitoring device
IOLITEicw 3xMEMS is a dedicated device featuring an integrated low-noise triaxial MEMS accelerometer that is ideal for structural health monitoring applications.
Software included
Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.
Model & Varian
Single-channel amplifier modules
| Model | Voltage | Current | Resistance | Strain | IEPE | Charge | PTx | Thermocouple | Potentiometer | LVDT | Digital input | Digital output | TEDS | Excitation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1xSTG | ✓ | ✓ | ✗ | ✓ | DSI | DSI | DSI | DSI | ✓ | DSI | ✗ | ✗ | ✓ | ✓ |
| 1xACC | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ |
| 1xAO | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 4xDI | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ |
| 4xDO | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ |
Multi-channel amplifier modules
| Model | Voltage | Current | Resistance | Strain | IEPE | Charge | PTx | Thermocouple | Potentiometer | LVDT | Digital input | Digital output | TEDS | Excitation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8xUNI | ✓ | ✓ | ✓ | ✓ | ✓ | ✗ | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✓ |
| 8xACC | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ |
| 6xSTG | ✓ | ✓ | ✓ | ✓ | DSI | DSI | DSI | DSI | ✓ | DSI | ✗ | ✗ | ✓ | ✓ |
| 8xSTGS | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✓ |
| 8xLV | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xLVe | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✓ |
| 16xLV | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 16xLV-10V | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xLA | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 16xLA | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 4xTH | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xTH | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xTH-HS | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xRTD | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xRTD-HS | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xRTDp | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xRTD v3 | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 32xDI | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ |
| 32xDO | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ |
| 8xDI-4xDO | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ | ✗ | ✗ |
| 4xCNT | TTL | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ |
| 16xAO | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| 1xSTG [Single-channel amplifier modules] | ✓ | ✓ | ✗ | ✓ | DSI | DSI | DSI | DSI | ✓ | DSI | ✗ | ✗ | ✓ | ✓ |
|---|---|
| 1xACC [Single-channel amplifier modules] | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ |
| 1xAO [Single-channel amplifier modules] | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 4xDI [Single-channel amplifier modules] | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ |
| 4xDO [Single-channel amplifier modules] | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ |
| 8xUNI [Multi-channel amplifier modules] | ✓ | ✓ | ✓ | ✓ | ✓ | ✗ | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✓ |
| 8xACC [Multi-channel amplifier modules] | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ |
| 6xSTG [Multi-channel amplifier modules] | ✓ | ✓ | ✓ | ✓ | DSI | DSI | DSI | DSI | ✓ | DSI | ✗ | ✗ | ✓ | ✓ |
| 8xSTGS [Multi-channel amplifier modules] | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✓ |
| 8xLV [Multi-channel amplifier modules] | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xLVe [Multi-channel amplifier modules] | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✓ |
| 16xLV [Multi-channel amplifier modules] | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 16xLV-10V [Multi-channel amplifier modules] | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xLA [Multi-channel amplifier modules] | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 16xLA [Multi-channel amplifier modules] | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 4xTH [Multi-channel amplifier modules] | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xTH [Multi-channel amplifier modules] | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xTH-HS [Multi-channel amplifier modules] | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xRTD [Multi-channel amplifier modules] | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xRTD-HS [Multi-channel amplifier modules] | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xRTDp [Multi-channel amplifier modules] | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 8xRTD v3 [Multi-channel amplifier modules] | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| 32xDI [Multi-channel amplifier modules] | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ |
| 32xDO [Multi-channel amplifier modules] | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ |
| 8xDI-4xDO [Multi-channel amplifier modules] | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ | ✗ | ✗ |
| 4xCNT [Multi-channel amplifier modules] | TTL | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ |
| 16xAO [Multi-channel amplifier modules] | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
