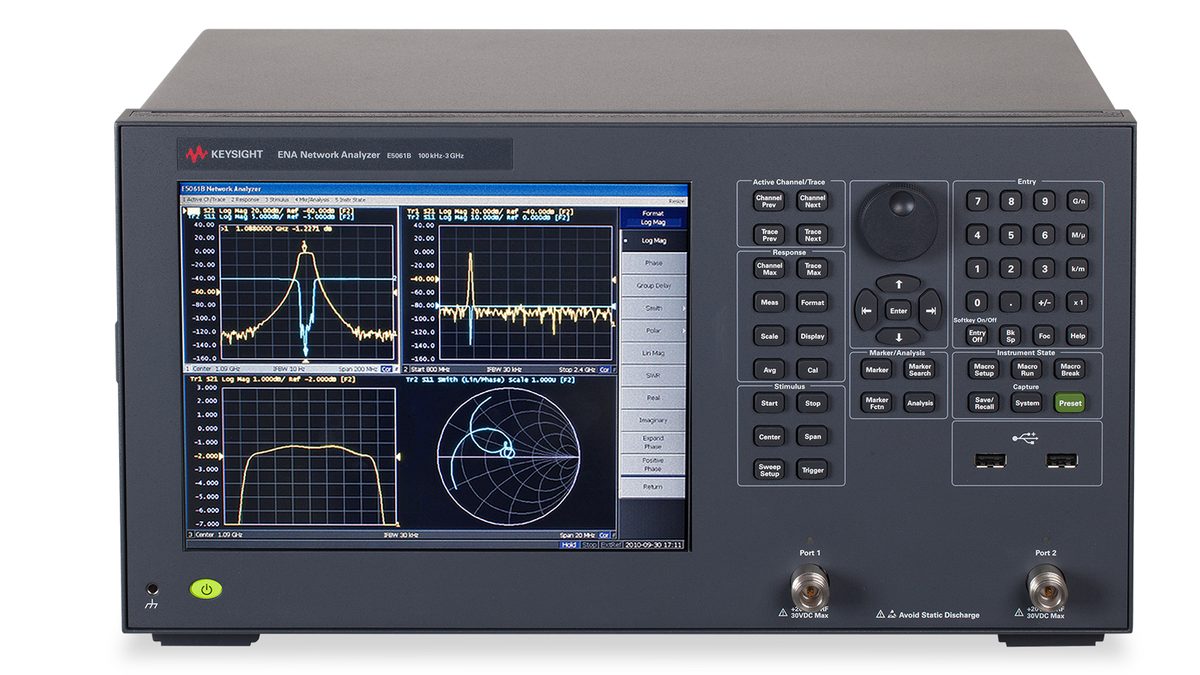

Keysight ENA Vector Network Analyzers | Benchtop VNA
The E5061B ENA vector network analyzer, 5 Hz to 3 GHz, 50/75 Ohm, 2-port, with impedance analysis option.
Available models include E5061B, E5062A, E5063A, E5071C, E5080B.
The E5061B ENA vector network analyzer, 5 Hz to 3 GHz, 50/75 Ohm, 2-port, with impedance analysis option.
Advanced Measurement Capabilities in a Compact Box
The Keysight E5061B addresses a broad range of measurement needs of electronic components and circuits from low to high frequencies. The E5061B is the ideal solution for applications in industries such as wireless communications, aerospace and defense, computer, medical, automotive, CATV, plus many more.
Model & Varian
| Model | Frequency range | Ports | Dynamic range | Trace noise | Model role / verified detail |
|---|---|---|---|---|---|
| E5061B | 5 Hz to 3 GHz | 2-port; 50/75 Ohm | >120 dB (at 1 MHz to 3 GHz, IFBW = 10 Hz) | 5 mdBrms (IFBW = 3 kHz) | Essential VNA; impedance analysis option |
| E5062A | 300 kHz to 3 GHz | 2-port | 120 dB | 0.005 dB rms | ENA-L; integrated T/R or S-parameter test set |
| E5063A | 100 kHz to 18 GHz | 2-port | 122 dB | 0.002 dB rms | Essential VNA; passive device test and PCB test option |
| E5071C | 9 kHz to 20 GHz | 2 or 4 ports | 123 dB | < 0.004 dB rms at 70 kHz IFBW | ENA; enhanced TDR measurement option |
| E5080B | 9 kHz to 20 GHz; 100 kHz to 53 GHz | 2-port or 4-port | 140 dB (50 MHz to 3 GHz, 10 Hz IFBW; 150 dB typical) | 0.0015 dB rms (100 kHz to 6 GHz; 1 kHz IFBW below 10 MHz, 10 kHz IFBW at/above 10 MHz) | Expert ENA; frequency and port configuration depend on selected option |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Variant count | 5 models |
|---|---|
| Frequency Coverage | 5 Hz to 53 GHz, depending on model and option |
| Port Configuration | 2-port or 4-port, depending on model and option |
| Frequency range | E5061B: 5 Hz to 3 GHz; E5062A: 300 kHz to 3 GHz; E5063A: 100 kHz to 18 GHz; E5071C: 9 kHz to 20 GHz; E5080B: 9 kHz to 20 GHz; 100 kHz to 53 GHz |
| Ports | E5061B: 2-port; 50/75 Ohm; E5062A: 2-port; E5063A: 2-port; E5071C: 2 or 4 ports; E5080B: 2-port or 4-port |
| Dynamic range | E5062A: 120 dB; E5063A: 122 dB; E5071C: 123 dB |
| Trace noise | E5062A: 0.005 dB rms; E5063A: 0.002 dB rms; E5071C: < 0.004 dB rms at 70 kHz IFBW |
| Model role / verified detail | E5061B: Essential VNA; impedance analysis option; E5062A: ENA-L; integrated T/R or S-parameter test set; E5063A: Essential VNA; passive device test and PCB test option; E5071C: ENA; enhanced TDR measurement option; E5080B: Expert ENA; frequency and port configuration depend on selected option |
