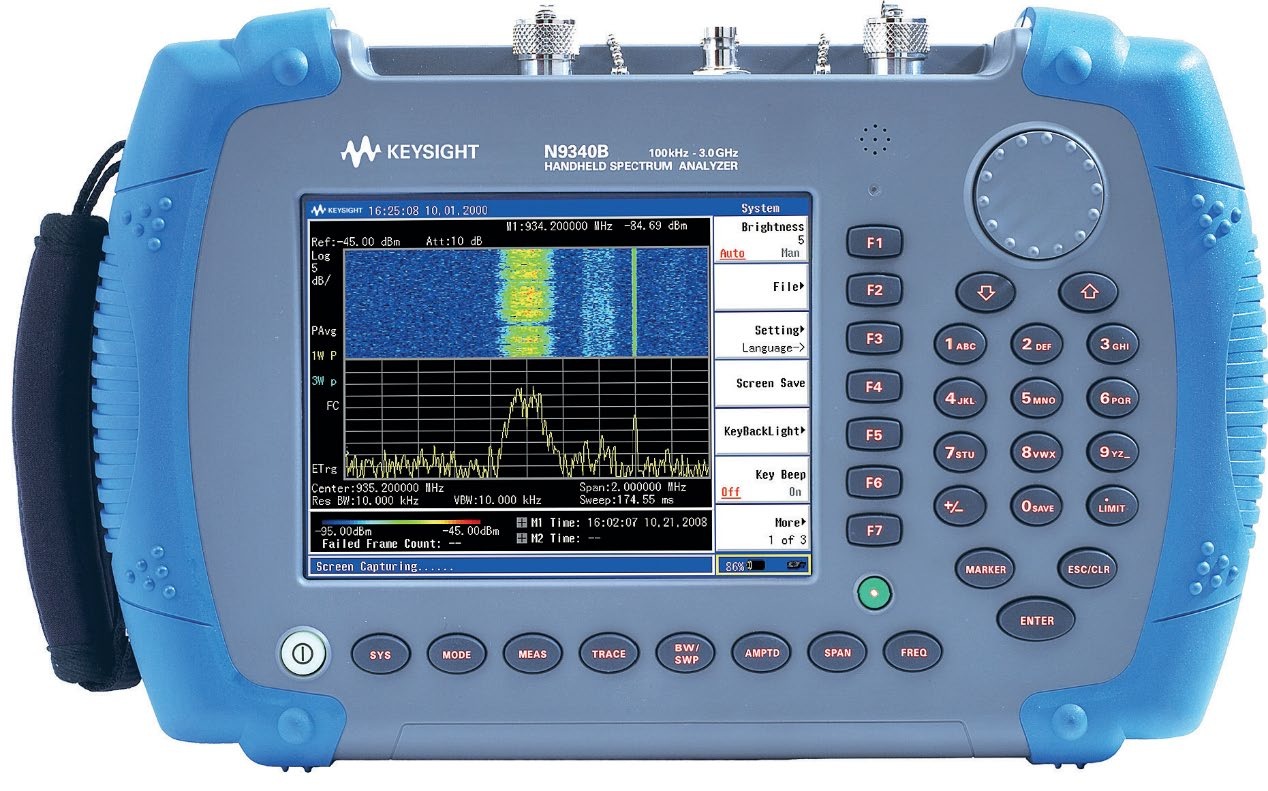

Keysight N9340B Handheld Spectrum Analyzer, 3 GHz | Spectrum Analyzer Genggam
Handheld spectrum analyzer covering 100 kHz to 3 GHz, tunable to 9 kHz, with 30 Hz resolution bandwidth and low displayed average noise level.
Available models include N9340B, N9342C.
The N9340B is a handheld spectrum analyzer covering 100 kHz to 3 GHz, tunable down to 9 kHz, for field installation, maintenance and interference hunting.
Its 30 Hz resolution bandwidth is the narrowest in its class, and low DANL and SSB phase noise help resolve weak or transient interference signals.
Fitur Utama:
- Frequency range 100 kHz to 3 GHz, tunable to 9 kHz
- 30 Hz resolution bandwidth, the narrowest in its class
- Low displayed average noise level (DANL)
- Low SSB phase noise for resolving weak signals
- Displayed average noise level of -124 dBm at 30 Hz RBW, -144 dBm with the preamplifier on
Model & Varian
| Model | Frequency range |
|---|---|
| N9340B | 100 kHz to 3 GHz (tunable to 9 kHz) |
| N9342C | 9 kHz to 7 GHz |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Frequency range | 100 kHz to 3 GHz (tunable to 9 kHz), AC coupled |
|---|---|
| Span range | 0 Hz (zero span), 1 kHz to 3 GHz |
| Resolution bandwidth | 30 Hz minimum |
| Form factor | Handheld spectrum analyzer |
| Application | Field installation, maintenance and interference hunting |
| Displayed average noise level (DANL) | -124 dBm at RBW 30 Hz, 10 MHz < fc to 1.5 GHz; -144 dBm with preamplifier on |
| Resolution bandwidth range | 30 Hz to 1 MHz in 1-3-10 sequence |
| Resolution filter shape factor | Less than 5 |
| Sweep time | 10 ms to 1000 s for span of 1 kHz and above; less than 120 ms at full span |
