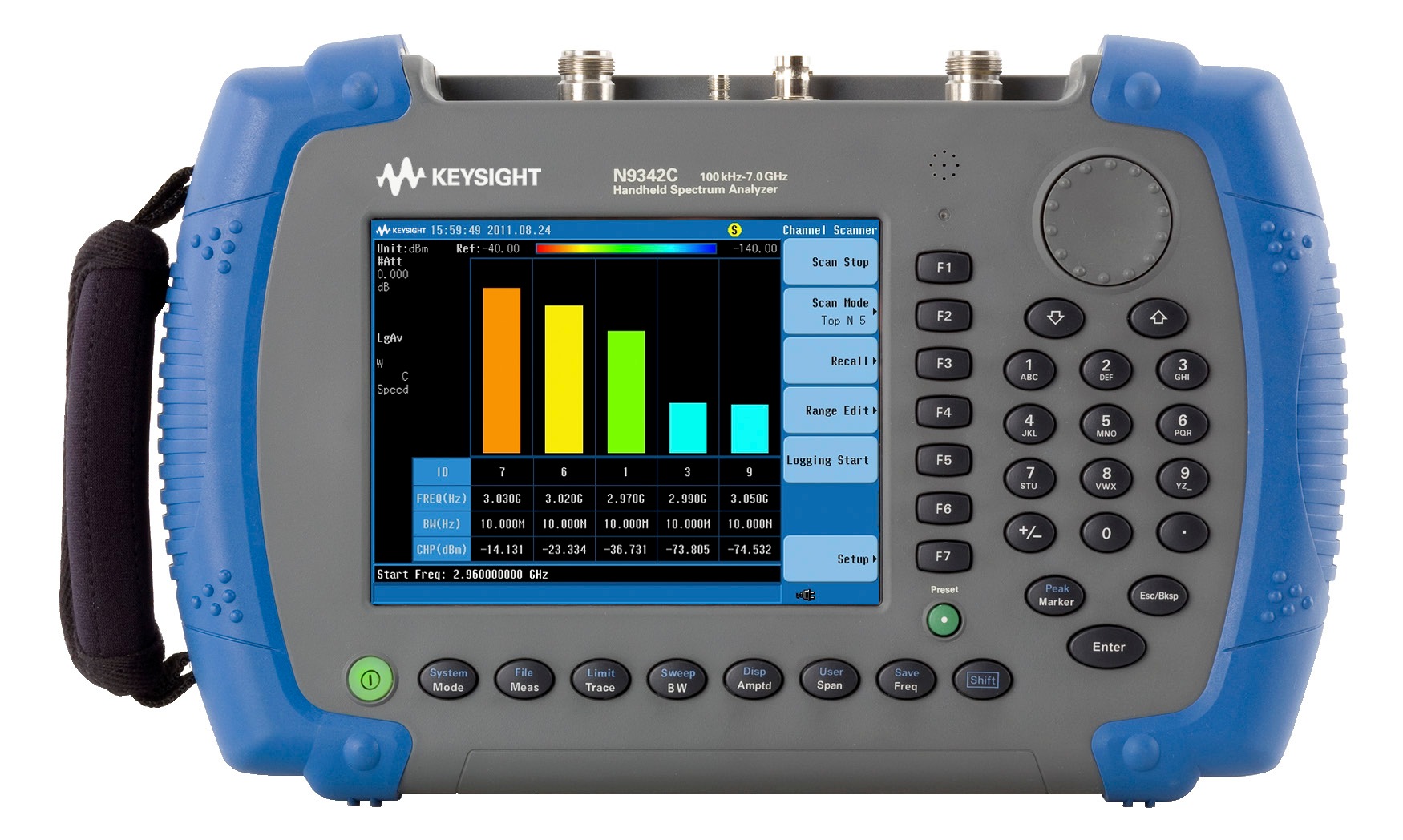

Keysight N9342C Handheld Spectrum Analyzer (HSA), 7 GHz | Analyzer Spektrum Genggam
They are a versatile tool for RF field testing, offering comprehensive capabilities in spectrum analysis, vector network analysis, power measurements, and pulse generation.
Available models include N9342C, N9343C, N9344C.
If you are making measurements in the field, the N9342C handheld spectrum analyzer (HSA) makes your job easier. It’s got the features you need for operating in tough field environments, and its measurement performance gives you confidence the job’s been done right.
Fitur Utama:
- The N9342C HSA lets you automate routine tasks to save time and ensure consistent results.
- Channel scanner (Option SCN)
- Spectrum monitor (Option SIM)
- RF preamplifier (Option PA7)
- Tracking generator (Option TG7)
- Cable and antenna test (Option CA7)
- Built-in GPS receiver and GPS antenna (Option GPS)
- USB peak and average power sensor support (Option PWP)
- USB average power sensor support (Option PWM)
- Task planner for test automation (Option TPN)
Model & Varian
| Model | Frequency range | Notes |
|---|---|---|
| N9342C | 100 kHz to 7 GHz | Usable to 9 kHz |
| N9343C | 1 MHz to 13.6 GHz | Tunable to 9 kHz |
| N9344C | 1 MHz to 20 GHz | Tunable to 9 kHz |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Frequency range | 100 kHz to 7 GHz (usable to 9 kHz). AC coupled. |
|---|---|
| Measurement range | 100 kHz to 2 MHz: DANL to +10 dBm; 2 MHz to 7 GHz: DANL to +20 dBm |
| Input attenuator range | 0 to 50 dB, in 1 dB steps |
| Sweep time range | 2 ms to 1000 s (span ≥ 100 Hz); 600 ns to 200 s (span = 0 Hz) |
| Trigger source | Free run, video, external, RF burst |
| RF input | Type-N female, 50 Ω nominal |
| Display resolution | 640 pixels x 480 pixels |
| Display | 170 mm (6.5 in) TFT color display |
| System memory | 64 MB |
| User memory | 64 MB; able to store about 14,000 traces |
| Battery operating time | 4 hours (tracking generator off, preamplifier on); 3 hours (tracking generator on, preamplifier on) |
| Warm-up time | 5 minutes |
| Temperature range | –10 to +50 °C operating; –40 to +70 °C storage |
| Relative humidity | < 95% |
| Weight | 3.6 kg (7.9 lbs) with battery |
| Dimensions | 318 mm × 207 mm × 69 mm |
| Connectivity | USB 2.0 Type-A; USB Type-mini AB; 10 Base-T LAN |
| Tracking generator frequency range | 5 MHz to 7 GHz |
| Tracking generator output level | 0 to –20 dBm, 1 dB steps |
| Cable and antenna test frequency range | 5 MHz to 7 GHz |
