Keysight U2000A Usb Power Sensor, 10 MHz to 18 GHz | Sensor Daya
Keysight U2000A USB power sensor covering 10 MHz to 18 GHz, with a dynamic range of -60 to +20 dBm, for average power measurement.
Available models include U2000A, U2001A, U2002A, U2004A.
The U2000A is a Keysight USB power sensor covering 10 MHz to 18 GHz, with a dynamic power range of -60 to +20 dBm.
The U2000 Series are USB power sensors, powered and controlled over USB, and are used with a PC or a compatible power meter display.
Fitur Utama:
- USB-powered and USB-controlled
- Wide dynamic range of -60 to +20 dBm
- Used with the Keysight power meter software or a compatible display
Model & Varian
| Model | Frequency range |
|---|---|
| U2000A | 10 MHz to 18 GHz |
| U2001A | 10 MHz to 6 GHz |
| U2002A | 50 MHz to 24 GHz |
| U2004A | 9 kHz to 6 GHz |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Frequency range | 10 MHz to 18 GHz |
|---|---|
| Dynamic power range | -60 to +20 dBm |
| Sensor type | Usb power sensor |
| Damage level | +25 dBm avg, 20 VDC |

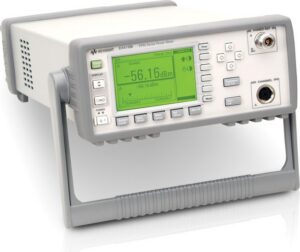

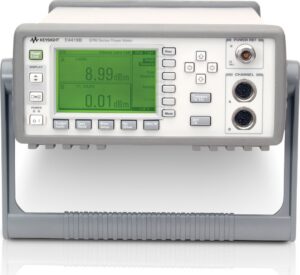

| Compatible power meters | EPM Series and P-Series power meters |
| Calibration data | Calibration factor (CF) and reflection coefficient (Rho) data unique to each sensor |
| Operating temperature | 0 to 55 degrees C |
| Storage temperature | -40 to 70 degrees C |
| Humidity | Maximum 95 % RH at 40 degrees C non-condensing |
