PCB Piezotronics Hammer Series

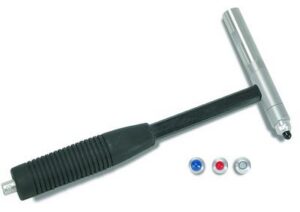

Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 100 lbf, 50 mV/lbf (11.2 mV/N)
Available models include 086C01, 086D05, 086D20, 086D50, TLD086D20, TLD086D50.
Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 100 lbf, 50 mV/lbf (11.2 mV/N)
This series groups the official PCB Piezotronics variants listed below. Differences such as frequency, configuration, connector, range, or regional option are shown in the table.
Key Features
Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 100 lbf, 50 mV/lbf (11.2 mV/N)
- Sensitivity: (±15%)50 mV/lbf (11.2 mV/N)
- Measurement Range: ±100 lbf pk (±444 N pk)
- Hammer Mass: 0.23 lb (0.10 kg)
- * *
- All specifications are at room temperature unless otherwise specified.
Model & Varian
| Model | Official Variant Description | Sensitivity (±15 %) | Measurement Range | Resonant Frequency | Non-Linearity | Excitation Voltage | Constant Current Excitation | Output Impedance | Output Bias Voltage |
|---|---|---|---|---|---|---|---|---|---|
| 086C01 | 086C01 Hammer | 50 mV/lbf / 11.2 mV/N | ±100 lbf pk / ±444 N pk | ≥15 kHz | ≤1 % | 20 to 30 VDC | 2 to 20 mA | <100 Ohm / [1] | 8 to 14 VDC |
| 086D05 | 086D05 Hammer | 1 mV/lbf / 0.23 mV/N | ±5000 lbf pk / ±22240 N pk | ≥22 kHz | ≤1 % | 20 to 30 VDC | 2 to 20 mA | <100 Ohm / [1] | 8 to 14 VDC |
| 086D20 | 086D20 Hammer | 1 mV/lbf / 0.23 mV/N | ±5000 lbf pk / ±22240 N pk | ≥12 kHz | ≤1 % | 20 to 30 VDC | 2 to 20 mA | <100 Ohm / [1] | 8 to 14 VDC |
| 086D50 | 086D50 Hammer | 1 mV/lbf / 0.23 mV/N | ±5000 lbf pk / ±22240 N pk | ≥5 kHz | ≤1 % | 20 to 30 VDC | 2 to 20 mA | <100 Ohm / [1] | 8 to 14 VDC |
| TLD086D20 | TLD086D20 Hammer | 1 mV/lbf / 0.23 mV/N | ±5000 lbf pk / ±22240 N pk | ≥12 kHz | ≤1 % | 20 to 30 VDC | 2 to 20 mA | <100 Ohm / [1] | 8 to 14 VDC |
| TLD086D50 | TLD086D50 Hammer | 1 mV/lbf / 0.23 mV/N | ±5000 lbf pk / ±22240 N pk | ≥5 kHz | ≤1 % | 20 to 30 VDC | 2 to 20 mA | <100 Ohm / [1] | 8 to 14 VDC |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Sensitivity (±15 %) | 50 mV/lbf / 11.2 mV/N |
|---|---|
| Measurement Range | ±100 lbf pk / ±444 N pk |
| Resonant Frequency | ≥15 kHz |
| Non-Linearity | ≤1 % |
| Excitation Voltage | 20 to 30 VDC |
| Constant Current Excitation | 2 to 20 mA |
| Output Bias Voltage | 8 to 14 VDC |
| Discharge Time Constant | ≥500 sec / [1] |
| Sensing Element | Quartz |
| Sealing | Epoxy |
| Hammer Mass | 0.23 lb / 0.10 kg |
| Head Diameter | 0.62 in / 1.57 cm |
| Tip Diameter | 0.25 in / 0.63 cm |
| Hammer Length | 8.5 in / 21.6 cm |
| Electrical Connection Position | Bottom of Handle |
