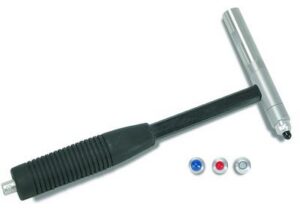

PCB Piezotronics 086C03 Impact Hammer Series
Platinum Stock Products; Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 500 lbf, 10 mV/lbf (2.2 mV/N)
Available models include 086C03, TLD086C03.
Platinum Stock Products; Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 500 lbf, 10 mV/lbf (2.2 mV/N)
This series groups the official PCB Piezotronics variants listed below. Model differences such as sensitivity, range, connector, temperature rating, hazardous-area option, or microphone response are shown in the table.
Key Features
Platinum Stock Products; Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 500 lbf, 10 mV/lbf (2.2 mV/N)
- Sensitivity: (±15%)10 mV/lbf (2.25 mV/N)
- Measurement Range: ±500 lbf pk (±2224 N pk)
- Hammer Mass: 0.34 lb (0.16 kg)
- * *
- All specifications are at room temperature unless otherwise specified.
Model & Varian
| Model | Official Variant Description | Sensitivity (±15 %) | Measurement Range | Resonant Frequency | Non-Linearity | Excitation Voltage | Constant Current Excitation | Output Impedance | Output Bias Voltage |
|---|---|---|---|---|---|---|---|---|---|
| 086C03 | 086C03 Modally Tuned Hammer 0-500 Lbs 10 Mv/Lb | 10 mV/lbf / 2.25 mV/N | ±500 lbf pk / ±2224 N pk | ≥22 kHz | ≤1 % | 20 to 30 VDC | 2 to 20 mA | <100 Ohm / [1] | 8 to 14 VDC |
| TLD086C03 | TLD086C03 Impact Hammer | 10 mV/lbf / 2.25 mV/N | ±500 lbf pk / ±2224 N pk | ≥22 kHz | ≤1 % | 20 to 30 VDC | 2 to 20 mA | <100 Ohm / [1] | 8 to 14 VDC |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Sensitivity (±15 %) | 10 mV/lbf / 2.25 mV/N |
|---|---|
| Measurement Range | ±500 lbf pk / ±2224 N pk |
| Resonant Frequency | ≥22 kHz |
| Non-Linearity | ≤1 % |
| Excitation Voltage | 20 to 30 VDC |
| Constant Current Excitation | 2 to 20 mA |
| Output Bias Voltage | 8 to 14 VDC |
| Discharge Time Constant | ≥2000 sec / [1] |
| Sensing Element | Quartz |
| Sealing | Epoxy |
| Hammer Mass | 0.34 lb / 0.16 kg |
| Head Diameter | 0.62 in / 1.57 cm |
| Tip Diameter | 0.25 in / 0.63 cm |
| Hammer Length | 8.5 in / 21.6 cm |
| Electrical Connection Position | Bottom of Handle |
