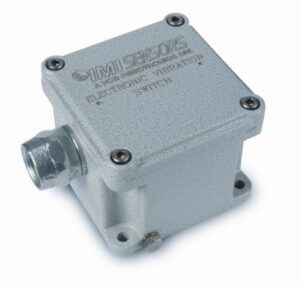

PCB Piezotronics 685B0001C14 Electronic Vibration Switch
Model 685B0001C14:Electronic vibration switch, internal ICP® accel., 0-1.5 ips, AC powered, 10A form C relays, Class 1 Div 1, groups B,C,D, dual 1/2&q
Model 685B0001C14:Electronic vibration switch, internal ICP® accel., 0-1.5 ips, AC powered, 10A form C relays, Class 1 Div 1, groups B,C,D, dual 1/2&q
Key Features
Model 685B0001C14:Electronic vibration switch, internal ICP® accel., 0-1.5 ips, AC powered, 10A form C relays, Class 1 Div 1, groups B,C,D, dual 1/2&q
- Measurement Range: 0 to 1.5 in/sec pk (0 to 38.1 mm/s pk)
- Cable Input: Dual 1/2 in. NPT Conduit Hubs
- Relay: 10A/245 VAC or 5A/30 VDC
- Power Required: 85-245 VAC 50/60 Hz
- Electrical Connector: Screw Terminals
Spesifikasi
| Measurement Range | 0 to 1.5 in/sec pk / 0 to 38.1 mm/s pk |
|---|---|
| Frequency Range (±3 dB) | 120 to 60000 cpm / 2 to 1000 Hz / [1] |
| Power On Delay | 20 sec / [2] |
| Relay (Alert) | 10A/245 VAC or 5A/30 VDC |
| Relay (Alarm) | 10A/245 VAC or 5A/30 VDC |
| Relay(Contacts) | Latching / Non-Latching |
| Alarm Setpoint | 10 to 100% of Vibration Range |
| Alert Setpoint | 10 to 100% of Alarm Setpoint |
| Delay (Alert) | 0 to 45 sec |
| Delay (Alarm) | 0 to 45 sec |
| Acceleration Output (±10 %) | 100 mV/g / 10.2 mV/(m/s²) |
| Power LED | Green |
| Alarm LED | Red |
| Alert LED | Yellow |
| Time Delay Adjustment | Single Turn Potentiometer |
| Reset Function | Momentary Pushbutton Switch / [3] |
