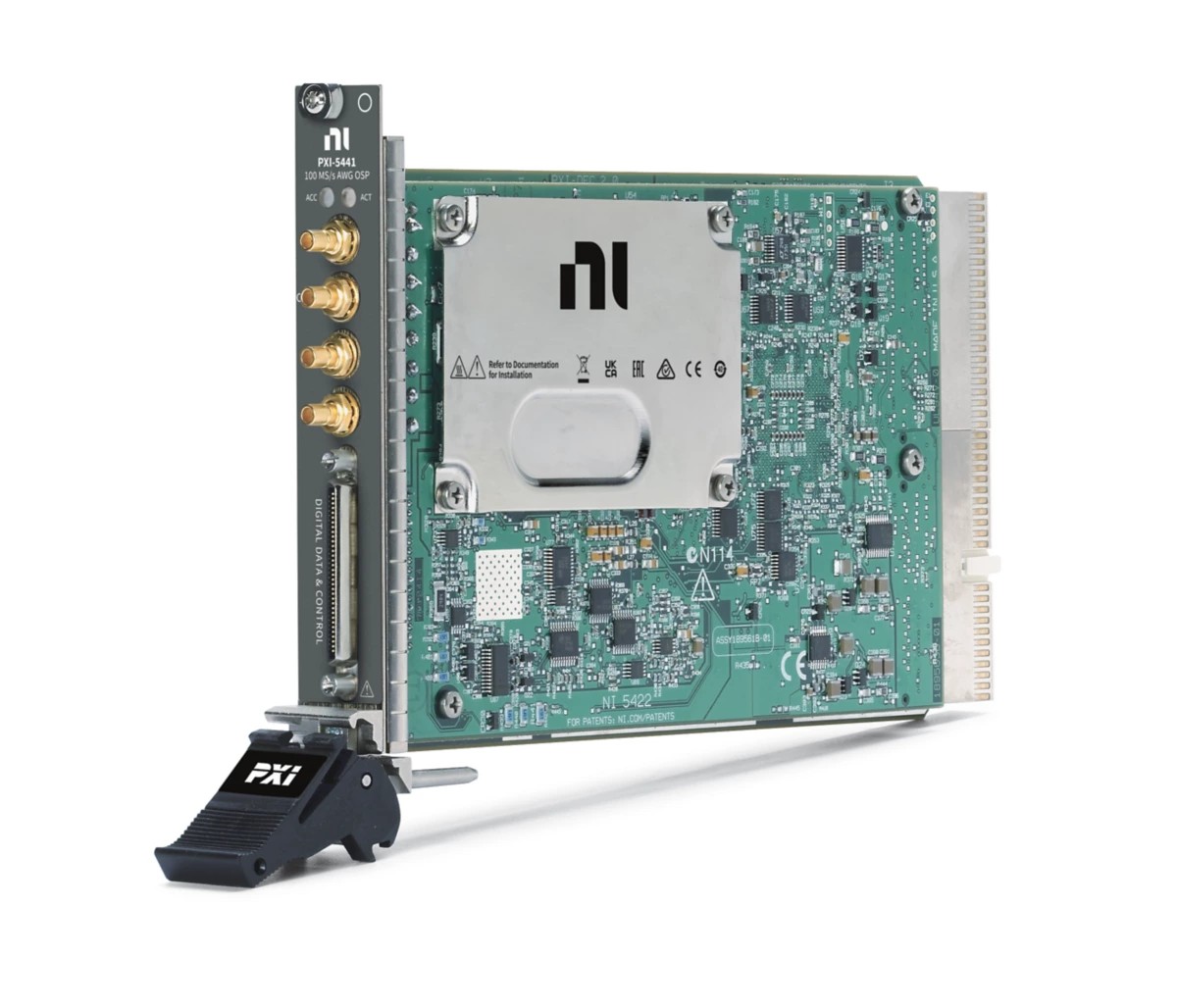

PXI-5441 PXI Waveform Generator, 43 MHz, 16 bits, 100 MS/s, 1 Channels, 512 MB
43 MHz Bandwidth, 16-Bit, Onboard Signal Processing PXI Waveform Generator
The PXI-5441 is a 43 MHz arbitrary waveform generator capable of generating user-defined, arbitrary waveforms, standard functions including sine, square, triangle, and ramp, as well as signals that require onboard signal processing. Some of these signal processing operations include FIR and CIC interpolation filters, digtal prefilter gain, numerically-controlled oscillator, and I/Q mixing for quadrature digital upcoversion. The PXI-5441 also features advanced synchronization and data streaming capabilities.
Model & Varian
| Model | Part Number | Analog Output Onboard Memory Size | Product Description |
|---|---|---|---|
| PXI-5441 | 779058-04 | 512 MB | PXI-5441 PXI Waveform Generator, 43 MHz, 16 bits, 100 MS/s, 1 Channels, 512 MB |
| PXI-5441 | 779058-02 | 32 MB | PXI-5441 PXI Waveform Generator, 43 MHz, 16 bits, 100 MS/s, 1 Channels, 32 MB |
| PXI-5441 | 779058-03 | 256 MB | PXI-5441 PXI Waveform Generator, 43 MHz, 16 bits, 100 MS/s, 1 Channels, 256 MB |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 779058-04 |
|---|---|
| Supports Arbitrary Waveforms | Yes |
| Maximum Bandwidth | 43 MHz |
| Number of Output Channels | 1 |
| Supports Digital Upconversion | Yes |
| Analog Output Voltage Range | -6 V to 6 V |
| Analog Output Onboard Memory Size | 512 MB |
| Analog Output Resolution | 16 bits |
| RF Signal Generation | No |
| Maximum Analog Update Rate | 100 MS/s |
| Supports Scripting | Yes |
| Bus Connection | PXI Hybrid |
| Supported Hardware Platform | PXI |
| Reconfigurable | Yes |
| Product Description | PXI-5441 PXI Waveform Generator, 43 MHz, 16 bits, 100 MS/s, 1 Channels, 512 MB |
