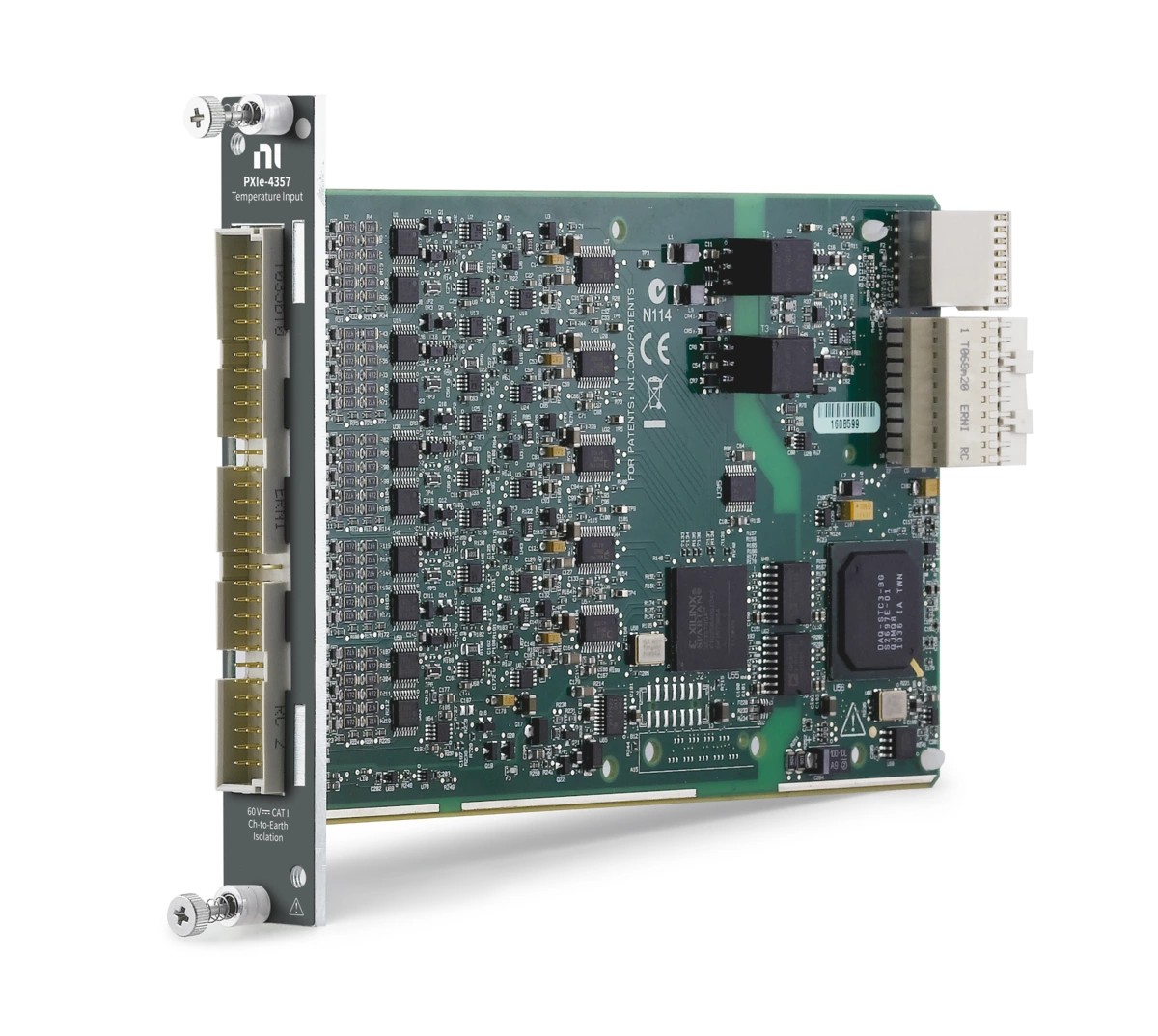

NI PXIe-4357 RTD Input Module
20-Channel, 24-Bit PXI Temperature Input Module
The NI PXIe-4357 input module provides integrated data acquisition and signal conditioning for 2-, 3-, or 4-wire resistance temperature detector (RTD) measurements. It offers both high-speed and high-resolution modes. It provides per channel software-programmable configurations and automatically scale measured data into engineering units.
Spesifikasi
| Part Number | 782118-01 |
|---|---|
| Maximum Number of Differential Analog Input Channels | 20 |
| Supported Sensor Type | RTD |
| Analog Input Isolation | 60 V Ch-Earth Ground Isolation |
| Maximum Sample Rate | 90 S/s |
| Number of Analog Input Channels | 20 |
| Simultaneous Sampling | No |
| Operating Temperature Range | 0 °C to 55 °C |
| Bus Connection | PXI Express |
| Front Connection Type | DIN(1) |
| Product Description | NI PXIe-4357 RTD Input Module |
