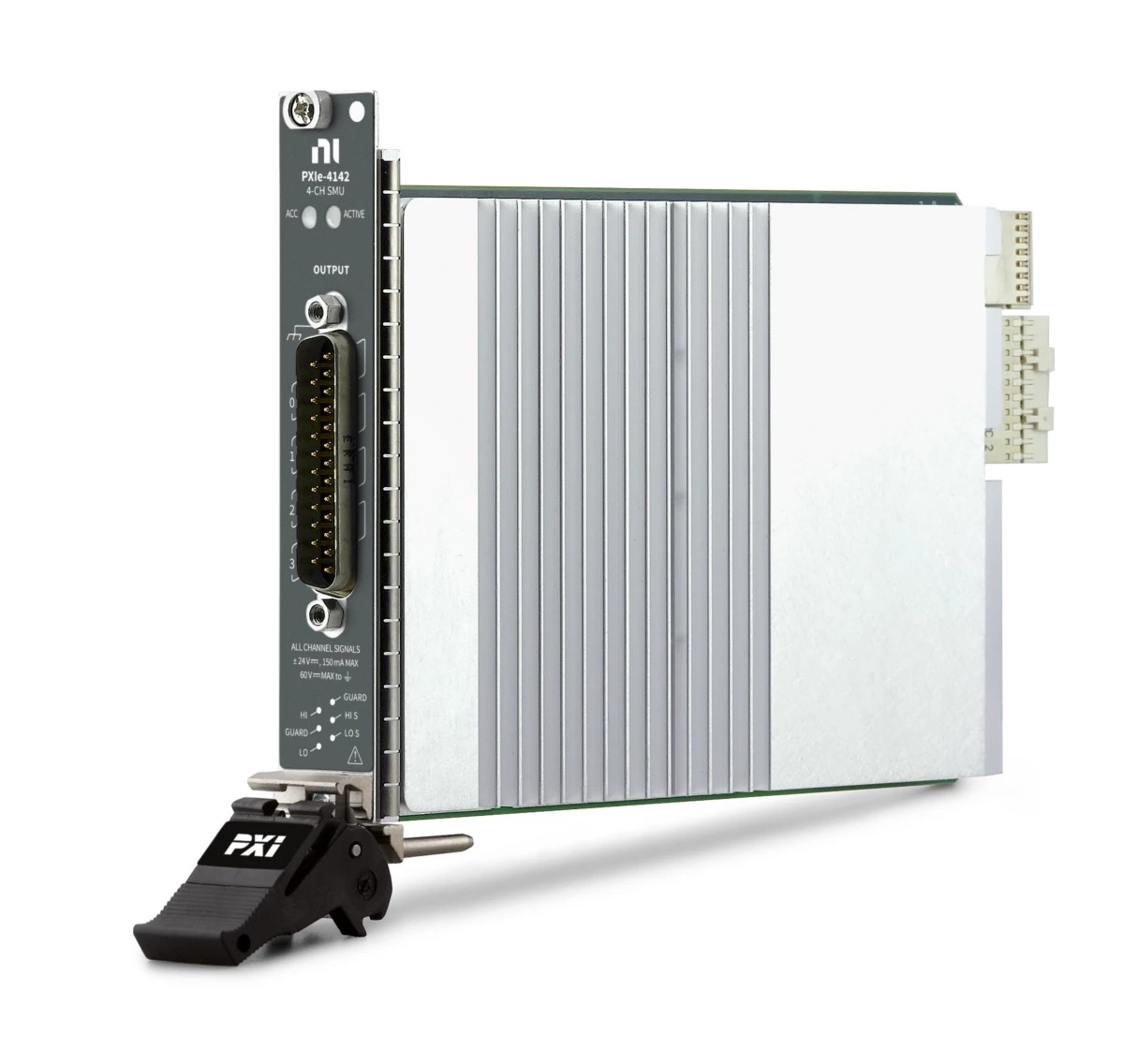

PXIe-4142 4-CHANNEL SMU: 24V,150mA
PXIe, 4-Channel, ±24 V, 150 mA PXI Source Measure Unit
The PXIe-4142 is a 4-channel source measure unit (SMU) ideal for high-pin-count applications. It features 4-quadrant operation, and each channel has integrated remote (4-wire) sensing for accurate measurements. The fast sample rate of the PXIe-4142 can reduce measurement times, capture transient device characteristics, and allow quick I V characterization of devices under test (DUTs). With a high-speed sequencing engine, you can synchronize all these SMUs with each other or with other instruments such as switches or high-speed digital test modules.
Spesifikasi
| Part Number | 782430-01 |
|---|---|
| Current Sensitivity | 100 pA |
| Number of SMU Channels | 4 |
| Voltage Range | -24 V to 24 V |
| SourceAdapt | No |
| Max DC Sink Power | 3.6 W |
| Max DC Source Power | 3.6 W |
| DC Current Range | -150 mA to 150 mA |
| Bus Connector | PXI Express |
| Supported Hardware Platform | PXI |
| Bus Connection | PXI Express |
| Product Description | PXIe-4142 4-CHANNEL SMU: 24V,150mA |
