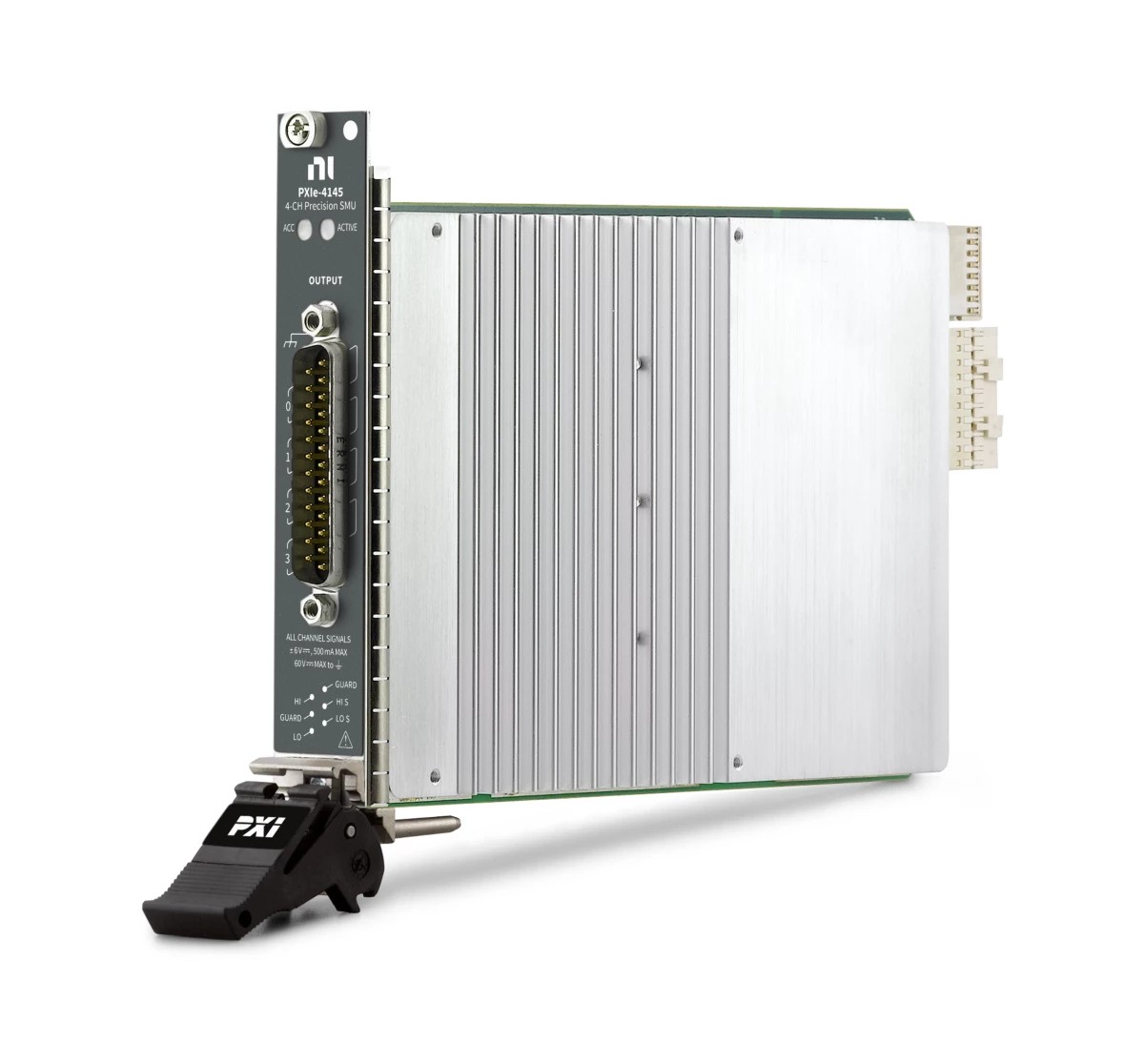

NI PXIe-4145 4-channel Precision SMU: 6V, 500mA
PXIe, 4-Channel, ±6 V, 500 mA Precision PXI Source Measure Unit
The PXIe-4145 is a 4-channel source measure unit (SMU) ideal for high-pin-count applications. It features 4-quadrant operation, and each channel has integrated remote (4 wire) sensing for accurate measurements. The fast sample rate of the PXIe-4145 can reduce measurement times, capture transient device characteristics, and allow quick I V characterization of devices under test (DUTs). With a high-speed sequencing engine, you can synchronize all these SMUs with each other or with other instruments such as switches or high-speed digital test modules. Additionally, you can tune the PXIe-4145 response to any load to achieve optimum responses with maximum stability and minimum transients using SourceAdapt technology.
Spesifikasi
| Part Number | 782435-01 |
|---|---|
| Current Sensitivity | 15 pA |
| Number of SMU Channels | 4 |
| Voltage Range | -6 V to 6 V |
| SourceAdapt | Yes |
| Max DC Sink Power | 3 W |
| Max DC Source Power | 3 W |
| DC Current Range | -500 mA to 500 mA |
| Bus Connector | PXI Express |
| Supported Hardware Platform | PXI |
| Bus Connection | PXI Express |
| Product Description | NI PXIe-4145 4-channel Precision SMU: 6V, 500mA |
