PXIe-5820, 500MHz VST, 1GHz I/Q BW, Baseband PXI Vector Signal Transceiver, NO EXT
500 MHz, 1 GHz I/Q Bandwidth, Baseband PXI Vector Signal Transceiver

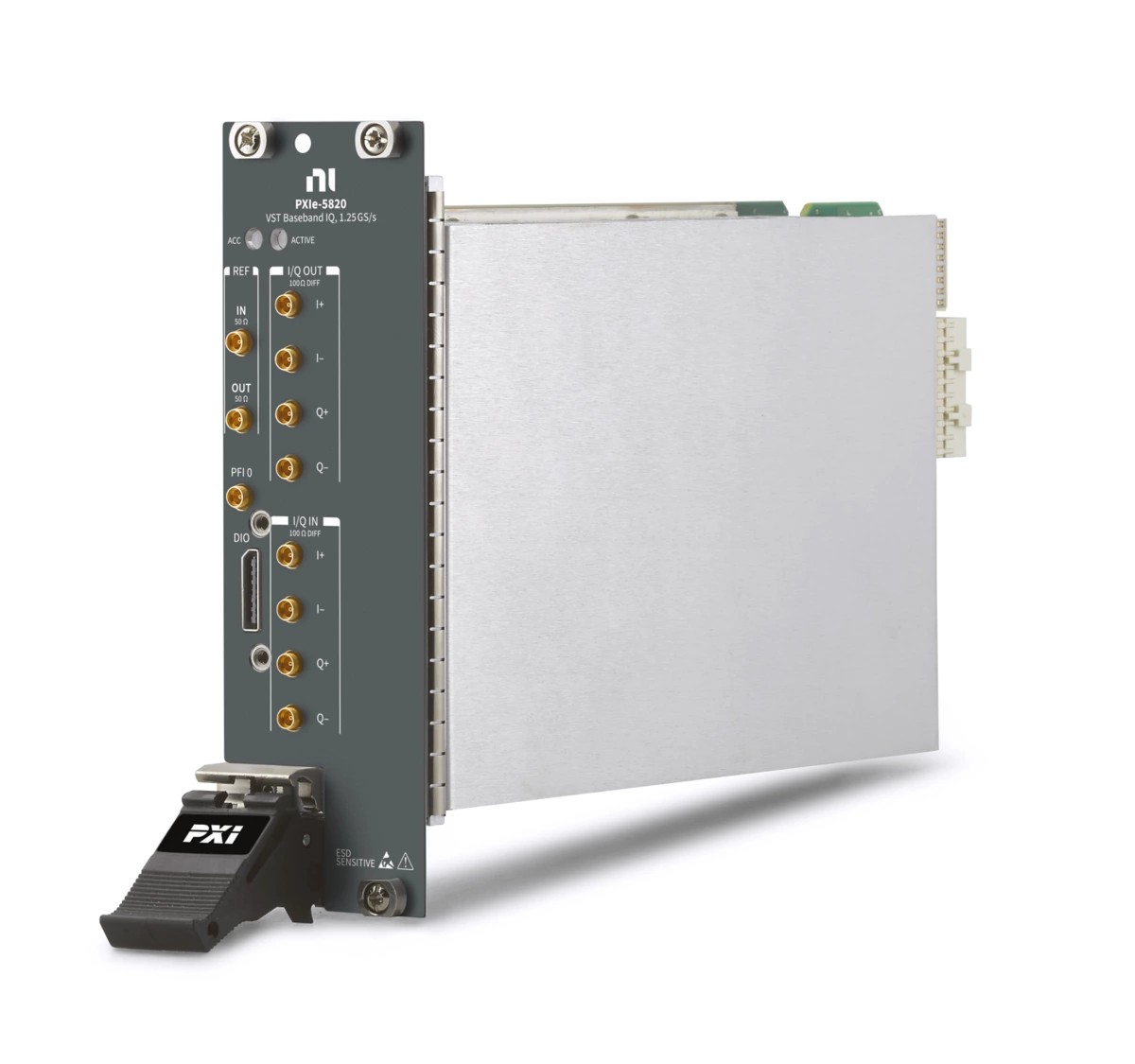

The PXIe-5820 is the baseband model of the second-generation vector signal transceiver (VST) with 1 GHz of complex I/Q bandwidth. It combines a wideband I/Q digitizer, wideband I/Q arbitrary waveform generator, and high-performance user-programmable FPGA in a single 2-slot PXI Express module. You can use the VST for a variety of applications including baseband I/Q test of wireless and cellular chipsets; envelope tracking of digitally predistorted waveforms for power amplifiers; and the generation and analysis of new wireless standards such as 5G, 802.11ax, and LTE-Advanced Pro.
Model & Varian
| Model | Part Number | RF Analyzer Frequency Range | RF Analyzer Instantaneous Bandwidth | Generator Tuning Time (Typical) | Number of Input Channels |
|---|---|---|---|---|---|
| PXIe-5820 | 789179-01 | 0 MHz to 500 MHz | 1 GHz | 1.2 ms | 1 |
| PXIe-5820 | 789180-01 | — | — | — | 0 |
| PXIe-5820 | 783967-01 | 0 MHz to 500 MHz | 1 GHz | 0.38 ms | 1 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 789179-01 |
|---|---|
| RF Generator Frequency Range | 0 MHz to 500 MHz |
| RF Generator Instantaneous Bandwidth | 1 GHz |
| RF Analyzer Frequency Range | 0 MHz to 500 MHz |
| RF Analyzer Instantaneous Bandwidth | 1 GHz |
| Generator Tuning Time (Typical) | 1.2 ms |
| I/O Type | Baseband |
| Number of Output Channels | 1 |
| Number of Input Channels | 1 |
| Maximum Output Power | 15 dBm |
| Bus Connection | PXI Express |
| Module Width | 2 |
| Supports Peer To Peer Streaming | Yes |
| Analyzer Tuning Time (Typical) | 0.38 ms |
| Product Description | PXIe-5820, 500MHz VST, 1GHz I/Q BW, Baseband PXI Vector Signal Transceiver, NO EXT |
