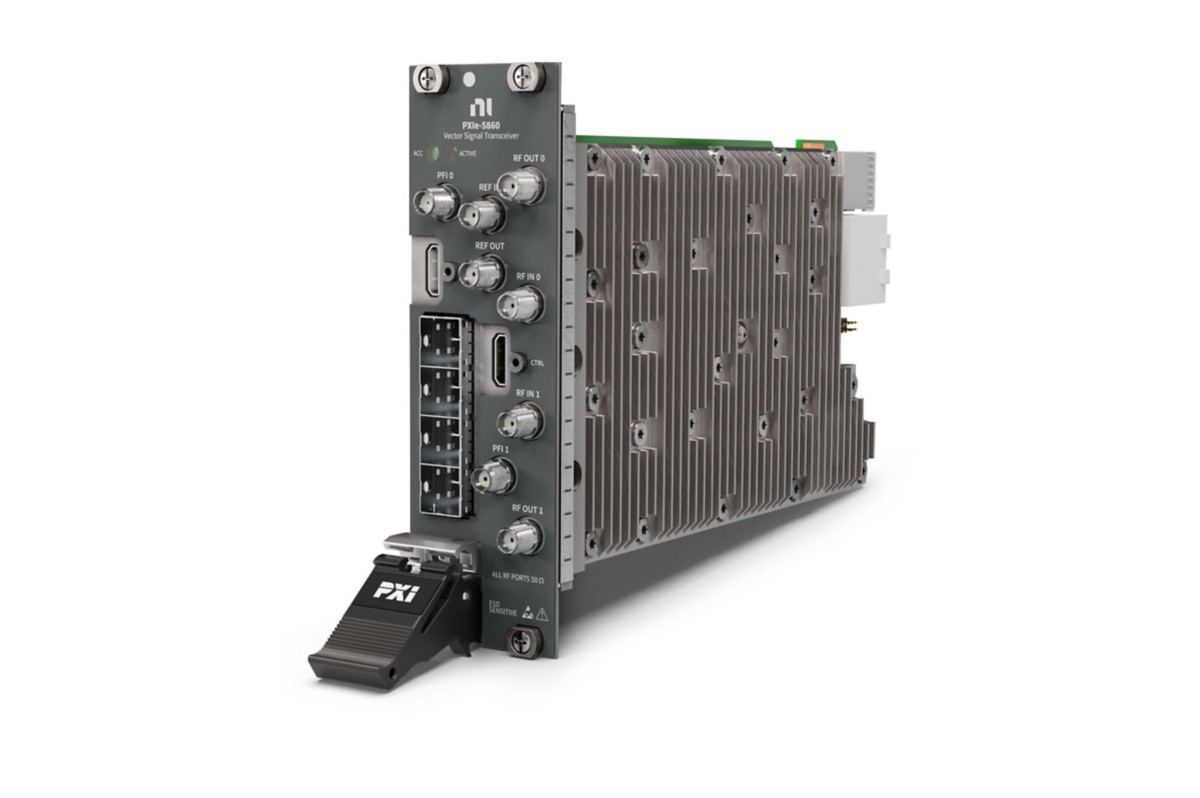

NI PXIe-5860 VST, 8.5 GHz, 2 Channels
PXIe, 8.5 GHz, 1 GHz Bandwidth, Dual-Channel RF PXI Vector Signal Transceiver
The PXIe-5860 is a dual-channel 8.5 GHz PXI Vector Signal Transceiver (VST) with 1 GHz of instantaneous bandwidth. This VST combines two vector signal generators and two vector signal analyzers into a single two-slot PXI Express instrument. Additionally, the PXIe-5860 provides the high density, fast measurement speed, and small form factor of a production test box with the flexibility and high performance of R&D-grade box instruments. You can use the VST to perform error vector magnitude (EVM) test for cellular and wireless standards such as Wi-Fi 7 and 5G NR. With the channel density, frequency coverage, and bandwidth availability of the PXIe-5860, you also can perform multisite and multichannel test for a wide range of semiconductor and electronics production applications.
Model & Varian
| Model | Part Number | Number of Output Channels | Number of Input Channels | Product Description |
|---|---|---|---|---|
| PXIe-5860 | 789449-01 | 2 | 2 | NI PXIe-5860 VST, 8.5 GHz, 2 Channels |
| PXIe-5860 | 790790-01 | 1 | 1 | PXIe-5860, 8.5GHz, 1GHz BW, Single-Channel PXI Vector Signal Transceiver |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Part Number | 789449-01 |
|---|---|
| RF Generator Frequency Range | 50 MHz to 8.5 GHz |
| RF Generator Instantaneous Bandwidth | 1 GHz |
| RF Analyzer Frequency Range | 50 MHz to 8.5 GHz |
| RF Analyzer Instantaneous Bandwidth | 1 GHz |
| Generator Tuning Time (Typical) | 150 µs |
| I/O Type | RF |
| Number of Output Channels | 2 |
| Number of Input Channels | 2 |
| Maximum Output Power | 23 dBm |
| Bus Connection | PXI Express |
| Module Width | 2 |
| Supports Peer To Peer Streaming | Yes |
| Analyzer Tuning Time (Typical) | 150 µs |
| Product Description | NI PXIe-5860 VST, 8.5 GHz, 2 Channels |
