Gambaran Umum

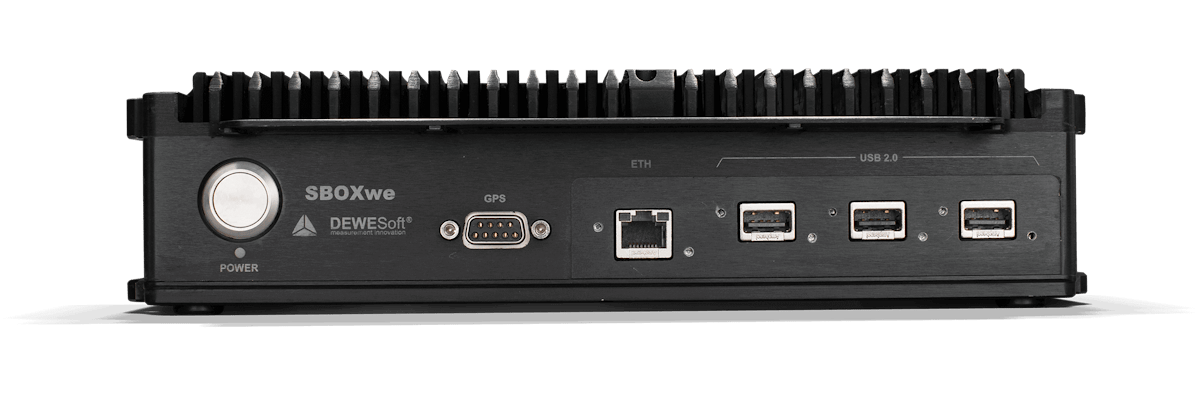

Extremelyrugged data logger and powerful data processing computerwithIP67degree of protection and wide temperature rating of-40 to +50 °C. SBOX waterproof is a perfect companion to the SIRIUS waterproof data acquisition systems.

High Processing Power and Performance

With the fast multi-core Intel Core i3 or optional Core i7 processor running at1.7 GHz with 3MB L1 memoryand8GB RAM, SBOXw delivers more than enough processing power for all your real-time data visualization and processing needs.

Highly optimized Dewesoft X DAQ software will take maximum advantage of the latest Intel CPU technologies built into SBOX waterproof.SBOX waterproof will have no problem running visually rich and fluent graphics, smooth workflows, and offer some advanced real-time mathematics on your data.

Reliable SSD Data Logging

This unit includes high performance and a highly reliable256 GB SSD data storage unit. With a typical180 MB/s writerate, there is enough capacity to store hundreds of channels at high speed including high-speed video.

A built-in SSD hard drive can withstand very high shocks and vibrations (up to 100G RMS) so you can be always sure that your data is safe no matter the testing conditions and harsh environment.

Endless Connectivity

SBOX waterproof includes all today’s standard connectivity interfaces. Five USB 2.0 ports are available for connecting peripheral devices or up to five USB data acquisition systems like SIRIUS waterproof or standard SIRIUS DAQ slices.

For the network connectivity, SBOX waterproof includes two gigabit LAN interfaces (GLAN) and one WiFi adapter for wireless LAN.

Additional full-duplexEtherCAT slave portserves as the direct expansion of our EtherCAT DAQ devices like KRYPTON DAQ modules or SIRIUS waterproof slices running on EtherCAT. EtherCAT DAQ devices can be daisy-chained and distributed directly out of the SBOX waterproof to form a standalone data acquisition system. Only one cable is required from the SBOX waterproof to provide data bus, power, and synchronisation to all DAQ modules.

Integrated GNSS positioning with RTK correction

SBOX computers can optionally be equipped with a 10 Hz or 100 Hz GNSS receiver for precise position measurement applications. GNSS receivers can optionally also be configured to support RTK correction (Real-Time Kinematics).

GNSS receiver option will transform your data acquisition system and makes it ideal for precise position-based test and measurement applications. The RTK correction option will improve the positioning accuracy down to 1 cm.

SBOX with GNSS receiver will transform the data acquisition system into a powerful automotive data logger for advanced position-based test and measurement applications such as:

• Brake testing

• ADAS testing

• Pass-by-noise

• Vehicle dynamics

• Road load data

• and others.

Ultra Rugged Data Acquisition Systems

SBOX waterproof was designed to work hand in hand with the ultra-ruggedSIRIUS waterproof data acquisition systems. The two combined form a unique, ultra-rugged, standalone data acquisition system for testing in the harshest environments.

Both devices work together like magic. SIRIUS waterproof modules offer high dynamic amplifiers for IEPE, voltage and strain gage sensors. Additionally, you can use our DSI adapters for other types of signals such as RTD, PTx, thermocouple, charge, LVDT, current, and more.

Included award-winning data acquisition software is also known to be the best in class. All these factors make ourrugged instrument line the best data acquisition solution for testing in harsh and extreme environments.
