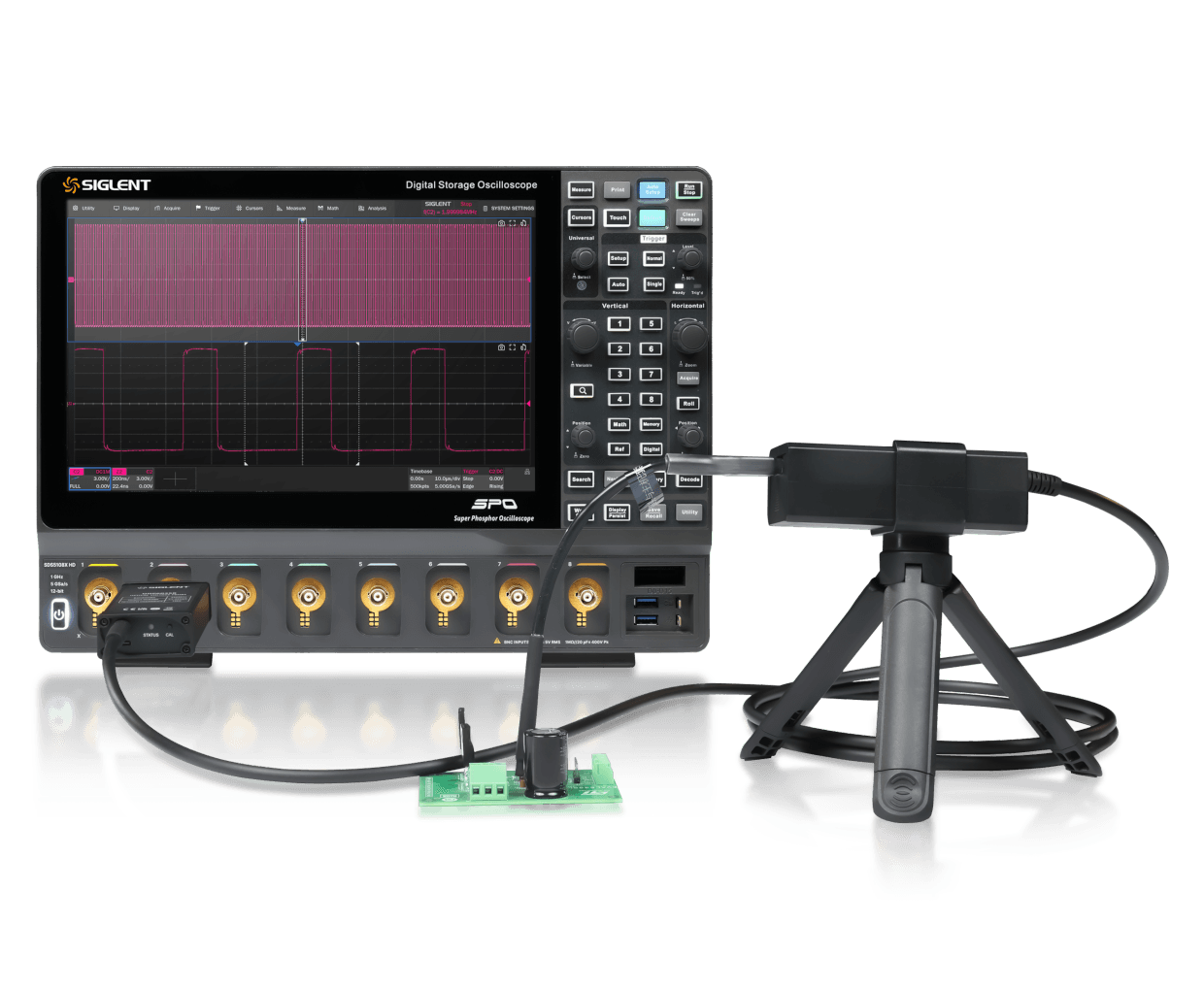

Siglent ODP6000B High Voltage Differential Probe 500 MHz to 1 GHz | Probe Diferensial Tegangan Tinggi
ODP6000B series optical isolation voltage probes have a bandwidth of 500MHz and 1GHz, and adopt advanced optical fiber transmission technology.
Available models include ODP6050B, ODP6100B.
ODP6000B series optical isolation voltage probes have a bandwidth of 500MHz and 1GHz, and adopt advanced optical fiber transmission technology. Through electrical-optical-electrical conversion, complete electrical isolation of signal input and output is realized, with ultra-high common mode rejection ratio. It can provide a reliable solution for the testing of high voltage floating ground signals, third generation semiconductor power devices and new energy inverters.
Key Features
- Bandwidth:500MHz，1GHz
- DC accuracy:≤±1%
- Voltage Measurement Range:2.5V ~ 2500V
- Isolation voltage:±60kV
- CMRR:180 dB（DC-10 MHz）
Model & Varian
| Model | Bandwidth | DC Accuracy | CMRR | Rise Time | Measurement Range | Isolation Voltage |
|---|---|---|---|---|---|---|
| ODP6050B | 500 MHz | ≤±1% | 180 dB | 0.7ns | 2.5V ~ 2500V | ±60 kV |
| ODP6100B | 1 GHz | ≤±1% | 180 dB | 0.45ns | 2.5V ~ 2500V | ±60 kV |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | ODP6050B, ODP6100B |
|---|---|
| Bandwidth | 500 MHz; 1 GHz |
| DC Accuracy | ≤±1% |
| CMRR | 180 dB |
| Rise Time | 0.7ns; 0.45ns |
| Measurement Range | 2.5V ~ 2500V |
| Isolation Voltage | ±60 kV |
