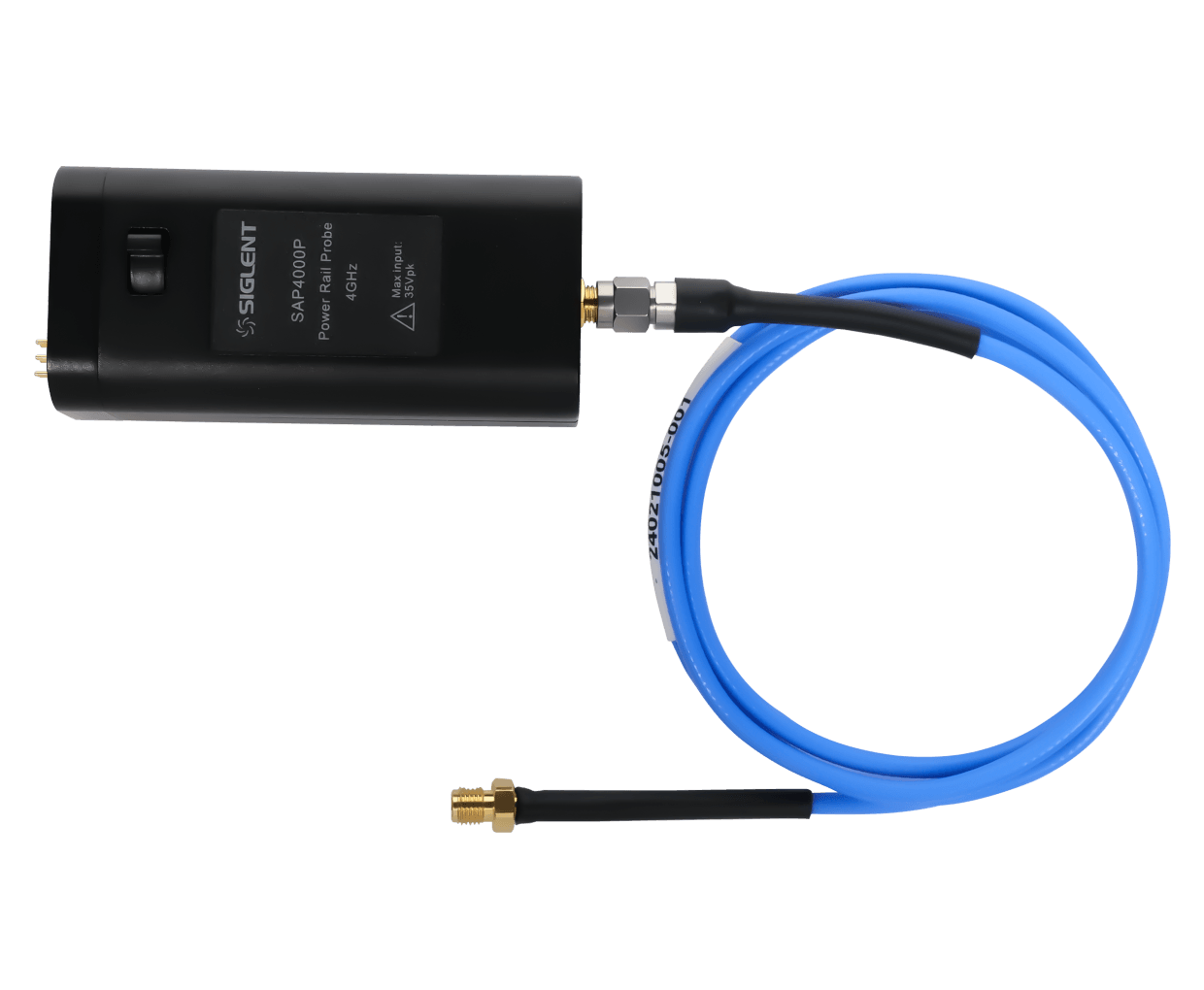

Siglent SAP4000P Active Probe 4 GHz | Probe Aktif
SIGLENT’s SAP4000P power rail probe has the characteristics of high bandwidth, low load effect and large voltage offset range, and can be widely used to detect high-frequency…
SIGLENT’s SAP4000P power rail probe has the characteristics of high bandwidth, low load effect and large voltage offset range, and can be widely used to detect high-frequency noise sources on power rails by using SAPBus interface.
Key Features
- Bandwidth:4 GHz
- Low Frequency Input Resistance:50 kΩ
- High Frequency Input Resistance:50 Ω
- Offset Voltage Range:±24 V
- Input Dynamic Range:±600 mV
- Interface:SAPBus
Spesifikasi
| Bandwidth | 4 GHz |
|---|---|
| Input Dynamic Range | ±600 mV |
| Offset Voltage Range | ±24 V |
| Low Frequency Input Resistance | 50 kΩ |
| Attenuation Rate(DC) | 1.1 |
| Interface | SAPBus |
