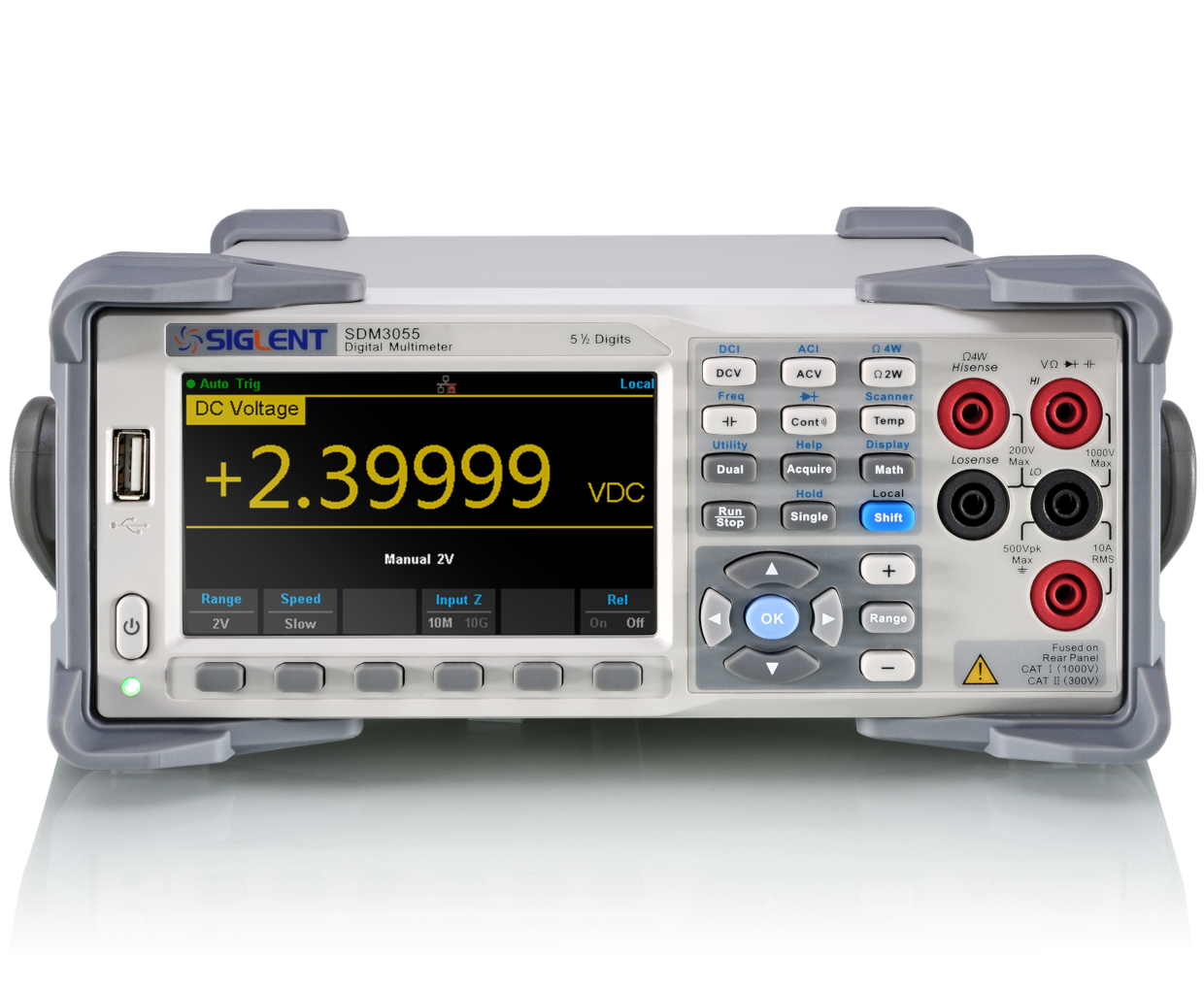

Siglent SDM3055 Digital Multimeter 5½ Digit | Multimeter Presisi
As a cost-effective choice of SIGLENT, SDM3055 series provides 5-bit accuracy, which is suitable for daily measurement and general scientific research needs.
As a cost-effective choice of SIGLENT, SDM3055 series provides 5-bit accuracy, which is suitable for daily measurement and general scientific research needs. Although the sampling rate of the basic version is low, its stability and reliability are widely recognized. This series supports data storage and backup, which is convenient for users to manage data. In addition, its USB interface and standard SCPI remote control command enable the instrument to be easily integrated into the automatic test system and improve the test efficiency.
Key Features
- Real 5½ digits readings resolution ( 240, 000 counts )
- True-RMS AC Voltage and AC Current measuring
- Interface:USB Device，USB Host，LAN，GPIB(Optional)
- 1 Gb Nand flash size, Mass storage configuration files and data files
- 4.3” TFT-LCD, 480*272 display
Spesifikasi
| DC Voltage measurement | 200 mV ，2 V，20 V，200 V，1000 V |
|---|---|
| DC Current measurement | 200 μA，2 mA，20 mA，200 mA，2A，10A |
| AC Voltage measurement | True-RMS，200 mV，2 V，20 V，200 V，750 V |
| True-RMS，200 mV，2 V，20 V，200 V，750 V | AC Current measurement |
| AC Current measurement | True-RMS，20 mA，200 mA，2 A，10 A |
| True-RMS，20 mA，200 mA，2 A，10 A | 2/4-Wire Resistance |
| Capacitance Range | 2 nF，20 nF，200 nF，2 μF，20 μF，200 μF，1000 μF |
| Continuity Test | Range is fxed at 2 kΩ |
| Range is fxed at 2 kΩ | Diode Test |
| Diode Test | Adjustable range is 0 ~ 4 V |
| Adjustable range is 0 ~ 4 V | Period Measurement |
| Period Measurement | 1 μs~0.05 s |
| Temperature | Support for TC and RTD sensor |
| Support for TC and RTD sensor | Math Functions |
| Math Functions | Max, Min, Average, Standard Deviation,dBm/dB,Relative Measurement, Pass/Fail Histogram, TrendChat |
| Display | 4.3” TFT-LCD, 480*272 display |
| Standard Interface | USB Device，USB Host，LAN |
| USB Device，USB Host，LAN | Optional Interface |
| Optional Interface | USB-GPIB |
| USB-GPIB | SC1016 Max Input AC Voltage |
| SC1016 Max Input AC Voltage | 125V rms or 175V peak, 100kHz，0.3 A switched, 125VA (resistive load) |
