Siglent

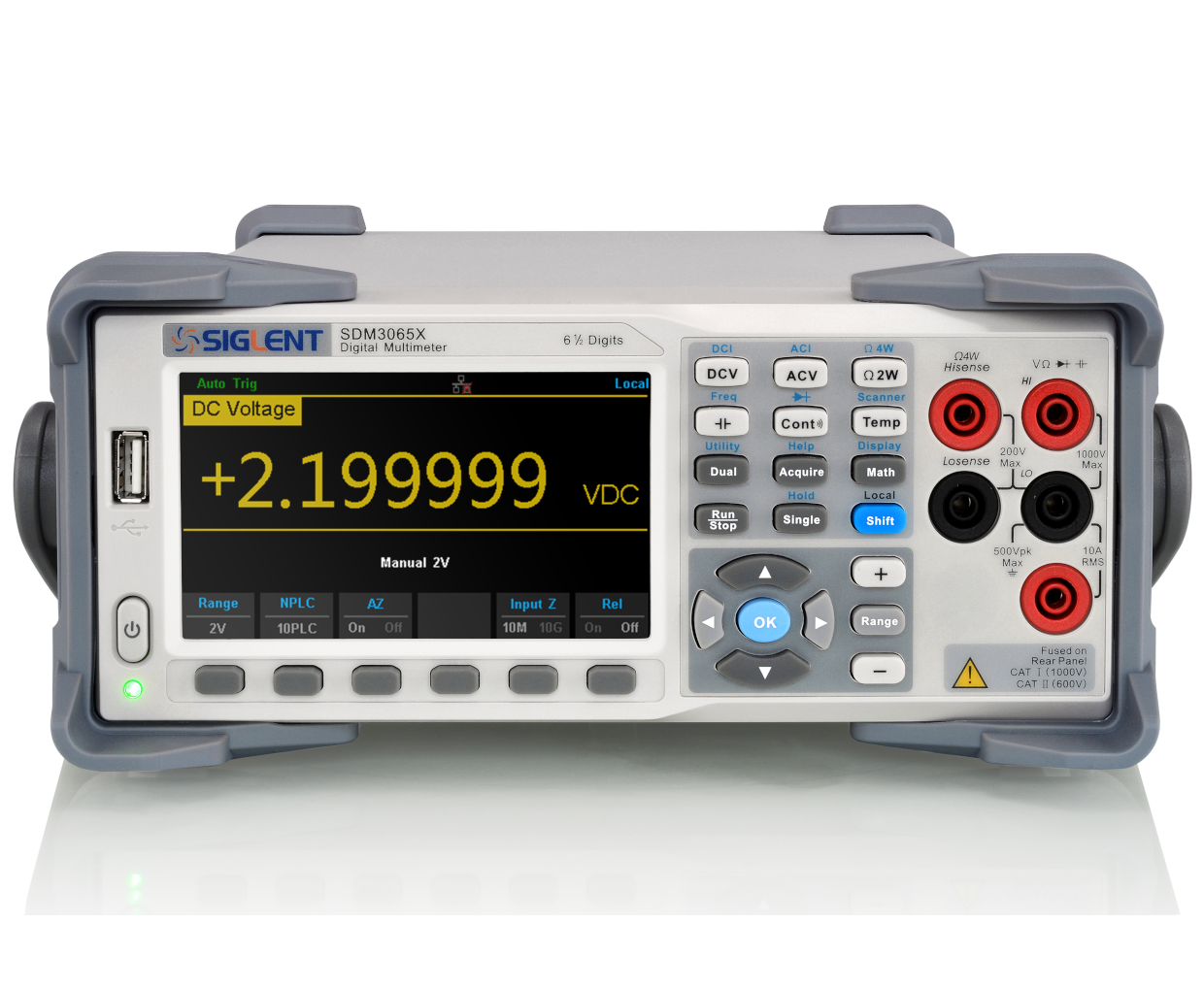

Siglent SDM3065X Digital Multimeter 6½ Digit | Multimeter Presisi
SDM3065X series digital multimeters are famous for their 6-bit high precision and high sampling rate of 10,000 times/second, which meet a variety of precision measurement…
Available models include SDM3065X-SC, SDM3065X.
SDM3065X series digital multimeters are famous for their 6-bit high precision and high sampling rate of 10,000 times/second, which meet a variety of precision measurement requirements. It also has data visualization function, supports multi-channel scanning card measurement, and is convenient for application in complex environment. 1Gb Nand Flash is standard, and data can be imported and exported through VXI-11, USBTMC and other means to improve work efficiency. In addition, its USB-GPIB option expands the interface function, making the instrument more flexible and easy to use.
Key Features
- Real 6½ digits readings resolution (2,200,000 counts)
- 1 Gb Nand flash size, Mass storage configuration files and data files
- Standard interfaces: USB Device, USB Host, LAN (Optional Accessories: USB-GPIB Adapter)
- True-RMS AC Voltage and AC Current measuring
- 4.3” TFT-LCD, 480*272
Model & Varian
| Model | Reading Resolution | DCV Basic Accuracy | Max Reading Rate | NPLC |
|---|---|---|---|---|
| SDM3065X-SC | 6½ (2,200,000 count) | 35PPM | 10,000 rdgs/s | 0.005~100 |
| SDM3065X | 6½ (2,200,000 count) | 35PPM | 10,000 rdgs/s | 0.005~100 |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SDM3065X-SC, SDM3065X |
|---|---|
| Reading Resolution | 6½ (2,200,000 count) |
| DCV Basic Accuracy | 35PPM |
| Max Reading Rate | 10,000 rdgs/s |
| NPLC | 0.005~100 |
