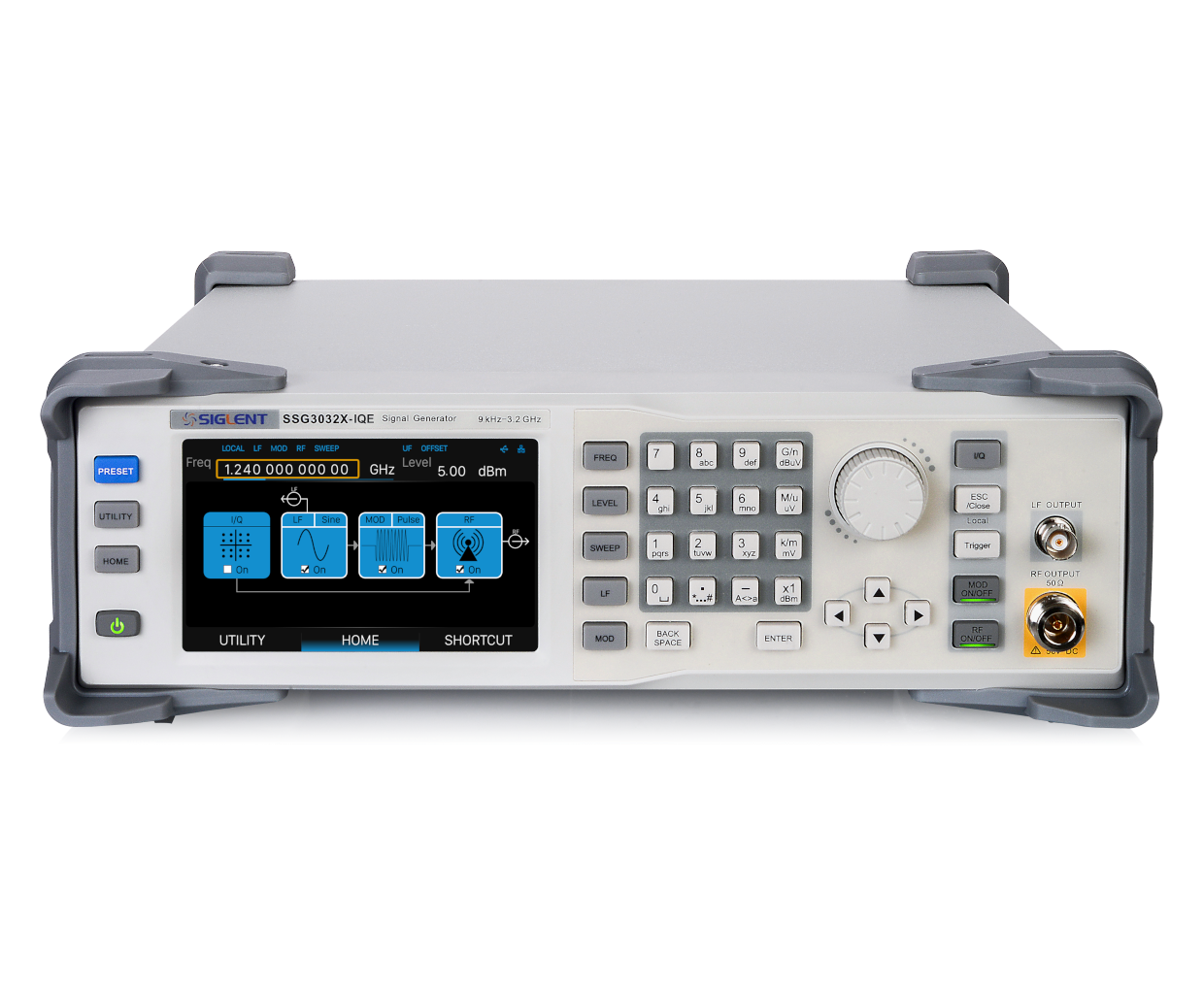

Siglent SSG3000X-IQE RF Signal Generator 9 kHz to 3.2 GHz | Generator Sinyal RF
SIGLENT’S SSG3000X RF Signal Generators have a frequency range of 9 kHz to 2.1 GHz/3.2 GHz.
Available models include SSG3032X-IQE, SSG3021X-IQE.
SIGLENT’S SSG3000X RF Signal Generators have a frequency range of 9 kHz to 2.1 GHz/3.2 GHz. They provide normal analog modulation such as AM, FM, and PM. They also provide pulse modulation and pulse train generator. In addition, when used with baseband generator such as the SDG6000X, they can generate IQ modulated signals. With their high accuracy and pure outputs, SSG3000X signal genrators are the right choice for R&D, education, and manufacturing applications.
Key Features
- Frequency up to 2.1 GHz/3.2 GHz
- Level setting range:+20 dBm~-110 dBm
- Standard AM & FM & PM & pulse modulation
- External IQ modulation with SDG6000X as the baseband IQ signal
- 5 inch TFT capacitive touch screen
Model & Varian
| Model | Frequency Range | Frequency Resolution | I/Q Modulation | Max output power | Phase Noise | I/Q Bandwidth |
|---|---|---|---|---|---|---|
| SSG3032X-IQE | 9 kHz ~ 3.2 GHz | 0.01 Hz | Included | +20 dBm | < -110 dBc/Hz@1 GHz，20 kHz offset (typ.) | 100 MHz |
| SSG3021X-IQE | 9 kHz ~ 2.1 GHz | 0.01 Hz | Included | +20 dBm | < -110 dBc/Hz@1 GHz，20 kHz offset (typ.) | 100 MHz |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SSG3032X-IQE, SSG3021X-IQE |
|---|---|
| Frequency Range | 9 kHz ~ 3.2 GHz; 9 kHz ~ 2.1 GHz |
| Frequency Resolution | 0.01 Hz |
| I/Q Modulation | Included |
| Max output power | +20 dBm |
| Phase Noise | < -110 dBc/Hz@1 GHz，20 kHz offset (typ.) |
| I/Q Bandwidth | 100 MHz |
