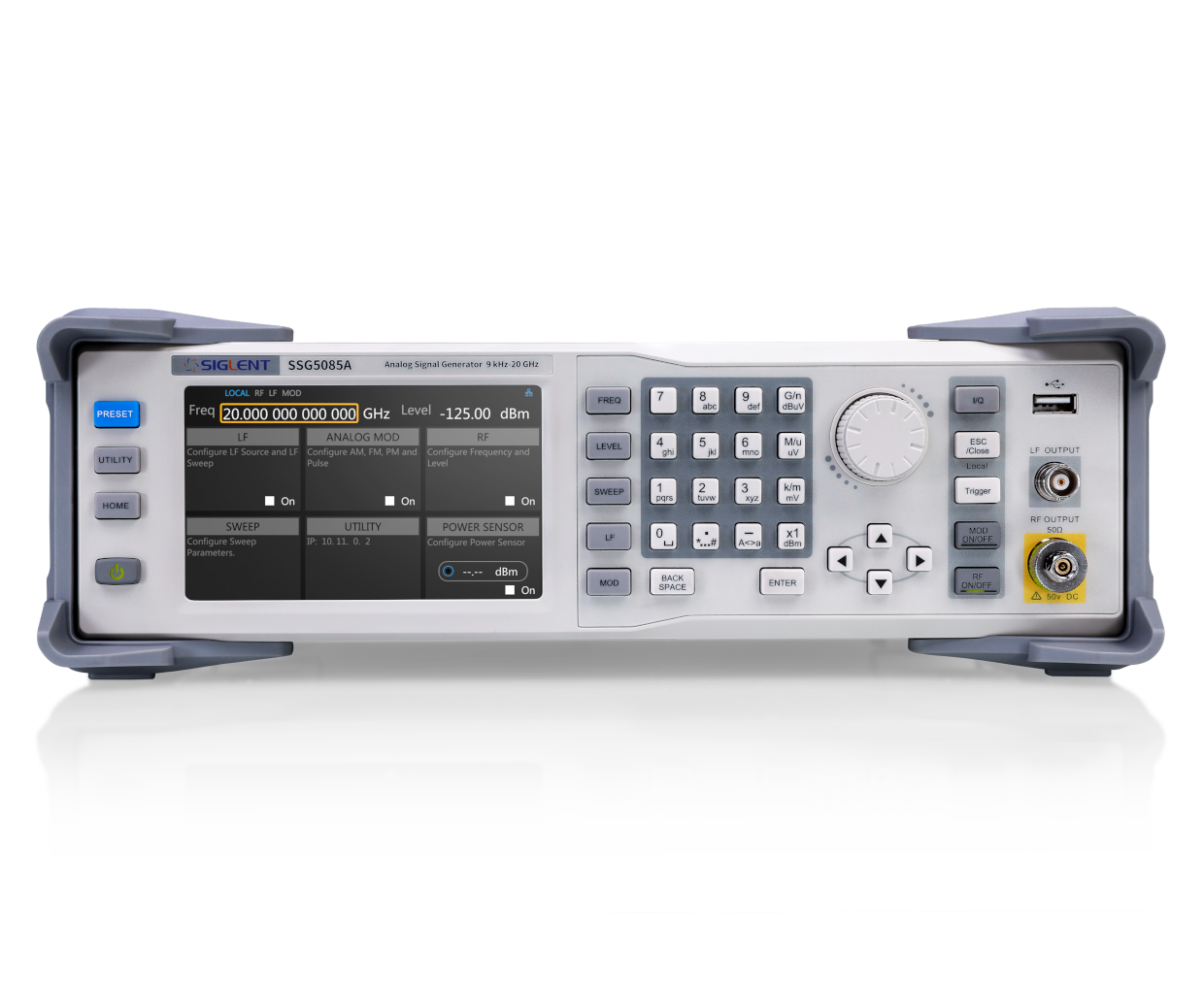

Siglent SSG5000A RF Signal Generator 9 kHz to 20 GHz | Generator Sinyal RF
The SSG5083A/SSG5085A microwave signal generators feature output frequency ranges from 9 kHz to 13.6/20 GHz, they support AM & FM & PM modulation, pulse modulation, pulse…
Available models include SSG5083A, SSG5085A.
The SSG5083A/SSG5085A microwave signal generators feature output frequency ranges from 9 kHz to 13.6/20 GHz, they support AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions. The SSG5000As include an OCXO reference hardware module that ensures high-precision and high stability signal output. It is designed for communication and other fields. And it is suitable for various application scenarios such as R&D and production.
Key Features
- Frequency up to 13.6 GHz / 20 GHz
- Level setting range: -130 dBm ~ 25 dBm
- Level error ≤ 0.7 dB (typ.)
- Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
- Single pulse, double pulse and pulse train generator (option)
- 5-inch TFT capacitive touch screen, mouse, and keyboard support
Model & Varian
| Model | Frequency Range | Frequency Resolution | I/Q Modulation | Max output power | Phase Noise |
|---|---|---|---|---|---|
| SSG5083A | 9 kHz~13.6 GHz | 0.001 Hz | Not Supported | +23 dBm | < -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.) |
| SSG5085A | 9 kHz~20 GHz | 0.001 Hz | Not Supported | +23 dBm | < -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.) |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Model Variants | SSG5083A, SSG5085A |
|---|---|
| Frequency Range | 9 kHz~13.6 GHz; 9 kHz~20 GHz |
| Frequency Resolution | 0.001 Hz |
| I/Q Modulation | Not Supported |
| Max output power | +23 dBm |
| Phase Noise | < -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.) |
