Gambaran Umum

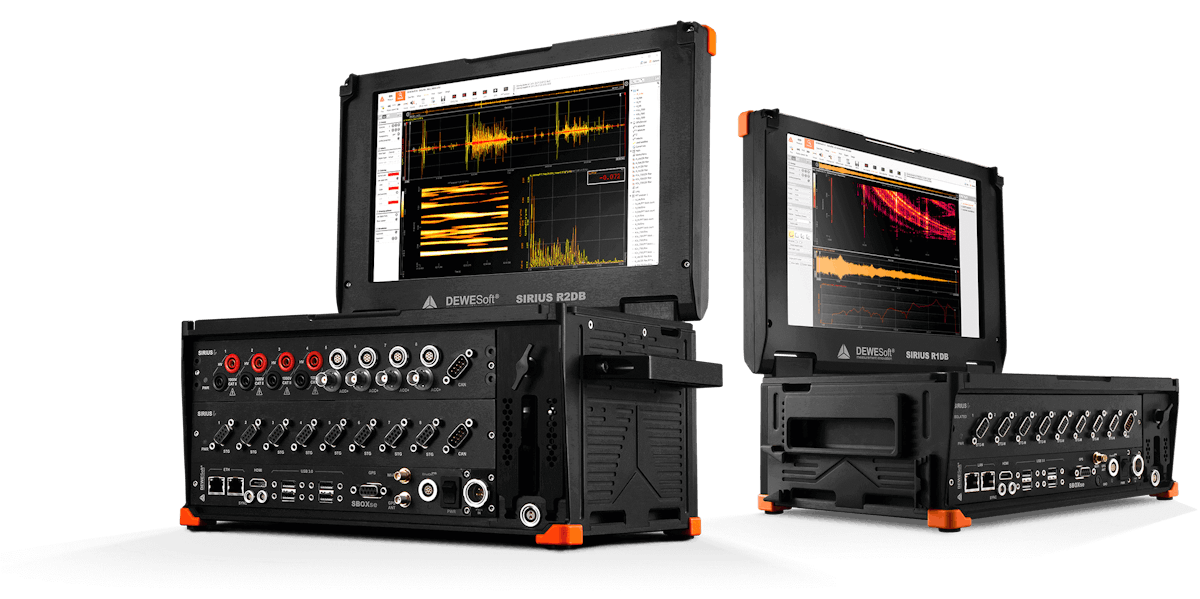

SIRIUS® R1DB, R2DB, and R8DB are compact, high-dynamic portable power analyzers designed for maximum portability and efficiency. These systems include direct high voltage and current input amplifiers, a built-in data logger, a powerful data processing computer, a multi-touch display, and internal batteries.

Our portable power analyzers are versatile tools for any electrical power or power quality measurement, thanks to additional amplifiers and interfaces for measuring vibration, strain, temperature, torque, CAN, XCP, and other data sources.

Overview of Dewesoft portable power analyzer

Dewesoft portable power analyzers are fully integrated data acquisition and display instruments with secure built-in data storage, batteries for fully autonomous operation, and modern network connectivity.

Powerful signal conditioning and signal processing capabilities ensure that our portable power analyzers are suitable for field, industrial, or lab electrical test and measurement applications. The high-galvanic isolation of the analog amplifiers and power supply circuits protects the instruments from ground loops and maintains the highest signal quality.

With easy integration of any type of current sensors and an integrated sensor power supply, the days of complicated sensor hookups and configurations are gone.

In summary, Dewesoft portable power analyzers are high-accuracy instruments offering 0.03% measurement accuracy on both voltage and current measurements, with high sampling rates and high bandwidth capability.

SIRIUS® R1DB: Portable 4-phase power analyzer

The SIRIUS® R1DB is the smallest all-in-one portable power analyzer in our lineup. Its compact design includes a built-in multi-touch LED screen, a powerful data processing CPU, an SSD data logger, and internal hot-swappable batteries for complete autonomous operation.

SIRIUS® R1DB hardware features:

• Up to 4-phase measurement

• Up to 4 high-voltage amplifiers with direct ±2000 V input (CAT II 1000 V, CAT III 600 V)

• Up to 4 current input amplifiers

• One high-speed CAN bus and CAN FD port

• Up to 4 counter/encoder inputs

• Up to 12 digital inputs

• High resolution, multi-touch LED display

• Integrated CPU

• Up to 1 TB integrated SSD storage

• Integrated keyboard and mouse

See full SIRIUS® R1DB technical specifications.

SIRIUS® R2DB: Portable 8-phase power analyzer

The SIRIUS® R2DB is the bigger brother to the SIRIUS® R1DB. It shares the same compact all-in-one design but offers double the input channels. It also includes the same built-in multi-touch LED screen, powerful data processing CPU, SSD data logger, and internal hot-swappable batteries for complete autonomous operation.

SIRIUS® R2DB hardware features:

• Up to 8-phase measurement

• Up to 8 high-voltage amplifiers with direct ±2000 V input (CAT II 1000 V, CAT III 600 V)

• Up to 8 current input amplifiers

• Two high-speed CAN bus and CAN FD port

• Up to 8 counter/encoder inputs

• Up to 24 digital inputs

• High resolution, multi-touch LED display

• Integrated CPU

• Up to 1 TB integrated SSD storage

• Integrated keyboard and mouse

See full SIRIUS® R2DB technical specifications.

SIRIUS® R8DB: High-channel portable power analyzer

The SIRIUS® R8DB is the biggest product in our all-in-one portable power analyzer line. It can measure up to 32-phases and also includes the biggest multi-touch LED screen and most capable data processing CPU, SSD data logger, and internal hot-swappable batteries for complete autonomous operation.

SIRIUS® R8DB hardware features:

• Up to 32-phase measurement

• Up to 32 high-voltage amplifiers with direct ±2000 V input (CAT II 1000 V, CAT III 600 V)

• Up to 32 current input amplifiers

• Eight high-speed CAN bus and CAN FD port

• Up to 32 counter/encoder inputs

• Up to 96 digital inputs

• High resolution, multi-touch LED display

• Integrated CPU

• Up to 1 TB integrated SSD storage

• Integrated keyboard and mouse

See full SIRIUS® R8DB technical specifications.

16-bit SAR ADC with high-speed sampling

Our portable power analyzers feature high-speed (HS) SIRIUS amplifiers equipped with 16-bit SAR ADCs. They offer a high 1 MHz bandwidth and acquisition rates of up to 1 MS/s per channel. These amplifiers are ideal for recording fast transients and applications that require a high sampling rate, such as power analysis.

Amplifiers for direct high-voltage (HV) inputs are available, as well as LV amplifiers for direct current sensor connections. Additionally, all power analyzers can be configured with other available amplifiers for strain gauge, IEPE, and charge signal conditioning, making our portable power analyzers truly multi-functional devices.

Channel-to-channel galvanic isolation

SIRIUS DAQ devices offer high galvanic channel-to-channel and channel-to-ground isolation (±1000 V).The DAQ systems even offer isolated sensor excitation.

With such isolation, we have no problem measuring high voltage potentials and no problem with common-mode voltages. We are also safe with measurements like vibrations, temperatures, or any other measurement where non-isolated sensors are placed next to the high voltage potential against the DAQ system ground.In such cases, a non-isolated DAQ system would burn or at least give faulty wrong results. With SIRIUS it is just one thing less to worry about.

Digital isolation has another big advantage – preserving the frequency bandwidth of the amplifiers. SIRIUS provides “worry-free” measurements, less noise, no ground loops, and the best possible signal quality.

For less demanding measurement and lower-cost applications, SIRIUS DAQs are also available in a differential version where only power supply isolation is offered.

SuperCounters®: precise speed and angle measurement with counter and encoder sensors

Dewesoft data acquisition systems utilize a patented and registered trademark technology calledSuperCounter®.

Counter inputs can measure the RPM and angle of rotating machines. In comparison to standard counters, which only output integer numbers one sample later (e.g. 1, 1, 2, 2, 3, 4), the Dewesoft SuperCounter inputs are able to extract accurate values like 1.37, 1.87, 2.37, etc. fully synchronized for time and amplitude.

This is done by measuring the exact time of the rising edge of the signal with an additional counter. Our SuperCounter inputs work on a 102.4 MHz time base, independent of the current analog sampling rate.

Counter inputs are fully synchronized with analog, CAN bus, and other data sources to enable easy applications like balancing, order tracking, and torsional vibrations.

Bright and high-resolution display

Our portable power analyzers have integrated high-resolution,high-brightness multi-touch WXGA display. The display provides enough resolution for all your visuals and enough visibility even in the harshest environments. The high-quality display allows wide viewing angles.

The displays sizes differ between different power analyzer models:

• SIRIUS® R1DB and R2DB: Multi touch TFT 12.1” with WXGA, 1280 x 800 pixels @ 60Hz

• SIRIUS® R8DB: Multi touch TFT 17” with Full-HD resolution

Included award-winningDewesoftX data acquisition software is optimized for touch-friendly operation. All DewesoftX visual controls and graphs are optimized and offer easy multi-touch gesture-based control.

Battery powered with built-in Li-ion batteries

Our portable power analyzers have built-in Li-Ion batteries, enabling full autonomy without any external power supply. This feature makes the systems truly portable and autonomous.

The batteries are hot-swappable, allowing you to exchange them during measurements without shutting down the system or interrupting your test.

When connected to an external AC power supply, the batteries will automatically charge, and power will be drawn from the connected AC source (included in the box).

Battery capacity:

• SIRIUS® R1DB:144 Wh(2 Li-Ion cells with 72 Wh)

• SIRIUS® R2DB:190 Wh(2 Li-Ion cells with 95 Wh)

• SIRIUS® R8DB: 360 Wh(4 Li-Ion cells with 90 Wh)

Integrated GNSS positioning with RTK correction

The SBOX computer integrated into our portable power analyzer can be equipped with a 10 Hz or 100 Hz GNSS receiver for precise position measurement applications. These GNSS receivers also support RTK (Real-Time Kinematics) correction.

The GNSS receiver option adds position and velocity measurement capabilities to your portable power analyzer, enabling position-based test and measurement applications. The RTK correction option enhances positioning accuracy to within 1 cm.

A power analyzer equipped with GNSS capability is an ideal instrument for on-the-road measurements of all types of electric and hybrid vehicles.

Sensor calibration and accuracy

Voltage and current transducers always have a frequency-dependent amplitude error and phase shift. With Dewesoft’s X unique software calibration technology, amplitude and phase can be corrected for the entire frequency range from DC up to 1 MHz.

All internal curves, such as filter response, are corrected inside the software. The Dewesoft sensor database includes correction curves for a variety of transducers, including iron-core clamps, AC/DC clamps, Rogowski coils, and grid current and voltage transducers.

Various wiring configurations with simple and intuitive setup

The DewesoftX data acquisition software offers a visual selection of different wiring schematics and provides power calculations for all possible connections.

Predefined Power Schematics:

• Direct Current

• Single-Phase

• Two-Phase

• Star Connection

• Delta Connection

• V Connection

• Aron Connection

• Combined Star/Delta Connection

These connections can be measured with or without currents. Thanks to the modular construction of our measurement devices and the multiple synchronized power modules in our software, Dewesoft can also analyze 6, 7, 9, or 12-phase motors.

To learn more about each connection, please look at the Dewesoft Power Analysis free online training or the Dewesoft Power Manual.

Rich visualization

After setting up the power module, you can configure and customize the measurement screen. The most relevant display widgets for electrical power analysis and power quality include the following display widgets:

• Digital Meters: Display various instantaneous values calculated by the power module with unit support. Learn more.

• Recorder and X/Y Recorder: The Dewesoft power analyzer provides visual recorder displays for time-domain data, showing all parameters in individual intervals. The X/Y recorder can generate orbital plots online. Learn more about Recorder and X/Y recorder.

• Scope: Shows waveforms of voltages and currents, including line-to-line (U12, U23, U31) and line-to-earth (U1, U2, U3) voltages. Learn more.

• Vector-Scope: Visualizes the relationships between voltages and currents for up to 3-phase systems. Multiple vectorscopes and individual harmonics can be displayed simultaneously. The “transparent” function allows for direct comparisons of phasors. Learn more.

• Harmonic FFT: Offers a simple and comprehensive analysis of harmonics for voltage, current, power, and reactive power, all synchronized to the fundamental frequency of the signal. Learn more.

• Contour plot: A 2D graphical representation that uses contours or color-coded regions to display 3D data. This visualization technique helps to reveal patterns and relationships in complex datasets, such as efficiency maps for motors, making it easier to understand and analyze the information. Learn more.

Electrical power calculations

DewesoftX data acquisition software automatically records raw voltage and current data while simultaneously calculating and storing all power parameters, including:

• Active Power (P), Reactive Power (Q), Apparent Power (S), Distortion Power (D)

• Cos φ, Power Factor

• P, Q, Cos φ for each harmonic

Efficiency and loss mapping of AC motors and inverters

Electric motor and inverter efficiency analysis aims to enhance motor performance by optimizing the efficiency of the electric input power relative to the mechanical output power. This process can involve using Clarke and Park transformations, which provide a better understanding of the relationship between the input line phase, the induced magnetic field, and the mechanical rotation angle.

All relevant settings for this type of analysis are now consolidated under the new Motor Analysis tab within the Power module. This tab includes:

• Motor analysis setup options

• Transformations and efficiency calculations

• Integration with multiple new stand-alone math modules

The Motor Analysis module utilizes various math modules and widgets, such as:

• Resolver sensor

• 2D/3D mapping

• Contour plot widget

For more detailed information, refer to the following resources:

• Electric motor and inverter testing

• Electric motor analysis manual

Easy power quality analysis

DewesoftX Harmonic FFT software feature enables the visualization of harmonics in:

• voltage,

• current,

• active and reactive power,

• line voltage,

all fully synchronized to the fundamental frequency.

Energy calculation

The Dewesoft Power module also automatically calculates the energy of the measured system. This feature enables the calculation of both positive and negative energy, providing a comprehensive understanding of the system’s performance.

Additionally, the Math module allows users to calculate efficiency, essential for evaluating and optimizing system operations. This capability is particularly beneficial in various applications, such as:

• Recuperation Brake Systems: Analyze the energy recovered during braking to improve system efficiency and performance.

• Battery Testing: Measure energy input and output to assess battery efficiency, capacity, and overall health.

These features make Dewesoft Power Analyzers a versatile and powerful tool for energy calculation and efficiency analysis across different applications.
