CONTEC CPI-DIN01 — DIN Rail Mount Kit for Raspberry Pi card
This product is a mount kit for mounting on a 35mm DIN rail.
Available models include CPI-RAS, CPI-AI-1208LI, CPI-AO-1602LC, CPI-DI-16L, CPI-DIO-0808L, CPI-DIO-0808RL, CPI-DO-16L, CPI-DO-16RL, CPI-RRY-16, CPI-CNT-3201I, CPI-DIN01, CPI-SPA01-2, CPI-SSI-4C.
This product is a mount kit for mounting on a 35mm DIN rail. The product is used to set the Raspberry Pi, and CPI Series onto the 35mm DIN rail.
Key Features
- Simple mounting onto DIN rails. Wall mounting and desktop installation are also supported.
- Color selected specially for Raspberry Pi
- Matte coating that makes scratches less visible
- * Raspberry Pi cards are sold separately.
Model & Varian
| Model | Description |
|---|---|
| CPI-RAS | RAS/RTC Raspberry Pi card |
| CPI-AI-1208LI | Analog input Raspberry Pi card 12-bit 8ch (differential 4ch) voltage input/current input |
| CPI-AO-1602LC | Analog Output Raspberry Pi card 16bit 2ch voltage/current output |
| CPI-DI-16L | Digital input Raspberry Pi card 16ch (isolated 12 - 24VDC) |
| CPI-DIO-0808L | Digital I/O Raspberry Pi card 8ch/8ch (isolated 12 - 24VDC) |
| CPI-DIO-0808RL | Digital I/O Raspberry Pi card 8ch/8ch (negative-common isolated 12 - 24VDC) |
| CPI-DO-16L | Digital output Raspberry Pi card 16ch (isolated 12 - 24VDC) |
| CPI-DO-16RL | Digital output Raspberry Pi card 16ch (negative-common isolated 12 - 24VDC) |
| CPI-RRY-16 | Solid-state relay Raspberry Pi card 16ch (Contacts A isolated - 30VDC) |
| CPI-CNT-3201I | Counter Input Raspberry Pi card 32bit Up-Down Counter 1ch Single-Phase/2-Phase (A/B/Z) |
| CPI-DIN01 | DIN Rail Mount Kit for Raspberry Pi card |
| CPI-SPA01-2 | SPACER SET (x2) for Raspberry Pi 5 |

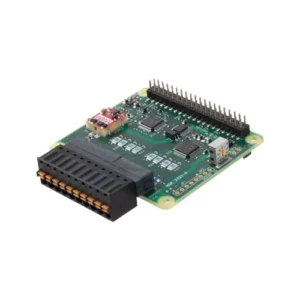

| CPI-SSI-4C | Thermocouple Input Raspberry Pi Expansion Card 4ch |
Geser tabel ke samping untuk melihat semua spesifikasi →
Spesifikasi
| Type | Mounting fixture |
|---|---|
| Compatible Rail | 35mm DIN rail |
| Mounting Options | DIN rail, wall, or desktop |
| Hexagonal Spacer Height | 12.5mm |
| Packing List | L-shaped sheet metal x2; DIN-rail mounting feet x1; Three-point Sems screws x4; Cable-prevention clamps x2; Setup Guide x1 |
