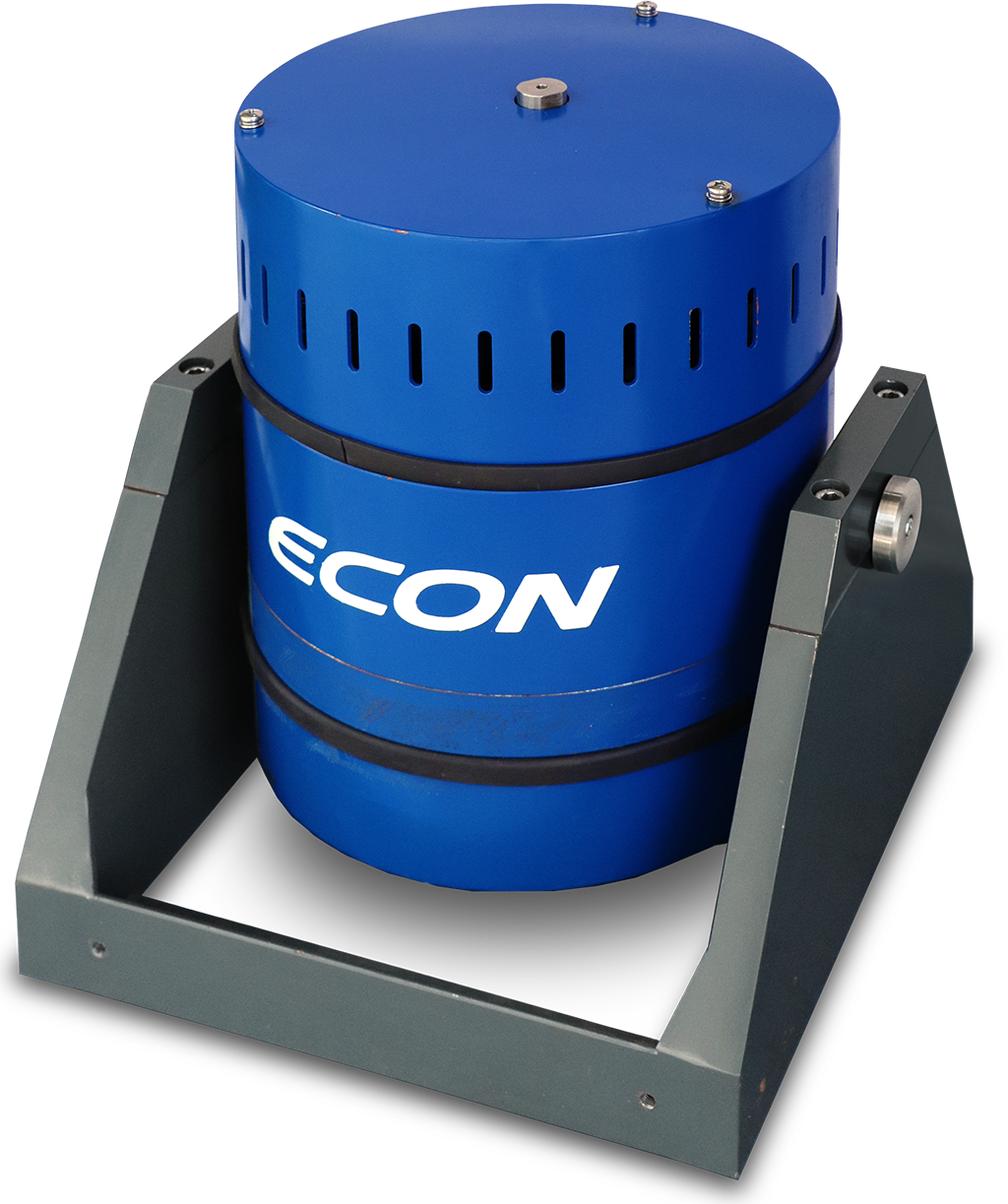

ECON Modal Test System | VE-M series Modal Exciter

What is a modal test system?

Konsultasi via WhatsApp via Email

Modal analysis is an analysis that determines the frequency at which the object itself is likely to vibrate and its vibration shape. Also called eigenvalue analysis. Modal Test combines data collection and analysis. The entire process is sometimes referred to as modal Test and analysis, or experimental modal analysis (EMA).

Features-Exciter

Wide frequency band, small size, large excitation force, strong rigidity
The length of the vibration rod can be adjusted through the movable part through-hole, and the clamp position can also be adjusted, making it easy to connect to the test sample.
Electronic zero position control allows for adjustable axial stiffness, with little need for additional stiffness to the test sample
Stroke length can reach 25.4mm, making it ideal for structural tests that require suspension of various rigid structures and Modal Exciters at low frequencies.

Features-Modal Test System

Supports modal analysis of exciter or hammer excitations
Applicable to many test instruments, ideal for various modal analyzes
Rich trigger functions and adjustable window functions make the acquired data more convenient and accurate
Integrates various signal sources such as sine wave frequency sweep, white noise, and random trigger, making excitation operation easy
Test data compatibility, supports Modal Genius, ME'scope and other modal analysis software

Spesifikasi

Sine Force Peak(N)	1000
Frequency range (Hz)	2〜6.5k
Max. acceleration (m/s²)	600
Max. load (kg)	20
Max. displacement pp (mm)	25.4
Countertop screw dimensions (standard)	M6
Weight (kg)	130
Size (W×D×H) (mm)	472×394×510
Cooling method	Air cooled
Horizontal Shaker	Model
Power Amplifier	Model
Max. output power (VA)	1500
